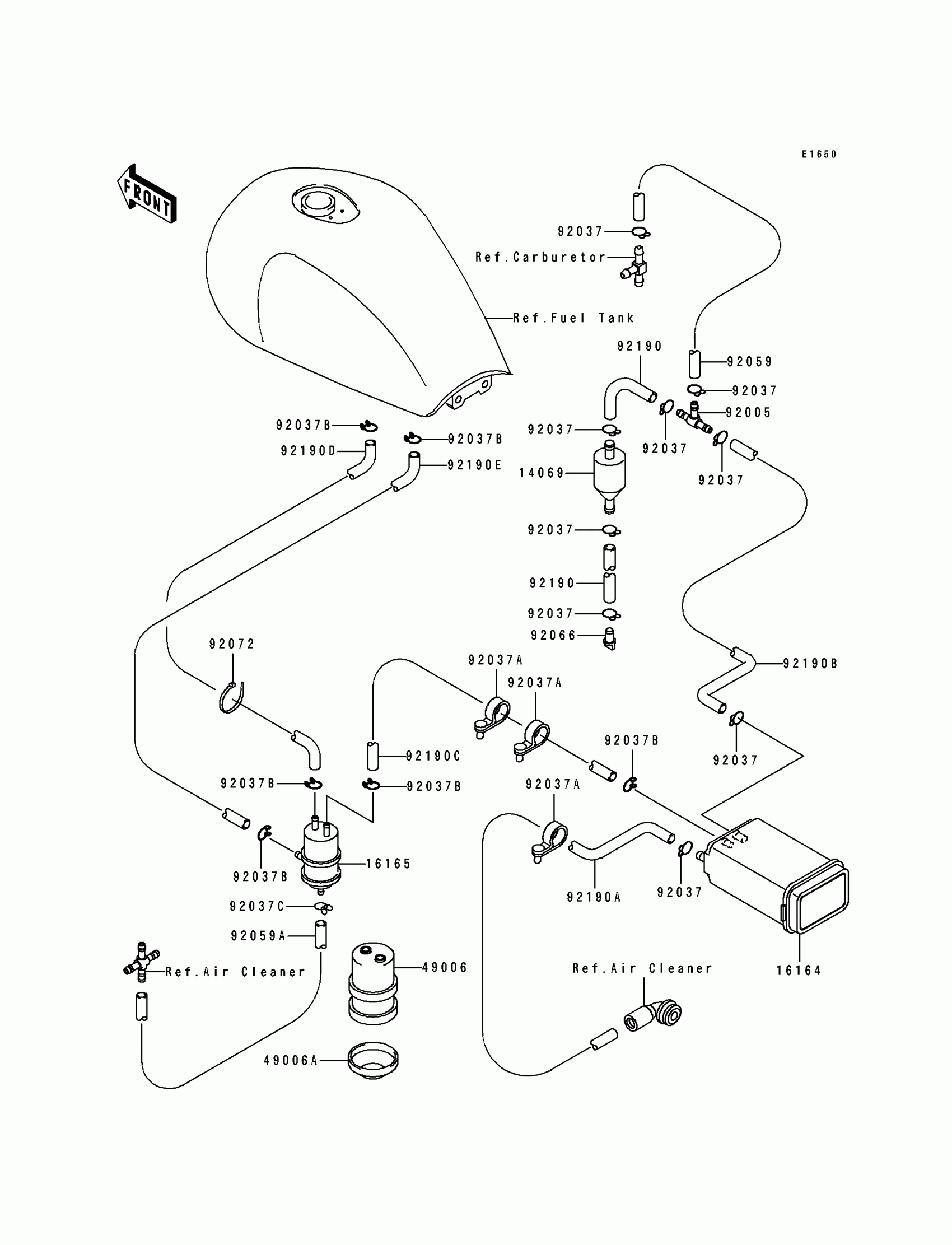

Kawasaki ZR1100 Zephyr Fuel Evaporative System Diagram

Description

Price

14069

BREATHER

14069-1051

$10.19

16164

CANISTER

16164-1064

$145.44

16165

SEPARATOR

16165-1001

$90.01

49006

BOOT

49006-1263

$15.99

49006A

BOOT

49006-1264

Unavailable

92005

FITTING,T-TYPE

92005-1119

$24.61

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,SPEED,L=58

92037-1163

$6.57

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP

92037-1712

$5.00

92059

TUBE,7X12X440,YELLOW

92059-1440

$41.13

92059A

TUBE,4X9X550,WHITE

92059-1760

$19.45

92066

PLUG,DRAIN

92066-1211

$8.51

92072

BAND,L=202

92072-1195

$1.56

92190

TUBE,7X12X110

92190-1242

$12.96

92190A

TUBE,GREEN

92190-1280

$25.08

92190B

TUBE,YELLOW

92190-1282

$17.85

92190C

TUBE,BLUE

92190-1285

$7.33

92190D

TUBE,BLUE

92190-1286

$15.65

92190E

TUBE,RED

92190-1287

$12.65
