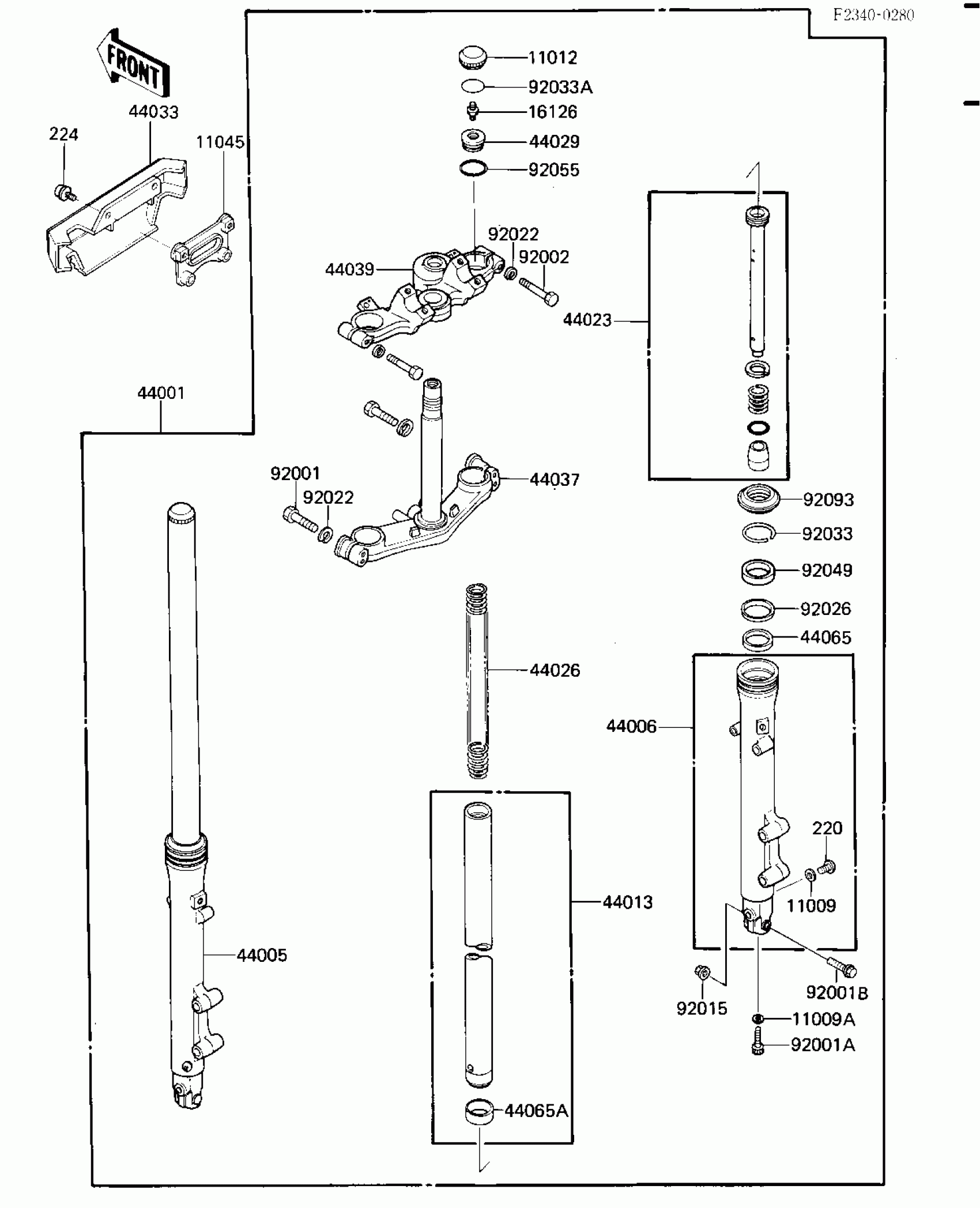

Kawasaki ZL1000 Eliminator FRONT FORK Diagram

#

Description
Price

11009

GASKET,FORK DRAIN PLUG

44045-046

$7.51

11009A

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

11012

CAP,FORK TOP

11012-1473

Unavailable

11045

BRACKET

11045-1156

Unavailable

16126

VALVE,AIR

16126-1105

$39.05

44001

FORK-FRONT

44001-1635

$2,255.34

44005

PIPE-LEFT FORK OUTER

44005-1233

$453.24

44006

PIPE-RIGHT FORK OUTER

44006-1233

$453.24

44013

PIPE-FORK INNER

44013-1232

Unavailable

44023

CYLINDER-COMP-FORK

44023-1055

$81.41

44026

SPRING-FRONT FORK

44026-1342

$78.77

44029

SEAT-FORK SPRING

44029-1120

$49.26

44033

COVER-FORK

44033-1175

$46.31

44037

HOLDER-FORK UNDER

44037-1183

$334.79

44039

HOLDER-FORK UPPER

44039-1143

$274.96

44065

BUSHING-FRONT FORK

44065-1070

$27.10

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1071

$24.97

92001

BOLT,8X40

92001-1063

$9.63

92001A

BOLT,FORK CYLINDER

92001-1464

$6.22

92001B

BOLT,FLANGED,8X50

92001-1486

$11.49

92002

BOLT

92002-1603

$7.98

92015

NUT,FLANGED,8MM

92015-1055

$4.80

92022

WASHER,SPRING,8MM

92022-1703

$3.42

92026

SPACER,FORK

92026-1254

$11.91

92026

RING-SNAP,FORK

92033-1200

$6.63

92033A

RING-SNAP

92033-1201

$5.17

92049

SEAL-OIL,FORK

92049-1230

$25.19

92055

RING-O,FORK SPRING SEAT

92055-1309

$6.15

92093

SEAL,FORK

92093-1197

$24.34

220

SCREW PAN HEAD 4X6

220B0406

$1.67

224

SCREW-PAN-WP-CROS,5X12

224C0512

$3.84
