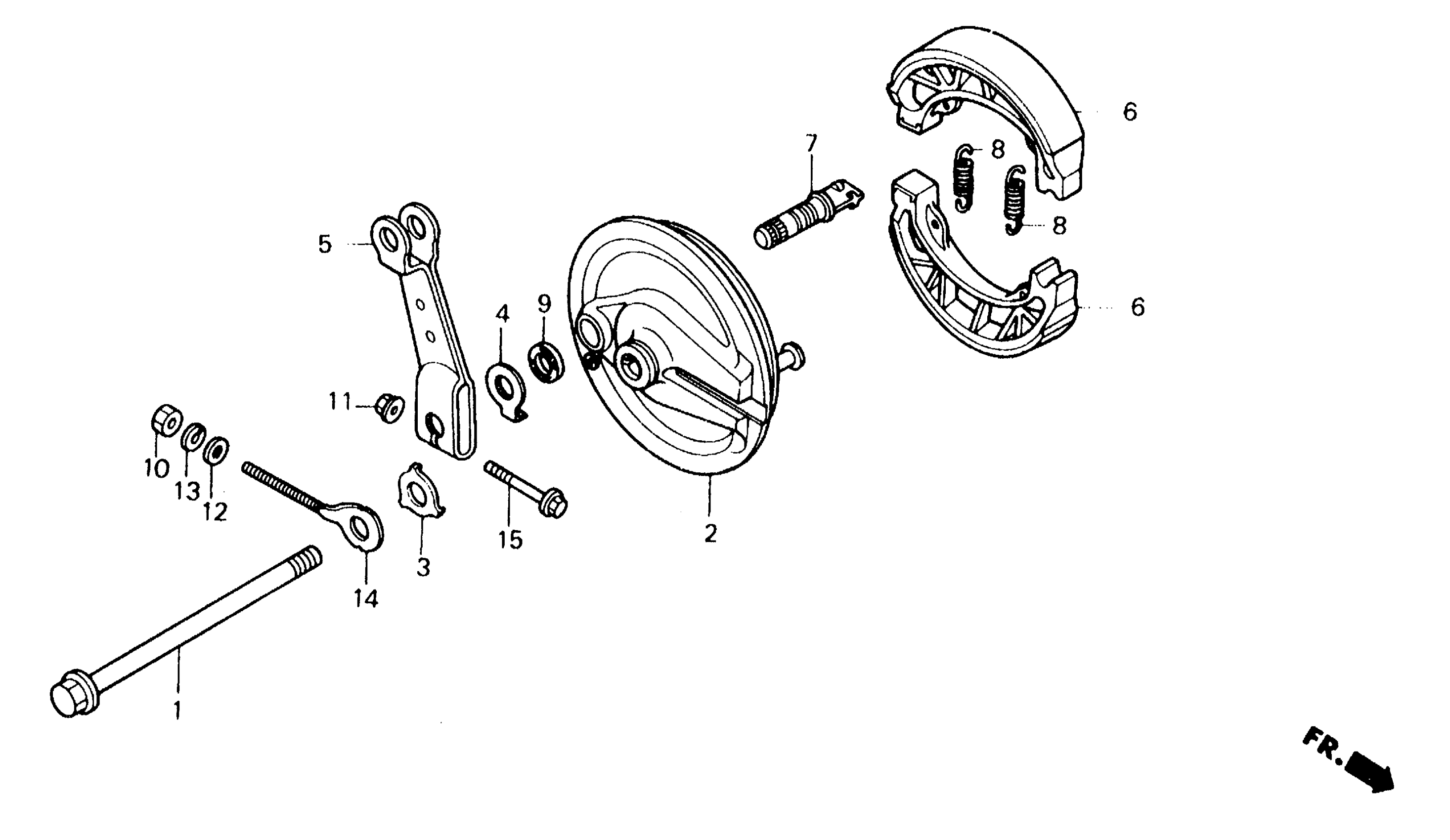

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

1

AXLE, RR. WHEEL

42301-GE3-761

Unavailable

1

AXLE, RR. WHEEL This part replaces 42301-GS9-000.

42301-GE3-761

Unavailable

2

PANEL, RR. BRAKE *R134* (FIGHTING RED)

43100-GS9-010ZA

Unavailable

3

WASHER, RR. BRAKE PANEL

43104-GS9-000

Unavailable

4

INDICATOR, RR. BRAKE

43145-GS9-000

Unavailable

5

ARM, RR. BRAKE (NOT AVAILABLE)

43410-GS9-000

Unavailable

6

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

6

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

6

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

6

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

7

CAM, FR. BRAKE

45131-400-020

Unavailable

8

SPRING, BRAKE SHOE

45133-028-000

$2.03

9

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

11

NUT, FLANGE (6MM)

94050-06000

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

12

WASHER, PLAIN (6MM)

94101-06800

$1.49

13

WASHER, SPRING (6MM)

94111-06000

$1.49

14

ADJUSTER A, R. CHAIN

95014-10100

$5.54

15

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
