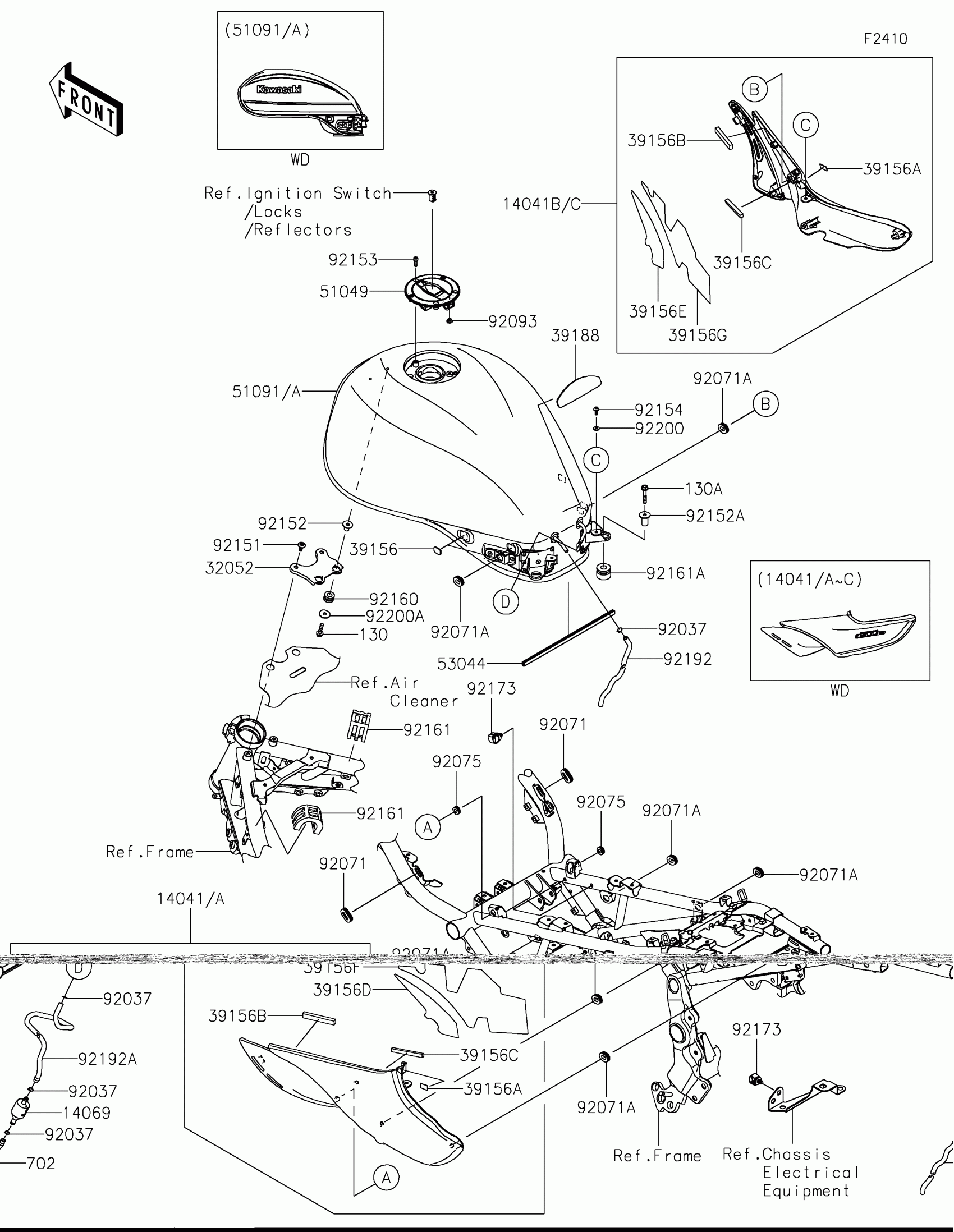

Kawasaki Z900RS Fuel Tank(CN,US) Diagram
#
14041
COVER-SIDE,LH,C.GREEN
14041-5101-65G
$429.57
14041A
COVER-SIDE,LH,EBONY
14041-5101-H8
Unavailable
14041B
COVER-SIDE,RH,C.GREEN
14041-5102-65G
$429.57
14041C
COVER-SIDE,RH,EBONY
14041-5102-H8
Unavailable
14069
BREATHER,TANK
14069-0008
$6.89
32052
BRACKET-TANK
32052-0792
$22.85
39156
PAD,13X18X2
39156-2204
$2.68
39156A
PAD,10X20X1
39156-2241
$0.98
39156B
PAD,7X70X10
39156-2268
$1.81
39156C
PAD,7X70X7
39156-2269
$1.81
39156D
PAD,72X188X0.3,COVER LH
39156-2273
$6.10
39156E
PAD,72X188X0.3,COVER RH
39156-2274
$6.10
39156F
PAD,137X328X0.45,COVER LH
39156-2275
$15.62
39156G
PAD,137X328X0.45,COVER RH
39156-2276
$15.62
39188
TAPE
39188-0584
$10.34
51049
CAP-TANK,FUEL
51049-0758
$140.61
51091
TANK-COMP-FUEL,C.GREEN
51091-5033-65G
$2,316.75
51091A
TANK-COMP-FUEL,EBONY
51091-5486-H8
Unavailable
53044
TRIM
53044-0645
$9.83
92037
CLAMP,TUBE
92037-010
$3.92
130
BOLT-FLANGED,6X25
130BA0625
$1.20
130A
BOLT-FLANGED,6X35
130BA0635
$0.94
702
TUBE-RUBBER,6X9X270
702A06270
$3.18
92071
GROMMET,EMBOSSED 0776
92071-0776
$3.18
92071A
GROMMET,EMBOSSED 0777
92071-0777
$1.41
92075
DAMPER
92075-161
$4.69
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92152
COLLAR,6.3X9.5X14.1
92152-1847
$6.52
92152A
COLLAR6.3X22X23.6
92152-2427
$9.23
92153
BOLT,SOCKET,5X16
92153-1616
$1.34
92154
BOLT,SOCKET,5X12
92154-1421
$0.95
92160
DAMPER,10X20X12
92160-1167
$4.69
92161
DAMPER
92161-1963
$9.75
92161A
DAMPER,12X28X21
92161-1998
$4.41
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92192
TUBE,6X9X708
92192-1845
$9.66
92192A
TUBE,6X9X688
92192-1846
$9.66
92200
WASHER,NYLON,5.2X12X1
92200-1011
$3.09
92200A
WASHER,6.5X22X1.6
92200-1087
$3.94
