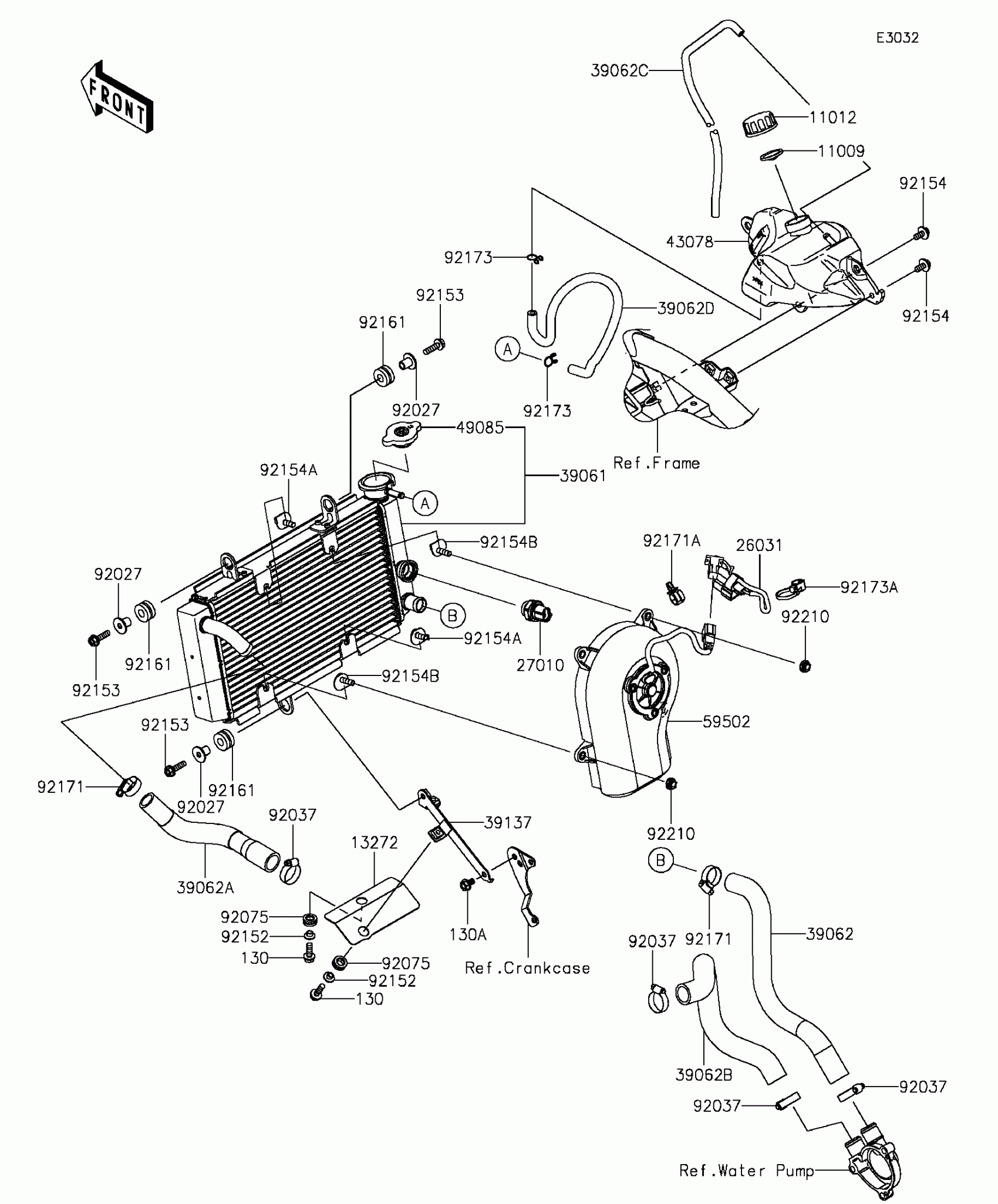

Kawasaki Z250SL Radiator Diagram
#
Description
Price
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
13272
PLATE
13272-1876
$27.11
26031
HARNESS
26031-1897
$97.62
27010
SWITCH,THERMO
27010-0755
$71.78
39061
RADIATOR-ASSY
39061-0696
Unavailable
39062
HOSE-COOLING,RAD.-W/PUMP
39062-0640
$15.74
39062A
HOSE-COOLING,HEAD-RAD.
39062-0641
$11.95
39062B
HOSE-COOLING,W/PUMP-CYLINDER
39062-0642
$15.20
39062C
HOSE-COOLING,OVER FLOW
39062-0643
$10.56
39062D
HOSE-COOLING,RAD.-RESERVOIR
39062-0644
$7.25
39137
STAY-COMP,RADIATOR
39137-0615
$11.48
43078
RESERVOIR
43078-0570
$40.64
49085
CAP-ASSY-PRESSURE
49085-0010
$44.44
59502
FAN-ASSY
59502-0604
$207.11
92027
COLLAR,6.5X10X14.1
92027-1183
$5.52
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92075
DAMPER
92075-1947
$7.33
92152
COLLAR,6.3X8.3X16
92152-0286
$5.65
92153
BOLT,FLANGED,6X22
92153-1598
$2.15
92154
BOLT,FLANGED,WP,6X14
92154-1289
$0.95
92154A
BOLT
92154-1442
$2.02
92154B
BOLT
92154-1443
$3.05
92161
DAMPER,RADIATOR
92161-1648
$4.96
92171
CLAMP
92171-0338
$8.36
92171A
CLAMP,13MM DIA.
92171-1415
$2.03
92173
CLAMP
92173-1187
$5.23
92173A
CLAMP
92173-1471
$2.75
92210
NUT
92210-0906
$1.73
130
BOLT-FLANGED,6X16
130BA0616
$1.20
130A
BOLT-FLANGED,6X10
130BB0610
$2.49
