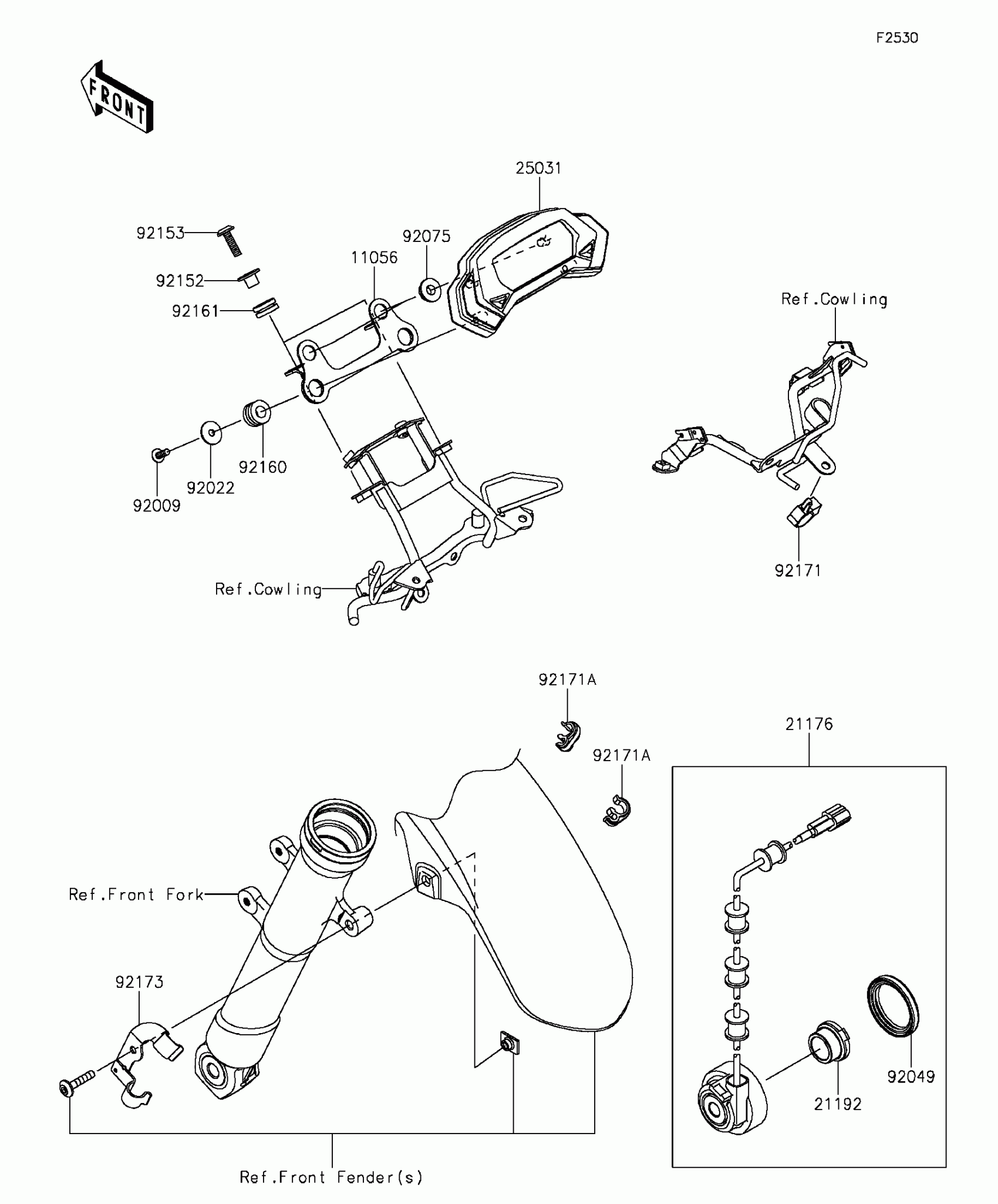

Kawasaki Z250SL Meter(s) Diagram

Description

Price

11056

BRACKET,METER

11056-4253

$7.59

21176

SENSOR,SPEED

21176-0759

$232.77

21192

MAGNET,SPEED SENSOR

21192-0004

$36.12

25031

METER-ASSY,COMBINATION,ABS

25031-0611

$518.67

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92022

WASHER,5.5X20X1.2

92022-1405

$4.31

92049

SEAL-OIL,METER GEAR CASE

92049-1172

$17.95

92075

DAMPER,RADIATOR GUARD

92075-1469

$6.22

92152

COLLAR,6.8X10X10.8

92152-1884

$5.48

92153

BOLT,SOCKET,6X22

92153-0574

$2.61

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER,10X20X8.8

92161-1664

$3.02

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP,BRAKE HOSE

92171-1819

$5.54

92173

CLAMP,FR FENDER

92173-1119

$3.98
