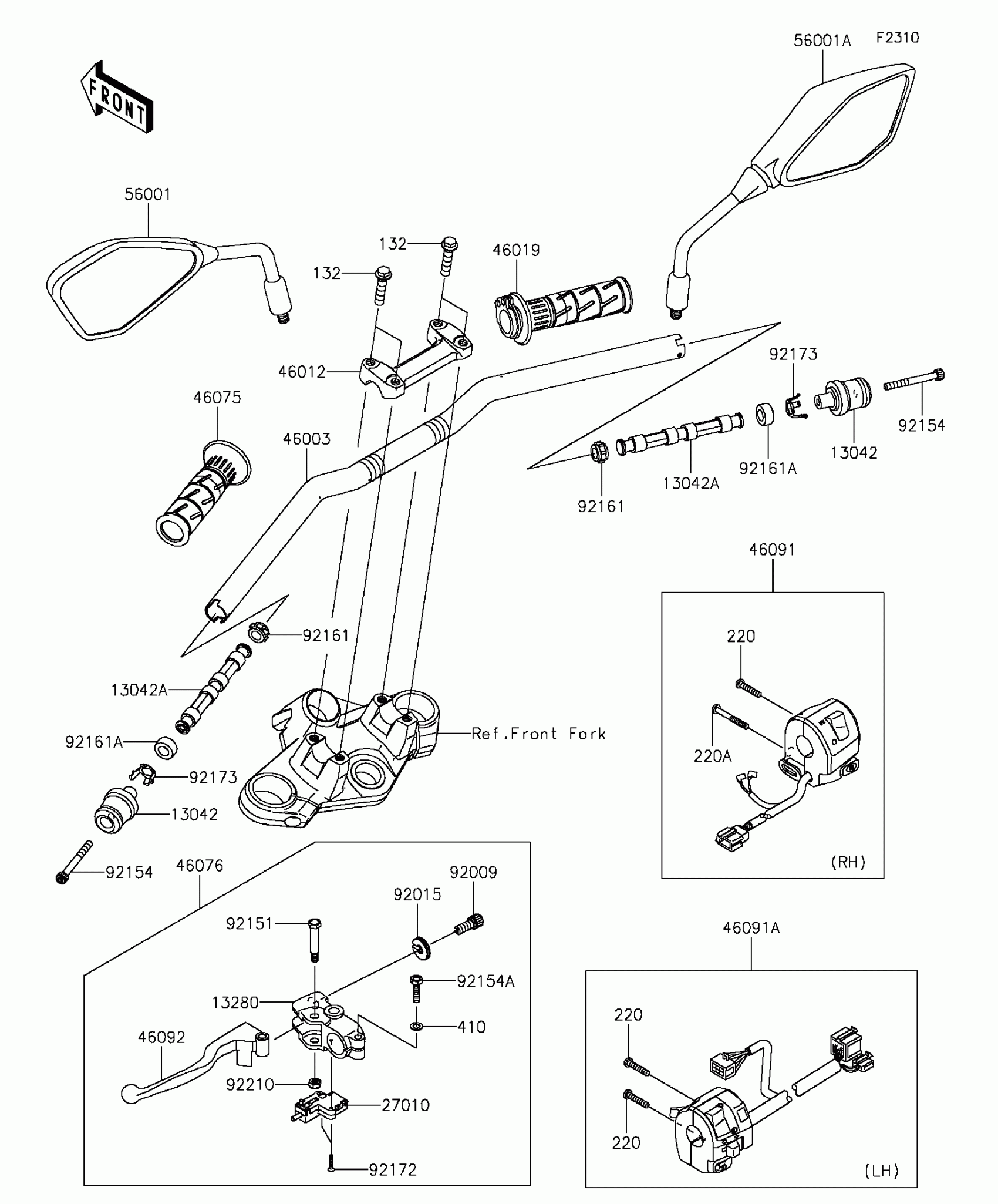

Kawasaki Z250SL Handlebar Diagram
#
Description
Price
13042
WEIGHT,HANDLE,END
13042-0043
$26.78
13042A
WEIGHT,HANDLE,INSIDE
13042-0044
$43.52
13280
HOLDER,CLUTCH LEVER
13280-0105
$37.17
27010
SWITCH,CLUTCH
27010-0729
$32.97
46003
HANDLE
46003-0645
$123.23
46012
HOLDER-HANDLE,TOP,F.BLACK
46012-0308-21
$51.18
46019
GRIP-ASSY,THROTTLE
46019-0043
$21.68
46075
GRIP,LH
46075-0007
$7.40
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0090
$65.29
46091
HOUSING-ASSY-CONTROL,RH
46091-0307
$144.99
46091A
HOUSING-ASSY-CONTROL,LH
46091-0308
$202.51
46092
LEVER-GRIP,CLUTCH
46092-0050
$6.50
56001
MIRROR-ASSY,LH
56001-0243
Unavailable
56001A
MIRROR-ASSY,RH
56001-0244
Unavailable
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92151
BOLT,LEVER SET
92151-1986
$6.22
92154
BOLT,SOCKET,6X55
92154-1299
$2.75
92154A
BOLT,UPSET,6X22
92154-1422
$4.69
92161
DAMPER,10X20X10,IN
92161-1600
$1.50
92161A
DAMPER,10X20X10,OUT
92161-1741
$6.29
92172
SCREW,3X16
92172-0788
$1.74
92173
CLAMP,WEIGHT
92173-1386
$3.02
92210
NUT,LOCK,6MM
92210-0006
$2.46
132
BOLT-FLANGED-SMALL,8X35
132BA0835
$4.76
220
SCREW-PAN-CROS,5X25
220AB0525
$3.52
220A
SCREW-PAN-CROS,5X40
220AB0540
$2.06
410
WASHER-PLAIN-SMALL,6MM
410AB0600
$0.77
