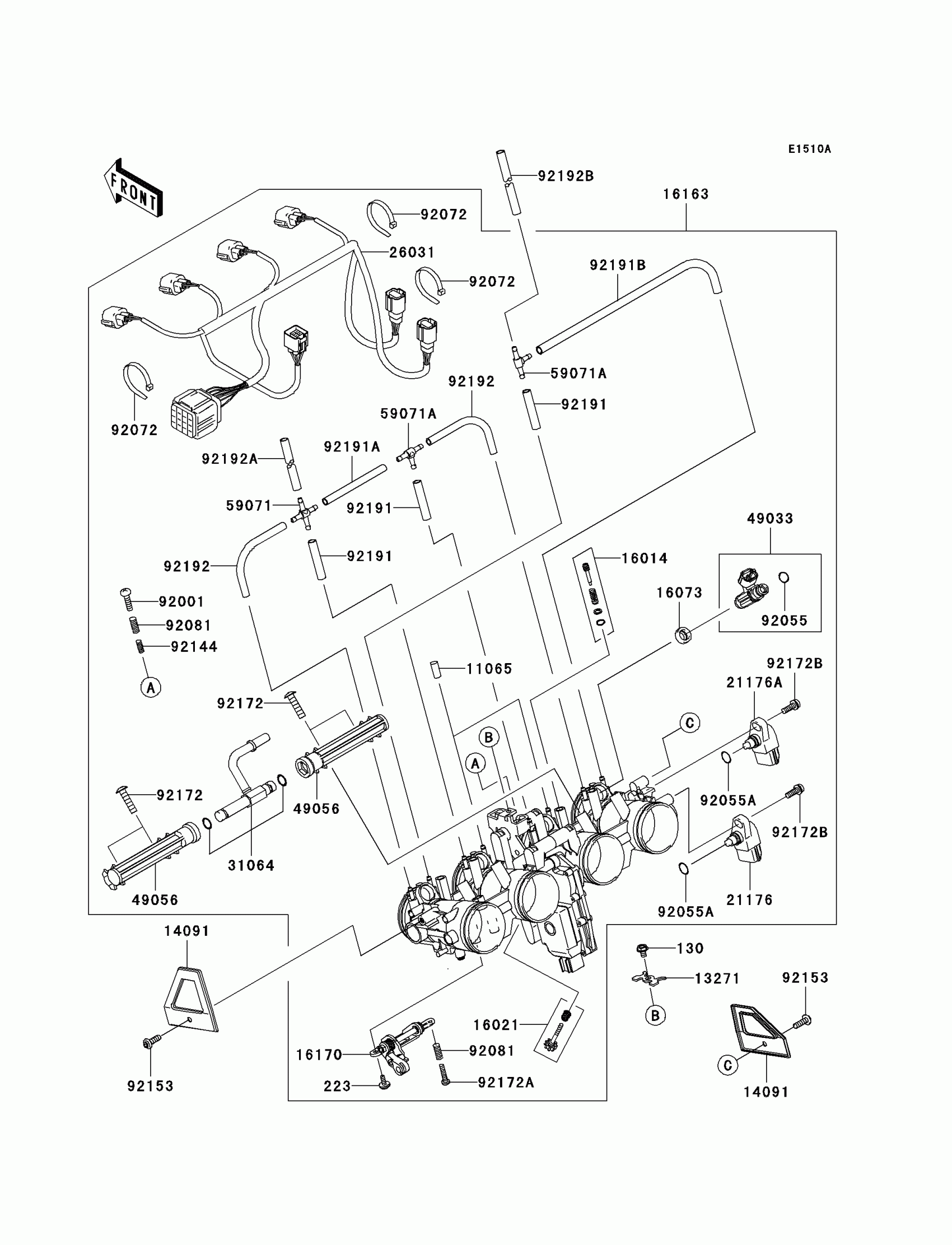

Kawasaki Z1000 Throttle(A2/A3) Diagram
#
Description
Price
130
BOLT-FLANGED,5X8
130G0508
$1.85
223
SCREW-PAN-WS-CROS,4X10
223D0410
Unavailable
11065
CAP
11065-0018
$6.12
13271
PLATE
13271-0056
$3.74
14091
COVER,THROTTLE-BODY
14091-0055
$11.88
16014
SCREW-PILOT AIR
16014-0002
$25.16
16021
SCREW-THROTTLE STOP
16021-0002
$79.62
16073
INSULATOR
16073-3707
$6.18
16163
THROTTLE-ASSY
16163-0032
$1,987.34
16170
LINK-ASSY
16170-0004
$239.55
21176
SENSOR,TPS
21176-0002
$217.59
21176A
SENSOR,TPS
21176-0003
$217.59
26031
HARNESS
26031-0040
$475.67
31064
PIPE-COMP
31064-0005
$24.61
49033
NOZZLE-INJECTION
49033-1060
$140.46
49056
PIPE-INJECTION
49056-0001
$103.85
59071
JOINT,4WAY
59071-0014
$14.58
59071A
JOINT,3WAY,T
59071-3752
$10.19
92001
BOLT,THROTTLE ADJUST
92001-1998
$16.94
92055
RING-O,INJECTION NOZZLE
92055-1622
$1.95
92055A
RING-O
92055-1671
$3.73
92072
BAND,SUB-HARNESS
92072-0012
$5.00
92081
SPRING
92081-1620
$4.96
92144
SPRING
92144-1451
$9.58
92153
BOLT,SOCKET,5X16
92153-1244
$2.41
92172
SCREW,PIPE INJECTION
92172-0064
$2.80
92172A
SCREW,THROTTLE SYNCRO
92172-0065
$3.04
92172B
SCREW
92172-0080
$5.00
92191
TUBE,3X7X30
92191-0025
$2.43
92191A
TUBE,3X7X82
92191-0036
$4.41
92191B
TUBE,3X7X265
92191-0038
$13.58
92192
TUBE,3X7X95
92192-0018
$4.22
92192A
TUBE,3X7X170
92192-0019
$12.96
92192B
TUBE,3X7X275
92192-0062
$7.71
