Description

Price

36001

COVER-SIDE,LH,F.BLACK

36001-0135-6Z

Unavailable

36001A

COVER-SIDE,RH,F.BLACK

36001-0136-6Z

Unavailable

36014

CASE-CHAIN

36014-0029

$37.51

39156

PAD

39156-0286

$1.41

55020

GUARD

55020-0398

Unavailable

92015

NUT

92015-1700

$8.58

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-1256

$2.75

92075

DAMPER,6X16X7

92075-1011

$7.33

92075A

DAMPER,6X10X15

92075-1808

$1.39

92153

BOLT,6X18

92153-0816

$2.15

92153A

BOLT,SOCKET,5X16

92153-1244

$2.41

92153B

BOLT,SOCKET,6X14

92153-1612

$1.83

92160

DAMPER

92160-1613

$3.74

92200

WASHER,5.5X20X1.2

92200-0284

$2.15

92200A

WASHER,10.3X20X1

92200-0414

$5.65

36040

COVER-TAIL,CNT,FR,P.C.WHITE

36040-0043-667

$52.34

36040A

COVER-TAIL,CNT,FR,L.GREEN

36040-0043-777

$52.34

36040B

COVER-TAIL,CNT,RR,P.C.WHITE

36040-0044-667

$77.61

36040C

COVER-TAIL,CNT,RR,L.GREEN

36040-0044-777

$77.61

36040D

COVER-TAIL,SIDE,LH,P.C.WHITE

36040-0071-667

$210.18

36040E

COVER-TAIL,SIDE,LH,L.GREEN

36040-0071-777

$200.56

36040F

COVER-TAIL,SIDE,RH,P.C.WHITE

36040-0072-667

$210.18

36040G

COVER-TAIL,SIDE,RH,L.GREEN

36040-0072-777

$200.56

36040H

COVER-TAIL,LWR,P.C.WHITE

36040-0077-667

$184.20

36040I

COVER-TAIL,LWR,L.GREEN

36040-0077-777

$184.20

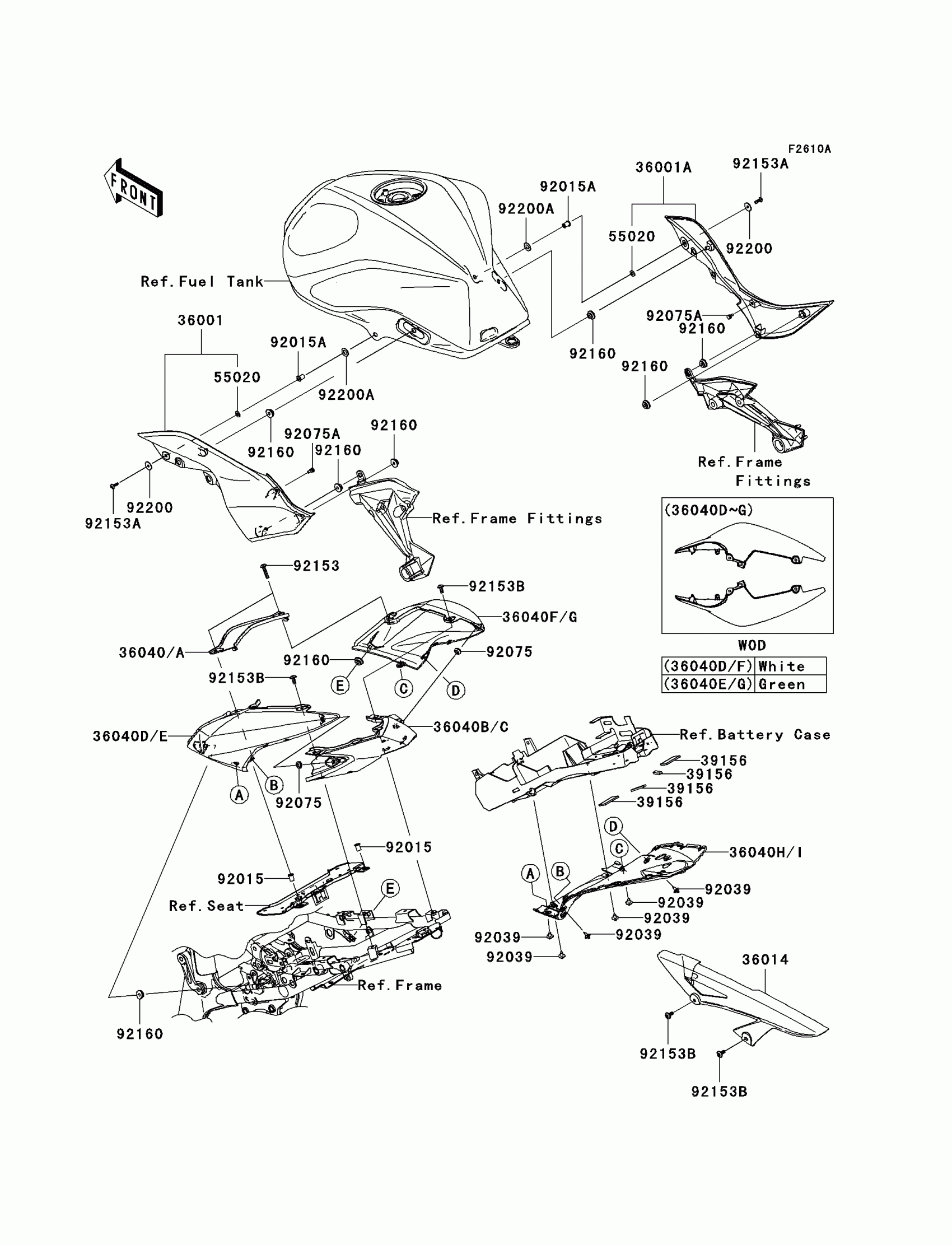

Kawasaki Z1000 Side Covers/Chain Cover(B8F) Diagram

COVER-SIDE,LH,F.BLACK

COVER-SIDE,RH,F.BLACK

CASE-CHAIN

PAD

GUARD

NUT

NUT,WELL,5MM

RIVET

DAMPER,6X16X7

DAMPER,6X10X15

BOLT,6X18

BOLT,SOCKET,5X16

BOLT,SOCKET,6X14

DAMPER

WASHER,5.5X20X1.2

WASHER,10.3X20X1

COVER-TAIL,CNT,FR,P.C.WHITE

COVER-TAIL,CNT,FR,L.GREEN

COVER-TAIL,CNT,RR,P.C.WHITE

COVER-TAIL,CNT,RR,L.GREEN

COVER-TAIL,SIDE,LH,P.C.WHITE

COVER-TAIL,SIDE,LH,L.GREEN

COVER-TAIL,SIDE,RH,P.C.WHITE

COVER-TAIL,SIDE,RH,L.GREEN

COVER-TAIL,LWR,P.C.WHITE

COVER-TAIL,LWR,L.GREEN
