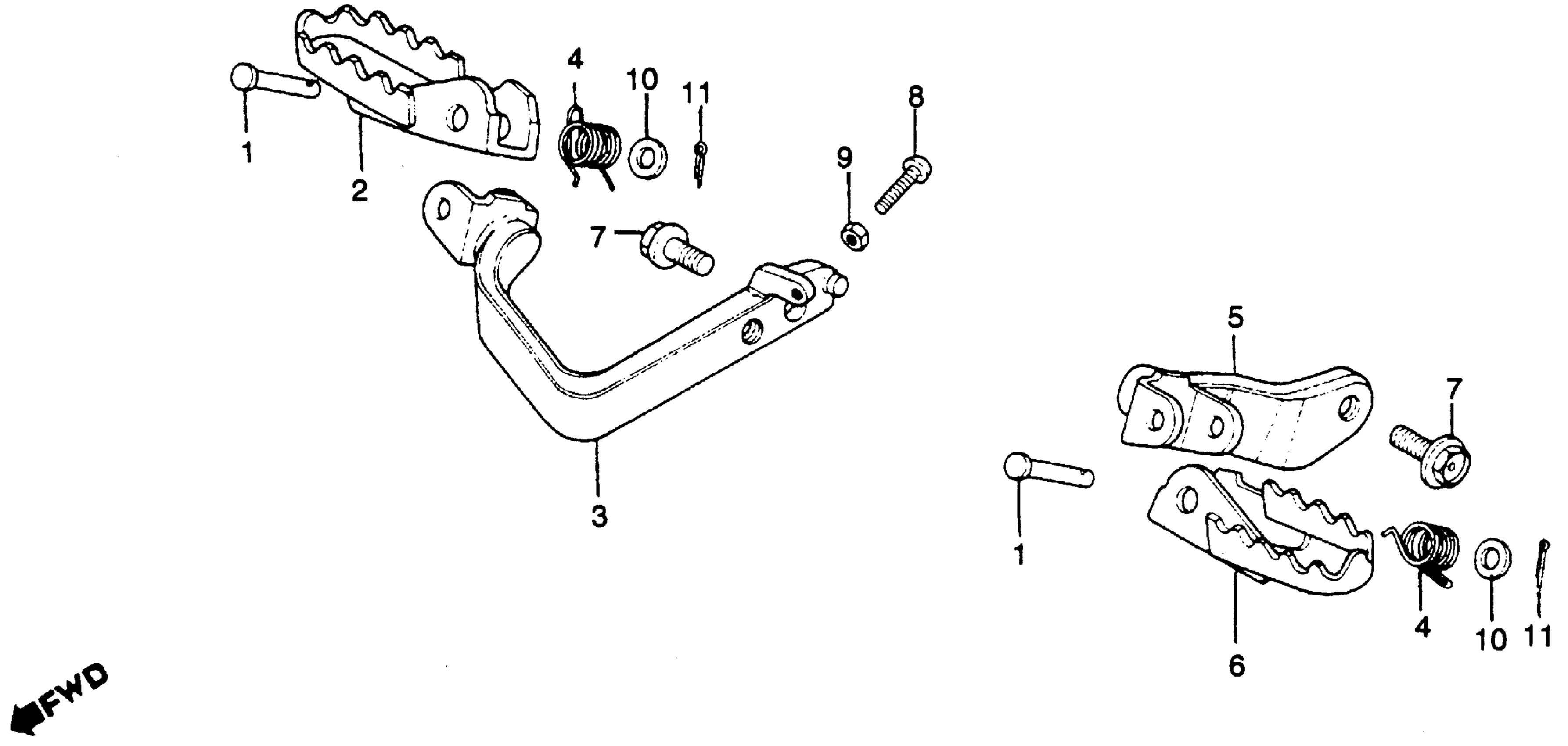

Honda XR250RA (81) MOTORCYCLE, JPN, VIN# JH2ME010-BM200022 TO JH2ME010-BM202531 STEP Diagram

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

PIN, STEP BAR JOINT

50603-033-010

$3.30

STEP, R.

50612-169-000

Unavailable

ARM, R. STEP (NOT AVAILABLE)

50615-MA0-000

Unavailable

SPRING, FOOTPEG RETURN This part replaces 50617-466-000.

50617-MA0-770

$5.80

SPRING, FOOTPEG RETURN

50617-MA0-770

$5.80

ARM, L. STEP (NOT AVAILABLE)

50624-MA0-000

Unavailable

STEP, L.

50642-169-000

Unavailable

BOLT, FOOTPEG SETTING

90130-429-000

Unavailable

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49
