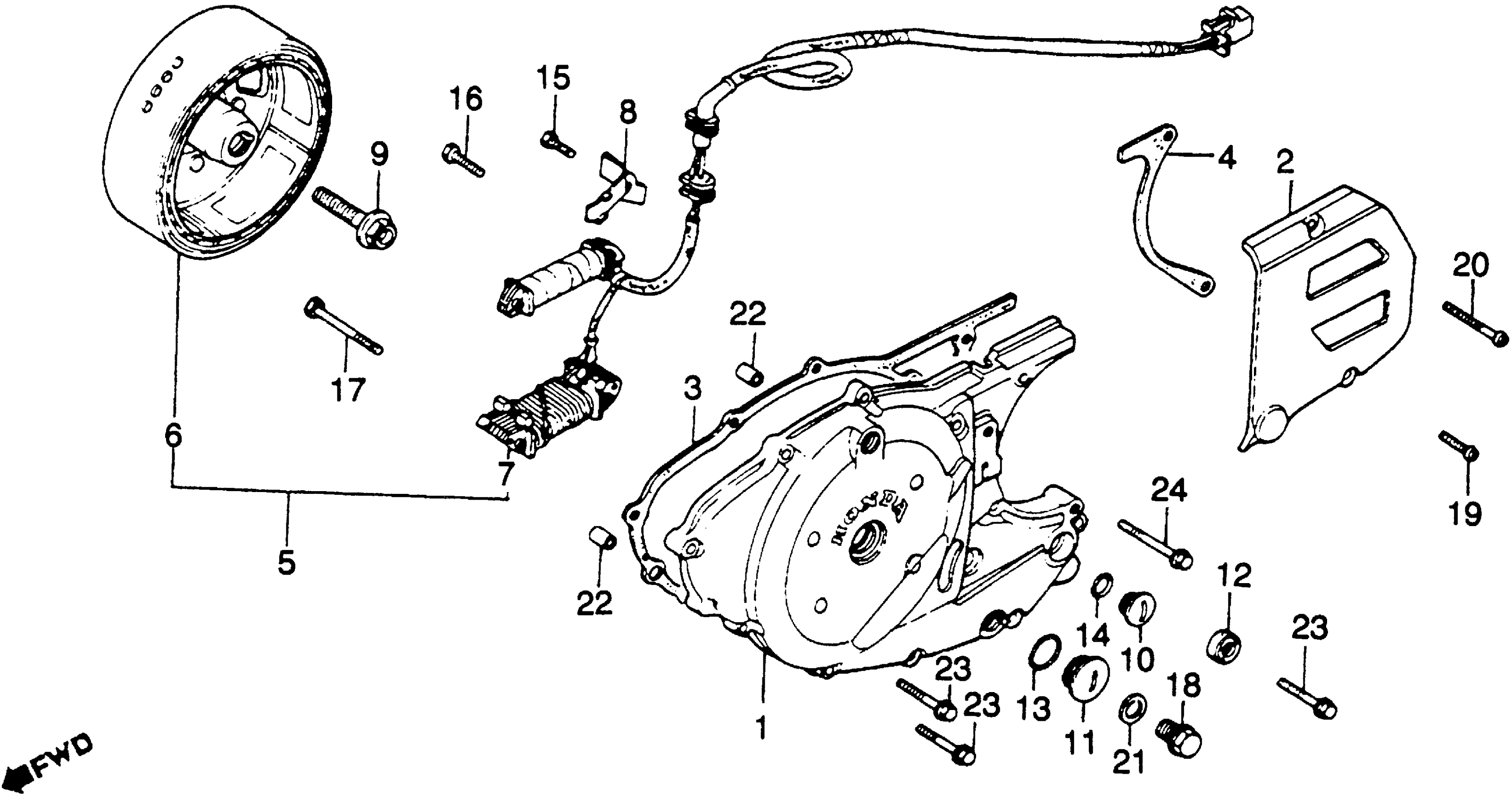

Honda XR250RA (81) MOTORCYCLE, JPN, VIN# JH2ME010-BM200022 TO JH2ME010-BM202531 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-KA6-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-428-900

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-429-000.

11395-429-306

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-429-306

Unavailable

4

GASKET, R. COVER This part replaces 11396-428-300.

11396-428-306

Unavailable

5

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)

31100-KA6-004

Unavailable

6

FLYWHEEL (DENSO) (NOT AVAILABLE)

31110-KA6-004

Unavailable

7

STATOR (DENSO)

31120-MA0-004

Unavailable

8

CLAMP, CABLE

32111-428-000

Unavailable

9

BOLT, FLANGE (12X50)

90023-471-000

$13.00

10

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

10

CAP, ALTERNATOR

90084-471-000

Unavailable

11

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

12

OIL SEAL (12X25X7)

91201-362-000

$5.55

13

O-RING (27X2.0)

91301-028-000

$2.92

13

O-RING (27X2) (ARAI) This part replaces 91305-KF0-000.

91305-KF0-003

$2.92

13

O-RING (27X2.0)

91305-KF0-003

$2.92

14

O-RING (13.8X2.5)

91303-MG7-003

$3.12

14

O-RING (13.8X2.5)

91303-377-000

$3.42

14

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

16

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

17

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

17

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

17

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

18

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

19

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

19

SCREW, PAN (6X18)

93500-06018-0A

$1.49

20

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

20

SCREW, PAN (6X40)

93500-06040-0A

$1.49

21

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

22

PIN A, DOWEL (10X16)

94301-10160

$2.28

23

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

23

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

24

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

24

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
