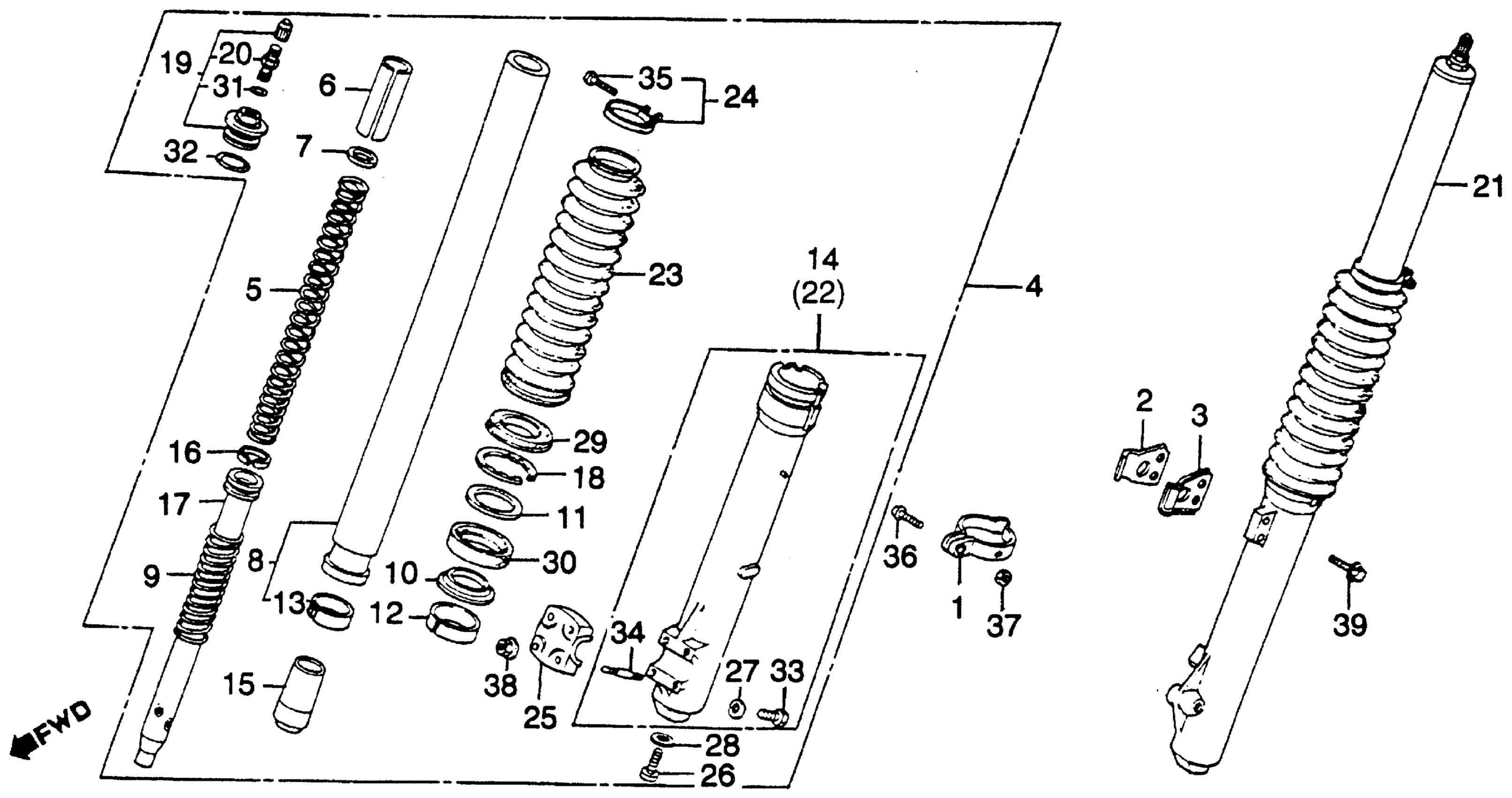

Honda XR250RA (81) MOTORCYCLE, JPN, VIN# JH2ME010-BM200022 TO JH2ME010-BM202531 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MA0-000

Unavailable

2

CLAMP A, FR. BRAKE CABLE (NOT AVAILABLE) | Use up to Frame SN BM202831 This part replaces 45461-MA0-000.

45461-MA0-010

Unavailable

2

CLAMP A, FR. BRAKE CABLE (NOT AVAILABLE) | Use from Frame SN BM202832

45461-MA0-010

Unavailable

3

CLAMP B, FR. BRAKE CABLE | Use up to Frame SN BM202831 This part replaces 45462-MA0-000.

45462-MA0-010

Unavailable

3

CLAMP B, FR. BRAKE CABLE | Use up to Frame SN BM202831

45462-MA0-010

Unavailable

3

CLAMP B, FR. BRAKE CABLE

45462-MA0-010

Unavailable

4

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-KA6-003

Unavailable

5

SPRING, FR. FORK

51401-KA6-003

Unavailable

8

PIPE, FR. FORK (NOT AVAILABLE)

51410-MA0-003

Unavailable

9

SPRING, FR. BALANCE (NOT AVAILABLE)

51412-MA0-003

Unavailable

10

RING, BACK-UP

51412-461-003

$7.04

10

RING, BACK-UP This part replaces 51412-461-305.

51412-461-003

$7.04

11

PLATE, BACK-UP

51413-461-003

Unavailable

12

BUSH, GUIDE

51414-MN4-003

$13.34

12

BUSH, GUIDE This part replaces 51414-461-003.

51414-MN4-003

$13.34

13

BUSH, SLIDER

51415-461-003

$20.08

14

CASE, R. (LOWER)

51420-MA0-003

Unavailable

15

PIECE, OIL LOCK (NOT AVAILABLE)

51432-461-771

Unavailable

16

RING, PISTON

51437-461-003

$9.59

17

PIPE, SEAT (NOT AVAILABLE)

51440-MA0-003

Unavailable

18

CIRCLIP (INNER) (50MM)

51447-461-003

$4.53

19

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-MA0-003

Unavailable

20

VALVE, AIR (SHOWA)

51456-469-013

$33.69

21

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-KA6-003

Unavailable

22

CASE, L. (LOWER) (NOT AVAILABLE)

51520-MA0-003

Unavailable

23

BOOT, FR. FORK

51611-430-000

Unavailable

24

BAND, FR. FORK BOOT

51612-430-010

$8.11

25

HOLDER, AXLE

51634-MA0-003

$37.46

26

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

26

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

27

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

28

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

29

DUST SEAL, FR. FORK

91254-MA0-003

Unavailable

30

OIL SEAL (37X50X11)

91255-461-003

$25.90

30

OIL SEAL (37X50X11) This part replaces 91255-461-004.

91255-461-003

$25.90

31

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

31

O-RING (5.8X1.9)

91305-323-000

$2.92

31

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

32

O-RING (29X2.4)

91344-PC9-004

$3.51

32

O-RING (29X2.4) (NOK) This part replaces 91356-371-000.

91344-PC9-004

$3.51

33

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

33

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

33

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

34

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

34

BOLT, STUD (6X25)

92900-06025-0E

$1.49

35

SCREW, PAN (3X25)

93500-03025-0A

$1.49

36

SCREW, PAN (5X16)

93500-05016-0A

$1.49

37

NUT, HEX. (5MM)

94001-05000-0S

$2.74

38

NUT, FLANGE (6MM)

94050-06000

$1.49

39

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

39

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
