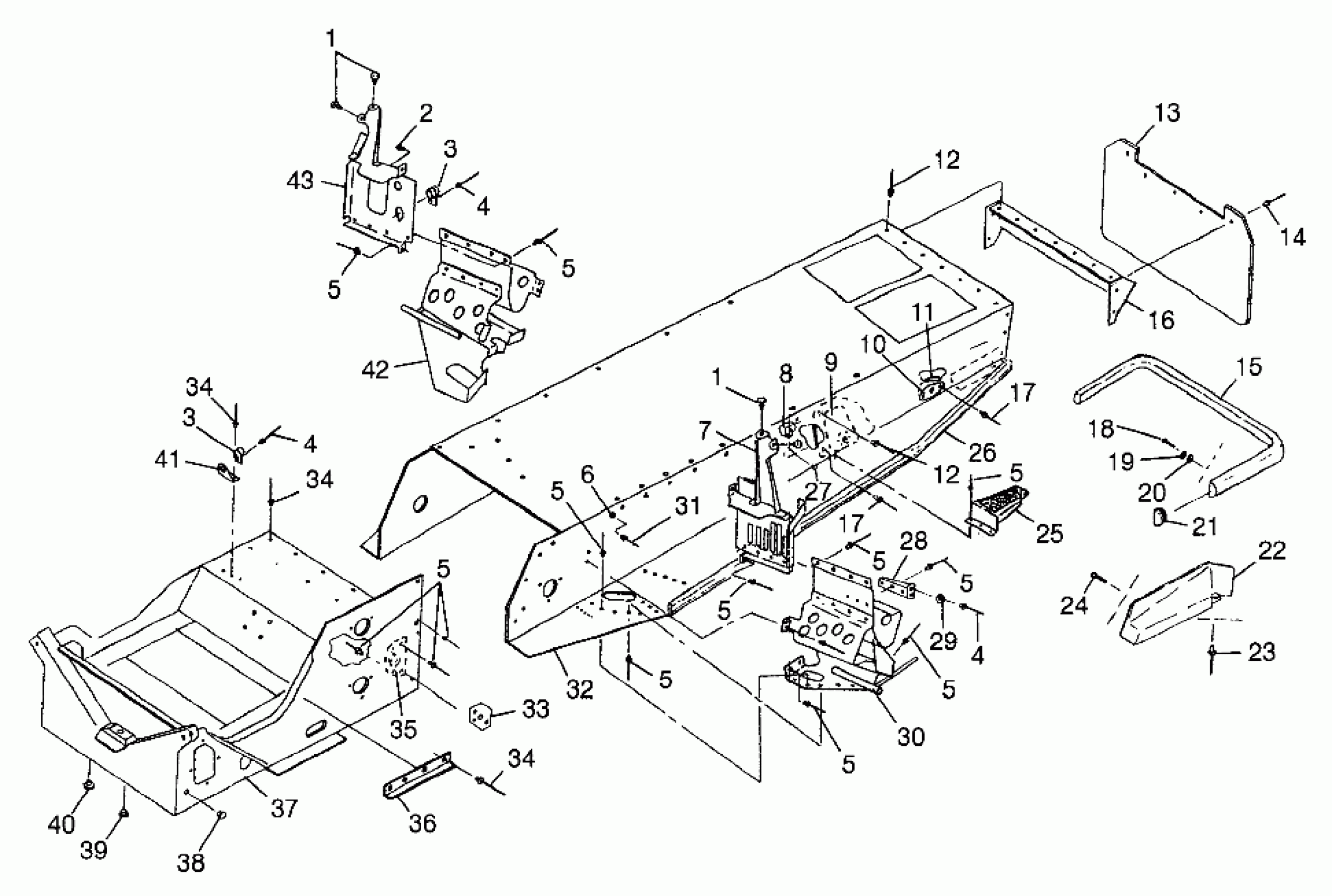

Polaris XLT TOURING - 0983357 TUNNEL - 0983357 (4942534253a005) Diagram
#
1
BUMPER,HOOD
5410768
$2.95
1
BUMPER,HOOD
5410768
$2.95
2
SCREW(10)
7512057
$2.38
3
GUIDE, RECOIL
5431385
$10.51
3
GUIDE, RECOIL
5431385
$10.51
4
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,3/16X.402(50)
7621432
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
6
SNAP-MALE(10)
7080227
Unavailable
7
MT,CONSOLE,LH
1011951-067
$35.51
8
BRACE,LH,LOW.TUNNEL
5241485
$25.59
8
BRACE,RH,LOW.TUNNEL
5241486
$25.59
9
PAD,LH,RR SUSP,X12,BLK
1012439-067
$15.67
9
PAD,RH,RR SUSP,X12,BLK
1012440-067
$13.68
10
PLATE,TUNNEL SUPPORT
5211660-067
$3.17
11
BRKT,U-TENSIONER,BLK.
5211590-067
$7.38
12
RIVET,SEMI-TUBE,(50)
7661841
$1.49
12
RIVET,SEMI-TUBE,(50)
7661841
$1.49
13
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
14
POP RIVET(50)
7621418
$1.49
15
BUMPER,REAR Substituted by 2670168-067
2670168
Unavailable
16
PANEL,R.CLOSEOFF
5240968-067
$36.31
17
RIVET(50)
7661846
$1.99
17
RIVET(50)
7661846
$1.99
18
SCREW(10)
7515159
$4.79
19
LOCK WASHER(10)
7552801
$1.59
20
WASHER(10)
7558301
$1.49
21
CAP,BUMPER
5431995-070
Unavailable
22
SKIRT,SNO.TRNG,LH
5432131-070
$33.91
22
SKIRT,SNO.TRNG,RH
5432132-070
$30.95
23
RIVET(50)
7621472
$1.49
24
SCREW(10)
7512091
$3.99
25
PAD,FOOTREST GRIP
5830114
$35.24
25
FOOTREST,RH, W/GRIP PAD
1012543
$58.39
25
FOOTREST,LH, W/GRIP PAD
1012542
$66.39
26
EDGE,LH,TUNNEL,BLK
5333529-067
Unavailable
26
EDGE,RH,TUNNEL,BLK
5333530-067
Unavailable
27
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
28
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
29
STOP,SIDEPANEL BUMPER
5411172
Unavailable
30
FOOTREST ASM,LH
1012544
Unavailable
31
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
32
TUNNEL ASM,W/ COOLER,TOUR (Incl. Heat Exchangers)
1012437
Unavailable
33
PLATE,F.SUSP,OUT,X-12,BLK
5211746-067
$13.39
34
RIVET-3/16-.090-.290
7661637
$1.49
34
RIVET-3/16-.090-.290
7661637
$1.49
34
RIVET-3/16-.090-.290
7661637
$1.49
35
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
35
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
36
GUARD,ADAPTER GUIDE
5222857
$12.94
37
BULKHEAD,XLT TOUR,BLK
1012660-067
Unavailable
38
PLUG, HOLE(10)
7080416
$5.65
39
PLUG-HOLE
7080398
$4.84
40
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
41
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
42
FOOTREST ASM,RH
1012545
Unavailable
43
MT,CONSOLE,RH
1011952-067
$339.99
