- XLT TOURING - 0983357
PISTON and CRANKSHAFT - 0983357 (4942534253c010)

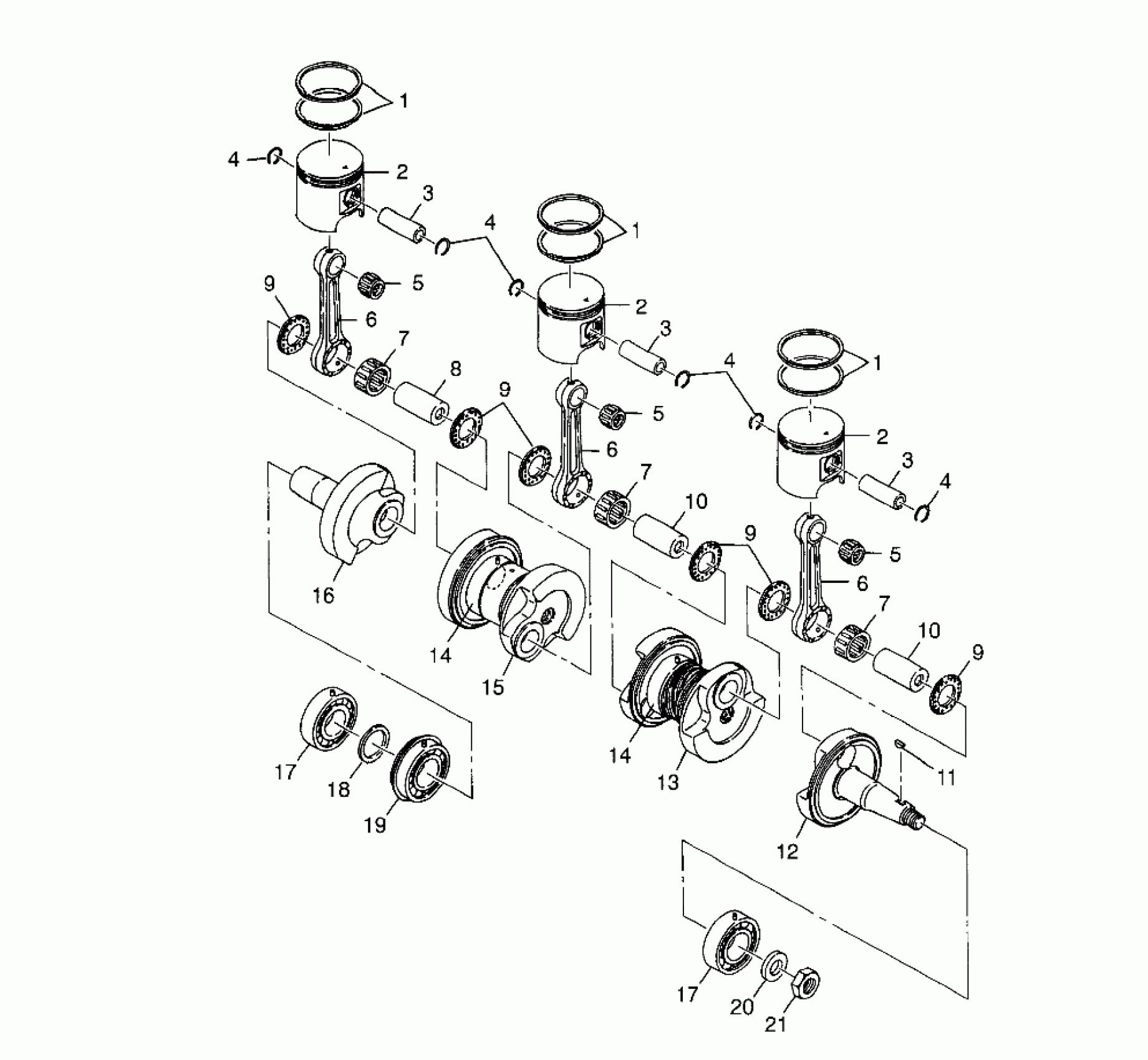

Polaris XLT TOURING - 0983357 PISTON and CRANKSHAFT - 0983357 (4942534253c010) Diagram
#
1
RING, PISTON .010 O/S (0.25mm/.010I O/S)
3083358
Unavailable
1
RING,PISTON .020 O/S (0.50mm/.020I O/S)
3083359
Unavailable
1
RING, PISTON (Standard)
3083349
Unavailable
1
RING, PISTON .010 O/S (0.25mm/.010I O/S)
3083358
Unavailable
1
RING,PISTON .020 O/S (0.50mm/.020I O/S)
3083359
Unavailable
1
RING, PISTON (Standard)
3083349
Unavailable
1
RING, PISTON .010 O/S (0.25mm/.010I O/S)
3083358
Unavailable
1
RING,PISTON .020 O/S (0.50mm/.020I O/S)
3083359
Unavailable
1
RING, PISTON (Standard)
3083349
Unavailable
2
PISTON,STD. Substituted by 3085873 (Standard)
3085432
$138.08
2
PISTON,(.25MM O/S) Substituted by 3085874 (0.25mm/.010I O/S)
3085433
$118.99
2
PISTON,(.50MM O/S) Substituted by 3085875 (0.50mm/.020I O/S)
3085434
Unavailable
2
PISTON,STD. Substituted by 3085873 (Standard)
3085432
$138.08
2
PISTON,(.25MM O/S) Substituted by 3085874 (0.25mm/.010I O/S)
3085433
$118.99
2
PISTON,(.50MM O/S) Substituted by 3085875 (0.50mm/.020I O/S)
3085434
Unavailable
2
PISTON,STD. Substituted by 3085873 (Standard)
3085432
$138.08
2
PISTON,(.25MM O/S) Substituted by 3085874 (0.25mm/.010I O/S)
3085433
$118.99
2
PISTON,(.50MM O/S) Substituted by 3085875 (0.50mm/.020I O/S)
3085434
Unavailable
3
Pin, Piston
3085021
Unavailable
3
Pin, Piston
3085021
Unavailable
3
Pin, Piston
3085021
Unavailable
4
CLIP,PISTON PIN,(10)
3084456
Unavailable
4
CLIP,PISTON PIN,(10)
3084456
Unavailable
4
CLIP,PISTON PIN,(10)
3084456
Unavailable
4
CLIP,PISTON PIN,(10)
3084456
Unavailable
5
BEARING,SMALL END
3080998
Unavailable
5
BEARING,SMALL END
3080998
Unavailable
5
BEARING,SMALL END
3080998
Unavailable
6
ROD,CONNECTING
3085440
$133.99
6
ROD,CONNECTING
3085440
$133.99
6
ROD,CONNECTING
3085440
$133.99
7
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
7
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
7
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
PIN-CRANK 2
3083254
Unavailable
9
SPACER(CRANKPIN)
3083277
$15.99
9
SPACER(CRANKPIN)
3083277
$15.99
9
SPACER(CRANKPIN)
3083277
$15.99
9
SPACER(CRANKPIN)
3083277
$15.99
10
PIN, CRANK, #1
3084447
$32.15
10
PIN, CRANK, #1
3084447
$32.15
11
KEY Substituted by 3081543
3080130
Unavailable
12
CRANKSHAFT 1 Substituted by 3084597 (MAG Side)
3084441
$226.99
12
CRANKSHAFT ASM. (Incl. 6-10,12-19)
3085437
$1,699.99
13
CRANKSHAFT,MAG SIDE (MAG Side) (Incl. 10)
3084443
Unavailable
13
CRANKSHAFT,CTR. (Center) (Incl. 6-10,13,15)
3085438
$869.99
14
BEARING, BALL
3084586
$44.99
14
BEARING, BALL
3084586
$44.99
15
CRANKSHAFT,PTO SIDE (PTO Side) (Incl. 8)
3084444
$549.99
16
CRANKSHAFT#3,PTO SIDE (PTO Side)
3085439
$273.59
17
BEARING, BALL
3084681
Unavailable
17
BEARING, BALL
3084681
Unavailable
18
SPACER,CRANKSHAFT
3080447
$1.99
19
BEARING, BALL
3084599
Unavailable
20
Washer
3084457
Unavailable
21
NUT
3083093
$19.99
