OIL TANK/AIR BOX - 0983357 (4942534253c007)

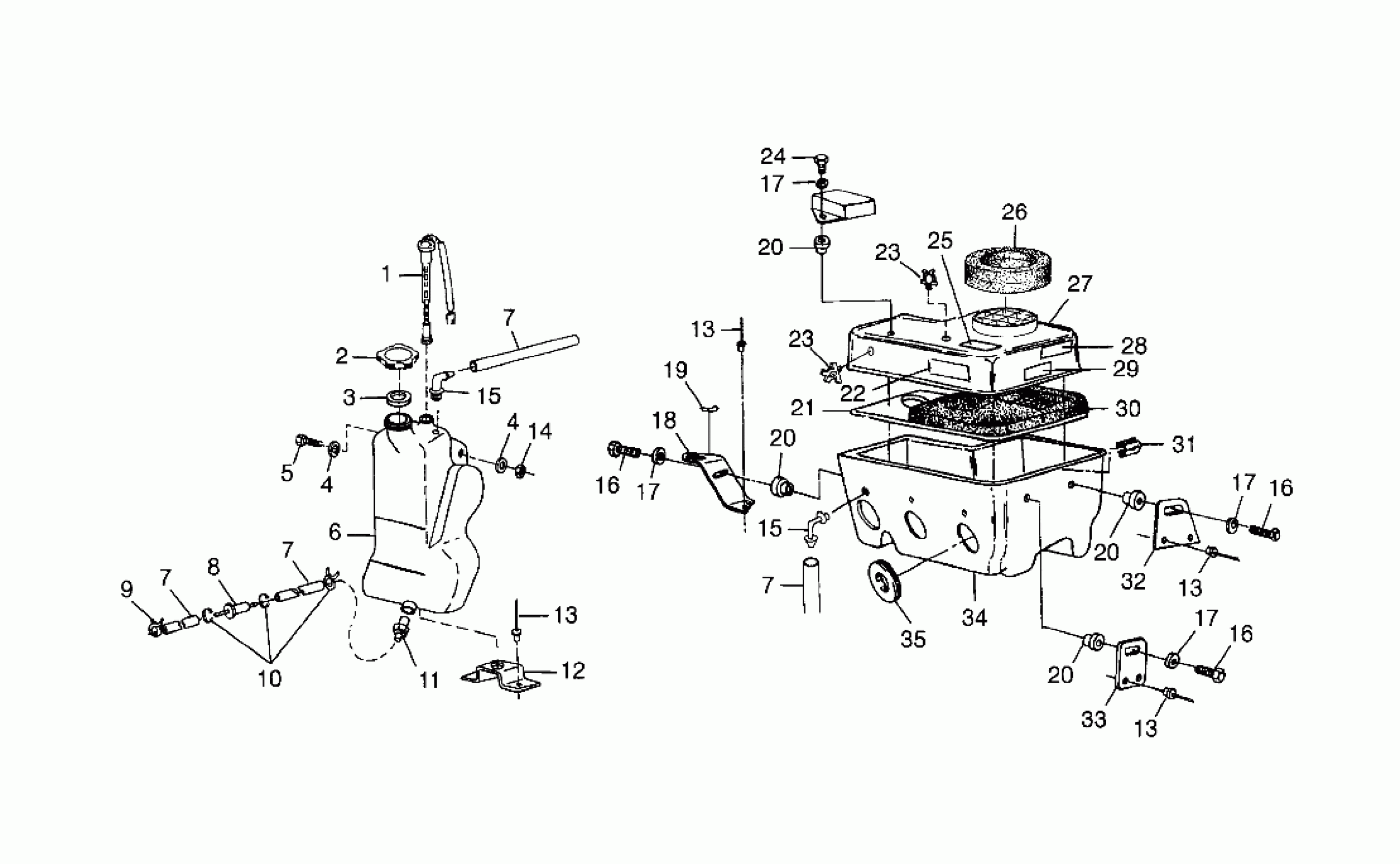

Polaris XLT TOURING - 0983357 OIL TANK/AIR BOX - 0983357 (4942534253c007) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512240
$3.99
6
Tank, Oil
5431437
Unavailable
7
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
7
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
7
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
7
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
7
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
7
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
7
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
7
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
8
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
9
CLAMP-HOSE,(10)
7080236
$1.59
10
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
11
FITTING, OUTLET
7052042
$8.99
12
BRKT,OILTANK,COINED
5241334
$9.70
13
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
NUT-LOCK(10)
7542122
$1.49
15
FITTING,90 DEG,1/8,(10)
7052095
$4.79
15
FITTING,90 DEG,1/8,(10)
7052095
$4.79
16
SCREW(10)
7512279
$1.49
16
SCREW(10)
7512279
$1.49
16
SCREW(10)
7512279
$1.49
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
19
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
21
PLATE, AIR SILENCER
5850102
Unavailable
22
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
23
CLIP, PLASTIC(10)
4020139
$4.79
23
CLIP, PLASTIC(10)
4020139
$4.79
24
SCREW(10)
7512222
$2.39
25
DECAL,CAUTION,AIRBOX
7075351
Unavailable
26
DUCT ASM,AIR
2620057
$40.46
27
SILENCER.UP.AIR,DRILLED
5431879
Unavailable
28
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
29
DECAL, GREASING [No Longer Available]
7073426
$7.27
30
BAFFLE ASM.
1253124
Unavailable
31
CLIP, AIR BOX,(10)
7670055
$7.99
32
BRACKET, SILENCER
5211274
$9.70
33
BRKT,FRT.SILENCER
5211296-067
$4.38
34
SILENCER,INTAKE,DRILLED
5432136
Unavailable
35
BOOT,AIR SILENCER MOD.
5410793
Unavailable
