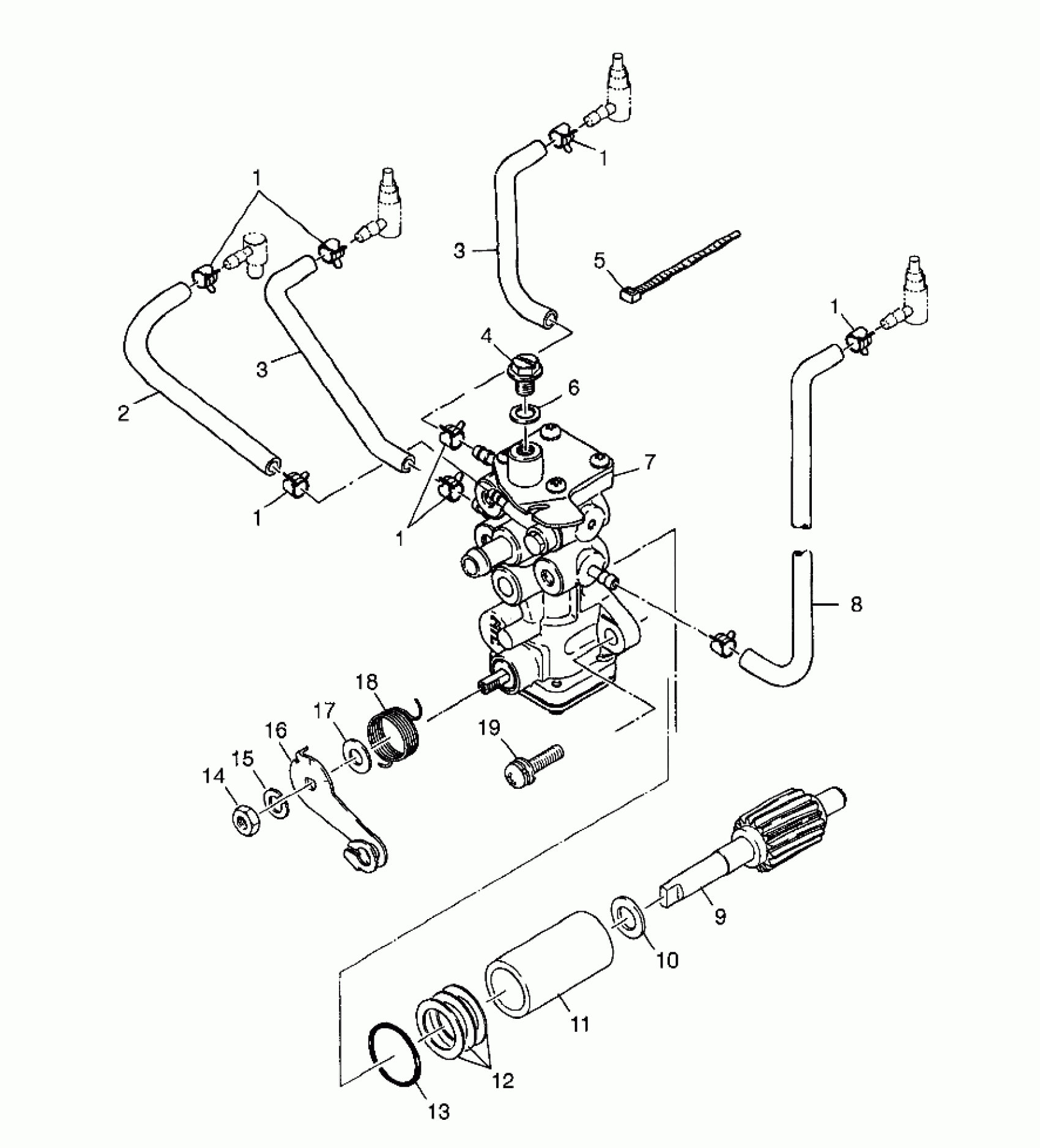

Polaris XLT TOURING - 0983357 OIL PUMP - 0983357 (4942534253c014) Diagram
#
Description
Price
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
2
PIPE,RUBBER(8MMX1M.)ACCS (290mm)
3085172
$36.19
3
PIPE#3,VINYL(L=315) Substituted by 3085591 (120mm)
3083488
Unavailable
3
PIPE#3,VINYL(L=315) Substituted by 3085591 (120mm)
3083488
Unavailable
4
SCREW-AIR VENT
3083125
Unavailable
5
Band, Wire
3083447
Unavailable
6
PACKING(10)
3083126
$4.03
7
PUMP, OIL ASM. (Incl. 4,6,7,13-18)
3085465
Unavailable
8
PIPE 1,VINYL (210mm)
3084467
$28.32
9
GEAR,SMALL,OIL PUMP
3083131
$89.99
10
SPACER
3083130
$1.59
11
BUSHING(OIL PUMP)
3083353
$31.99
12
SPACER #3 (.6mm)
3083673
Unavailable
12
SPACER #2 (.3mm)
3083672
Unavailable
12
SPACER #1 (.15mm)
3083671
Unavailable
13
O RING
3083127
Unavailable
14
NUT(10)
3083120
$3.19
15
WASHER-SPRING(10)
3083121
$299.99
16
LEVER, CONTROL
3085489
$41.59
17
COLLAR, CAMSHAFT(10)
3083445
$2.39
18
SPRING-RETURN
3083123
Unavailable
19
SCREW&WASHER,(10)
3083783
$2.39
