FRONT SUSPENSION and SKI - 0983357 (4942534253b007)

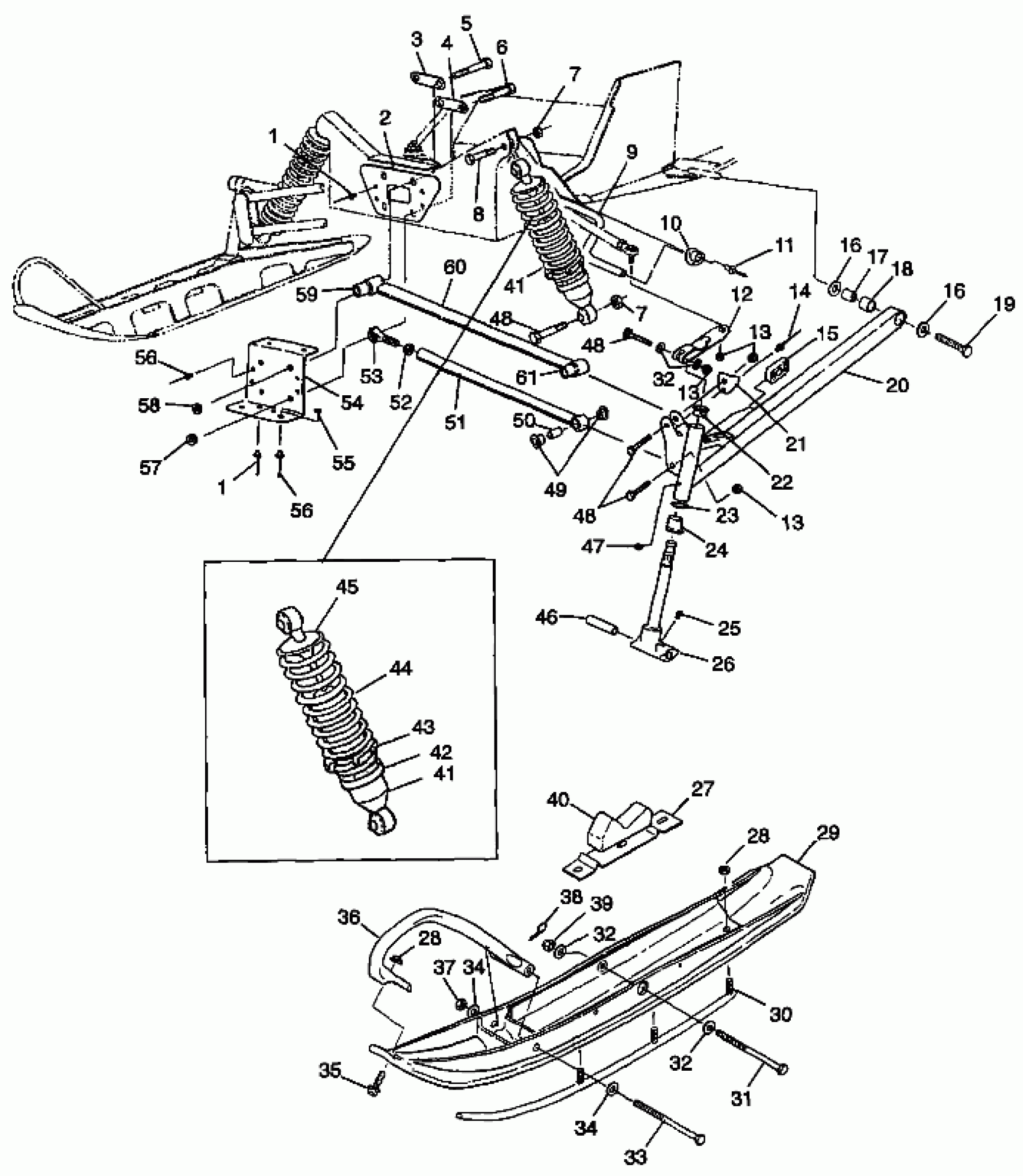

Polaris XLT TOURING - 0983357 FRONT SUSPENSION and SKI - 0983357 (4942534253b007) Diagram
#
1
RIVET-3/16-.090-.290
7661637
$1.49
1
RIVET-3/16-.090-.290
7661637
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
STRAP,SPACER TOP
5211344
$7.27
4
STRAP,SPACER BOTTOM
5211345
$12.99
5
BOLT(10)
7512582
$8.79
6
BOLT(10)
7512684
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
8
BOLT(10) Substituted by 7515415
7515515
Unavailable
9
BAR,SWAY,5/8(X-12)BLK
5224748-067
Unavailable
10
BUSHING,SWAYBAR,5/8 Substituted by 5432038
5432885
$19.84
11
RIVET(50)
7621433
$1.49
12
ARM,STRG,BLK
5241560-067
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
RIVET(50) Substituted by 7661130
7661643
Unavailable
15
SLIDE,SWAYBAR,5/8
5432331
$28.32
16
WASHER(10)
7555721
$1.49
16
WASHER(10)
7555721
$1.49
17
TUBE, BUSHING
5010310
$9.70
18
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
19
BOLT(10)
7512557
$7.60
20
ARM,TRLG,LH (Incl. 17,18)
1822384
Unavailable
20
ARM,TRLG,RH (Incl. 17,18)
1822386
Unavailable
21
STOP,LH,STRG,BLK.
5241569-067
$7.27
21
STOP,RH,STRG,BLK.
5241570-067
$7.27
22
BUSHING-FLANGE
3573909
$2.39
23
WASHER SPECIAL(10)
7556509
$1.59
24
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
25
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
26
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
27
SUPPORT,SKI,RUBBER,BLK
5241912-067
Unavailable
28
NUT LOCK(10)
7542321
$1.49
28
NUT LOCK(10)
7542321
$1.49
29
SKI ASM,COMP,(PLASTIC) Substituted by 1820506-070
1820506
Unavailable
30
KIT,SKAG,7/16,3",COMP. (Incl. 28)
2871815
Unavailable
31
SCREW,(10)
7512596
$19.99
32
WASHER(10) Substituted by 7555832
7555851
Unavailable
32
WASHER(10) Substituted by 7555832
7555851
Unavailable
32
WASHER(10) Substituted by 7555832
7555851
Unavailable
33
BOLT(10)
7515514
$7.19
34
WSHR-.813X.406X.105-Y
7555832
$2.39
34
WSHR-.813X.406X.105-Y
7555832
$2.39
35
BOLT(10)
7515307
$3.99
36
TOE,PLASTIC SKI Substituted by 5432209-070
5432209
$40.46
37
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
38
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
39
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
40
STOP,RUBBER
5411094
Unavailable
41
SHOCK,GAS,IFS,SELECT
7041503
Unavailable
41
SHOCK,GAS,IFS,SELECT
7041503
Unavailable
42
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
43
RING,SPRING PRELOAD ADJ.
5431734
$52.60
44
SPRING,COMPRESSION
7041551-067
$74.99
45
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
46
BUSHING,PIVOT,(10)
5010158
$19.99
47
ZERK,FITTING,THREADED(10)
7080433
$1.49
48
BOLT(10) Substituted by 7517583
7515491
Unavailable
48
BOLT(10) Substituted by 7517583
7515491
Unavailable
48
BOLT(10) Substituted by 7517583
7515491
Unavailable
49
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
50
BUSHING-RADIUS ROD,(10)
5010127
$7.99
51
ROD,RAD,LOWER,BLK.
1822383-067
Unavailable
52
NUT-JAM(10)
7542711
$2.39
53
ROD END Substituted by 7061027
7060162
$48.56
54
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
55
BURR,RIVET(50)
7555904
$1.49
56
RIVET, BLIND(50)
7621467
$1.49
56
RIVET, BLIND(50)
7621467
$1.49
57
NUT FLEX,(10)
7542703
Unavailable
58
NUT, LOCK,(10)
7542503
$10.39
59
BUSHING,PIVOT,7/16
5411095
$15.99
60
ROD,RAD,UPPER,FIXED
1822510
$38.89
61
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
