DRIVE TRAIN - 0983357 (4942534253c001)

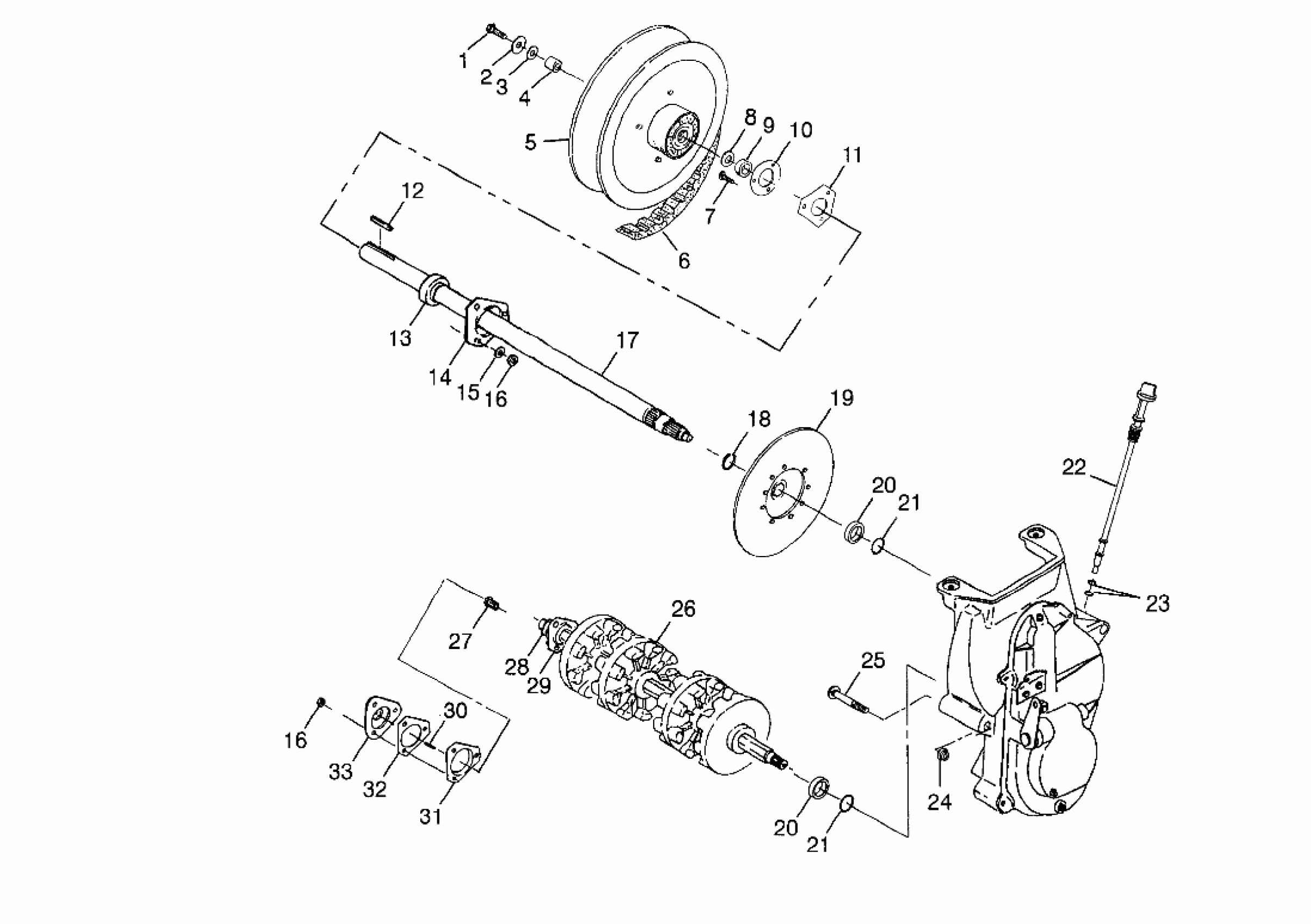

Polaris XLT TOURING - 0983357 DRIVE TRAIN - 0983357 (4942534253c001) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
Spacer
5020913
Unavailable
5
Asm., Driven Clutch (See Footnote) (See Driven Clutch Page C3, Ref. 16)
-------
Unavailable
6
BELT,DRIVE,28 DEG.(5)
3211070
$114.99
7
BOLT(10) Substituted by 7512377
7512394
Unavailable
8
WASHER SPECIAL(10)
7556509
Unavailable
9
Spacer
5020837
$24.99
10
FITTING,LUB/VEN(10)
7080561
$4.79
10
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
11
GASKET,JACKSHAFT,BLK.
5811095
$2.41
12
KEY(10)
7721116
$12.94
13
BEARING
3514525
$31.99
14
FLANGETTE
5222751
$16.44
15
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
16
NUT-5/16-18 NYLOK-Y
7542324
$1.49
16
NUT-5/16-18 NYLOK-Y
7542324
$1.49
17
JACKSHAFT ASM,15 SPL (Incl. 13,18)
1332207
Unavailable
18
RING, RETAINING(10)
7710422
$3.99
19
DISC ASM, BRAKE
1910086
Unavailable
20
SLEEVE, SEAL
5020588
$23.99
20
SLEEVE, SEAL
5020588
$23.99
21
O RING,(10)
5410613
$1.99
21
O RING,(10)
5410613
$1.99
22
DIPSTICK Substituted by 1332143
5431419
Unavailable
23
O-RING
5410675
$1.60
24
NUT(10)
7542423
$3.99
25
BOLT(10)
7515428
$4.79
26
DRIVESHAFT ASM,W/M15 BRG,4 DR (Incl. 27,28,29)
1590266
Unavailable
27
BUSHING METAL SPEEDO
3280019
$11.99
28
BEARING,LUBE. Substituted by 3514525
3514526
$31.75
29
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
30
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
31
FLANGETTE Substituted by 5243529
5241178
$13.75
32
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
33
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
