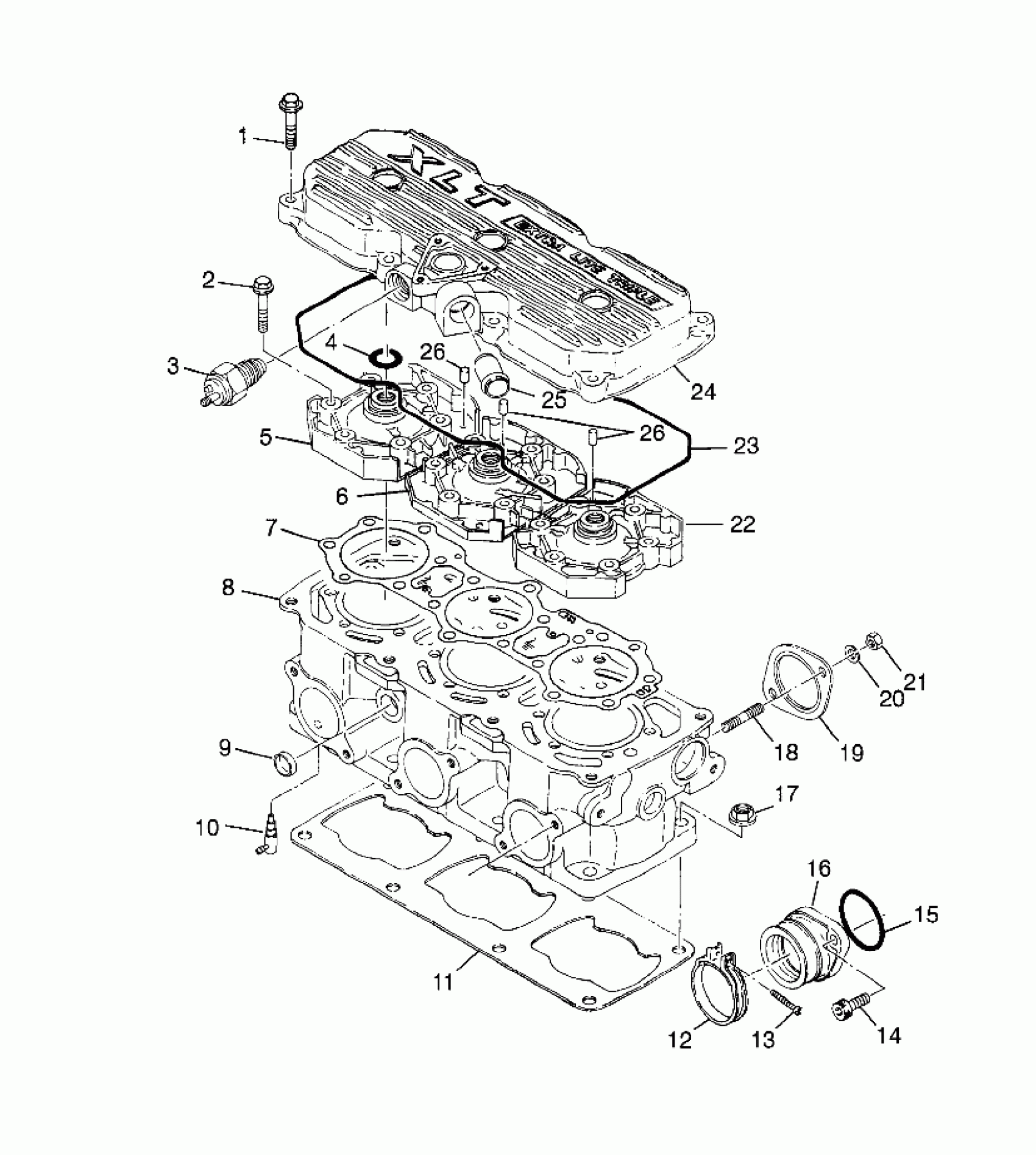

Polaris XLT TOURING - 0983357 CYLINDER - 0983357 (4942534253c009) Diagram
#
Description
Price
1
Bolt, Flange
3084437
Unavailable
2
BOLT, FLANGE ,(10)
3084435
Unavailable
3
SWITCH,THERMAL,IOS (1055 C)
3084284
Unavailable
4
O RING
3085192
Unavailable
5
HEAD,CYL.#3,PTO (PTO)
3085419
$95.13
6
HEAD,CYL.#2,CTR. (Center)
3085418
Unavailable
7
GASKET,HEAD
3085613
Unavailable
8
CYLINDER (Incl. 9,18)
3085017
$834.99
9
PLUG
3084428
$3.51
10
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
11
GASKET, CYLINDER
3084593
Unavailable
12
BAND ASM. (Incl. 13)
3083166
$19.84
13
SCREW,(10)
3081497
$2.39
14
Bolt, Allen
3081330
$3.99
15
O-RING Substituted by 3085619
3084272
Unavailable
16
ADAPTER, CARB. (Incl. 15)
3084673
Unavailable
17
NUT-FLANGE(10)
3082911
$1.99
18
STUD,(10)
3085326
Unavailable
19
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
20
WASHER LOCK ,(10)
3080530
$3.19
21
NUT(10)
3080285
Unavailable
22
HEAD,CYL.#1,MAG. (MAG)
3085417
Unavailable
23
O-RING, (HEADCOVER)
3084434
Unavailable
24
COVER,HEAD (Incl. 25)
3085415
Unavailable
25
Pipe, Water
3083452
Unavailable
26
PIN, DOWEL
3084721
$4.79
26
PIN, DOWEL
3084721
$4.79
