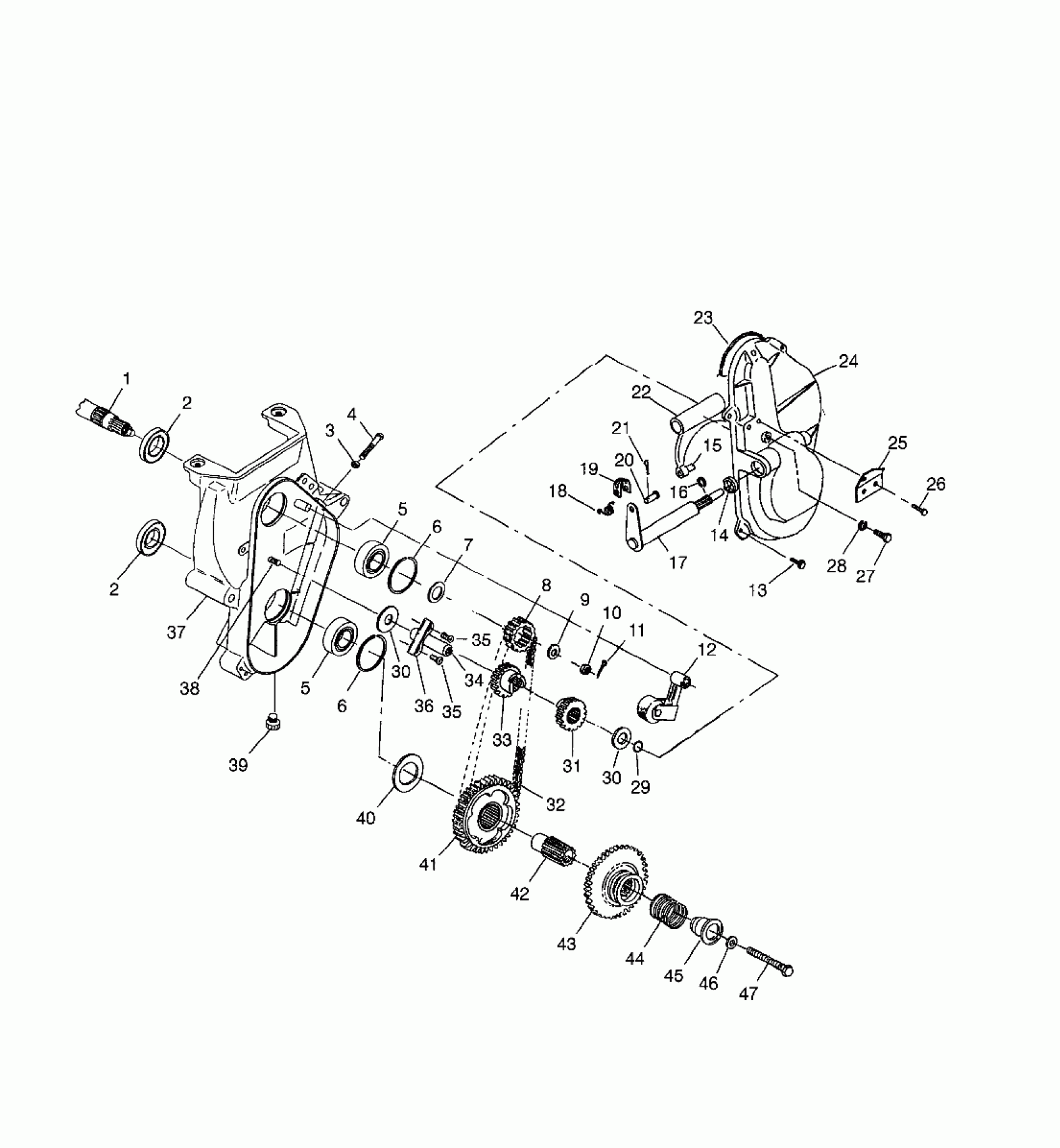

Polaris XLT TOURING - 0983357 CHAINCASE - 0983357 (4942534253b005) Diagram
#
1
Asm., Jackshaft (See Footnote) (See Drive Train Page C1, Ref. 17)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
2
SEAL-OIL
3610030
$20.22
3
NUT(10)
7542404
$1.59
4
SCREW(10)
7515511
$3.99
5
BEARING,BALL
3514309
$15.87
5
BEARING,BALL
3514309
$15.87
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
WASHER(10)
7555917
$2.39
8
SPKT,20T,3/4W,15T SPL,HYVO Substituted by 2900004
3221087
$109.99
9
WASHER, SLOTTED(10)
7571620
$7.19
10
NUT
7542811
Unavailable
11
COTTER PIN(10)
7661401
$1.49
12
PIN,CHAIN TIGHTENER
7662210
Unavailable
12
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
12
BEARING
3553002
$11.99
12
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
12
WHEEL,C/C IDLER
5630123
Unavailable
12
WASHER THRUST(10)
7558702
$1.59
13
SCREW(10)
7512242
$2.39
14
Seal, Oil
3610029
$8.89
15
PIN, SHIFT FORK(10)
7661826
$5.65
16
RING, RETAINER(10)
7710415
$3.99
17
SHAFT, SHIFT
1341093-067
$29.37
18
SPRING,REV.CABLE TENSION
7042044
Unavailable
19
CLEVIS
5222606
Unavailable
20
PIN, CLEVIS(10)
7661830
$3.99
21
PIN-COTTER(10)
7661205
$1.49
22
KIT,SHIFT FORK/SHAFT (Incl. 17,15)
2200363
Unavailable
22
Fork, Shift
5130805
Unavailable
23
GASKET-CHAINCASE
5410277
$24.99
24
COVER,CHAINCASE,REV.
5131753
Unavailable
25
BRKT,CABLE MOUNT
5222502-067
Unavailable
26
SCREW,(10)
7517386
$1.49
27
SCREW(10)
7512492
$1.49
28
WASHER WROUGHT(10)
7558403
$4.79
29
O RING
5410589
$4.99
30
WASHER,THRUST(10)
7555877
$3.99
30
WASHER,THRUST(10)
7555877
$3.99
31
GEAR,SPUR PINION
1341075
$149.99
32
CHAIN,66P,3/4W,HYVO Substituted by 3221113
3224071
$124.99
33
SPROCKET,PINION
1341241
Unavailable
34
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
35
SCREW(10)
7512019
$3.99
35
SCREW(10)
7512019
$3.99
36
BRKT,CHAIN RETENTION
5222298
Unavailable
37
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
38
BOLT(10)
7515477
$34.99
39
PLUG(10)
7052115
$5.65
40
WASHER, REVERSE(10)
7555871
$5.59
41
SPKT,40T,3/4W,REV,HYVO Substituted by 1341227
1341224
Unavailable
42
Coupler, Drive
5130720
Unavailable
43
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
44
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
45
RETAINER,DRIVE COUPLER
5130727
Unavailable
46
LOCK WASHER(10)
7552901
$1.49
47
SCREW, NYLOK(10)
7515348
$4.79
