CARBURETOR - 0983357 (4942534253c012)

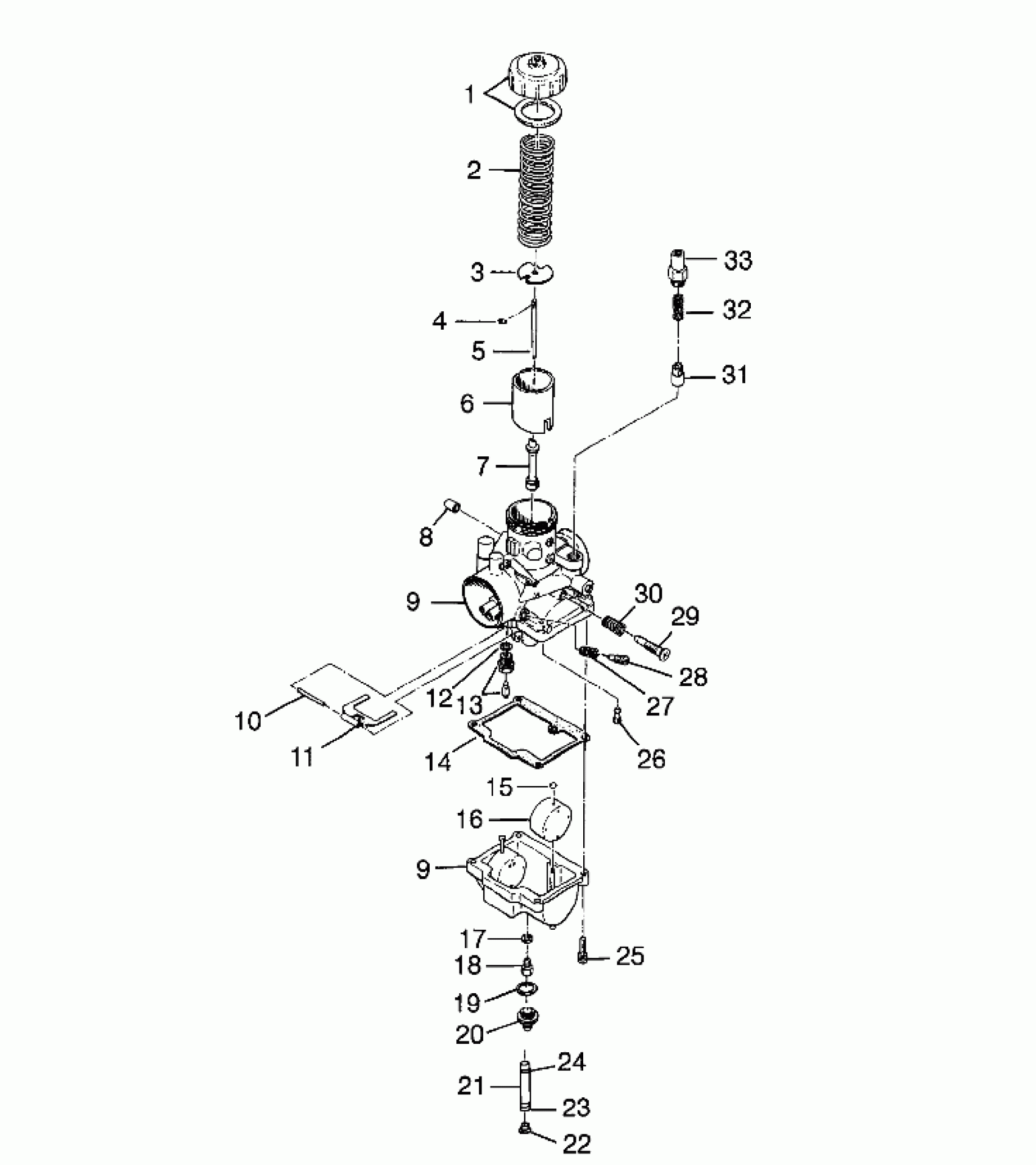

Polaris XLT TOURING - 0983357 CARBURETOR - 0983357 (4942534253c012) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING,THROTTLE
3130439
$13.59
3
PLATE
3130027
$9.70
4
E-RING,(10)
3130508
$6.46
5
JET, NEEDLE (6DP17-3)
3130374
Unavailable
6
VALVE, THROTTLE (2.5)
3130466
Unavailable
7
NEEDLE JET,(Q-4) (480)
3130747
Unavailable
8
CAP
3130479
$14.56
9
CARBURETOR ASM. Substituted by 3130699 (Incl. 1-25,20-10)
3130748
Unavailable
9
CARBURETOR ASM. Substituted by 3130699 (Incl. 1-25,20-10)
3130748
Unavailable
10
PIN, FLOAT
3130361
$8.89
11
ARM,FLOAT
3130018
$24.27
12
PACKING(10)
3130017
$4.03
13
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
14
PACKING,FLOAT CHAMBER
3130020
$16.17
15
CAP,(10)
3130237
$4.03
16
FLOAT ASM.
3130430
$43.56
17
WASHER (10)
3130014
$1.59
18
JET,MAIN,HX.HD#240(10) (#240)
3130127
$7.99
19
O RING
3130239
Unavailable
20
NIPPLE
3130573
$32.37
21
FUEL LINE, 5 FT.
8450045-153
$99.99
22
PLUG,TRAP
5431893
$12.94
23
CLAMP,HOSE(10)
7080544
Unavailable
24
CLAMP,SPRING,(10)
7080534
$1.59
25
SCREW & WASHER(10)
3130025
$3.19
26
JET,PILOT,#40(10) (#40)
3130067
$10.99
27
SPRING,AIR ADJUST
3130012
$8.89
28
SCREW,AIR
3130011
$19.99
29
SCREW,THROTTLE STOP
3130009
$19.99
30
SPRING,THROTTLE ADJ.
3130010
$8.89
31
PLUNGER ASM, STARTER
3130328
$32.37
32
SPRING,PLUNGER
3130006
$8.89
33
HOLDER,GUIDE
3130199
$28.32
