TUNNEL XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772A005)

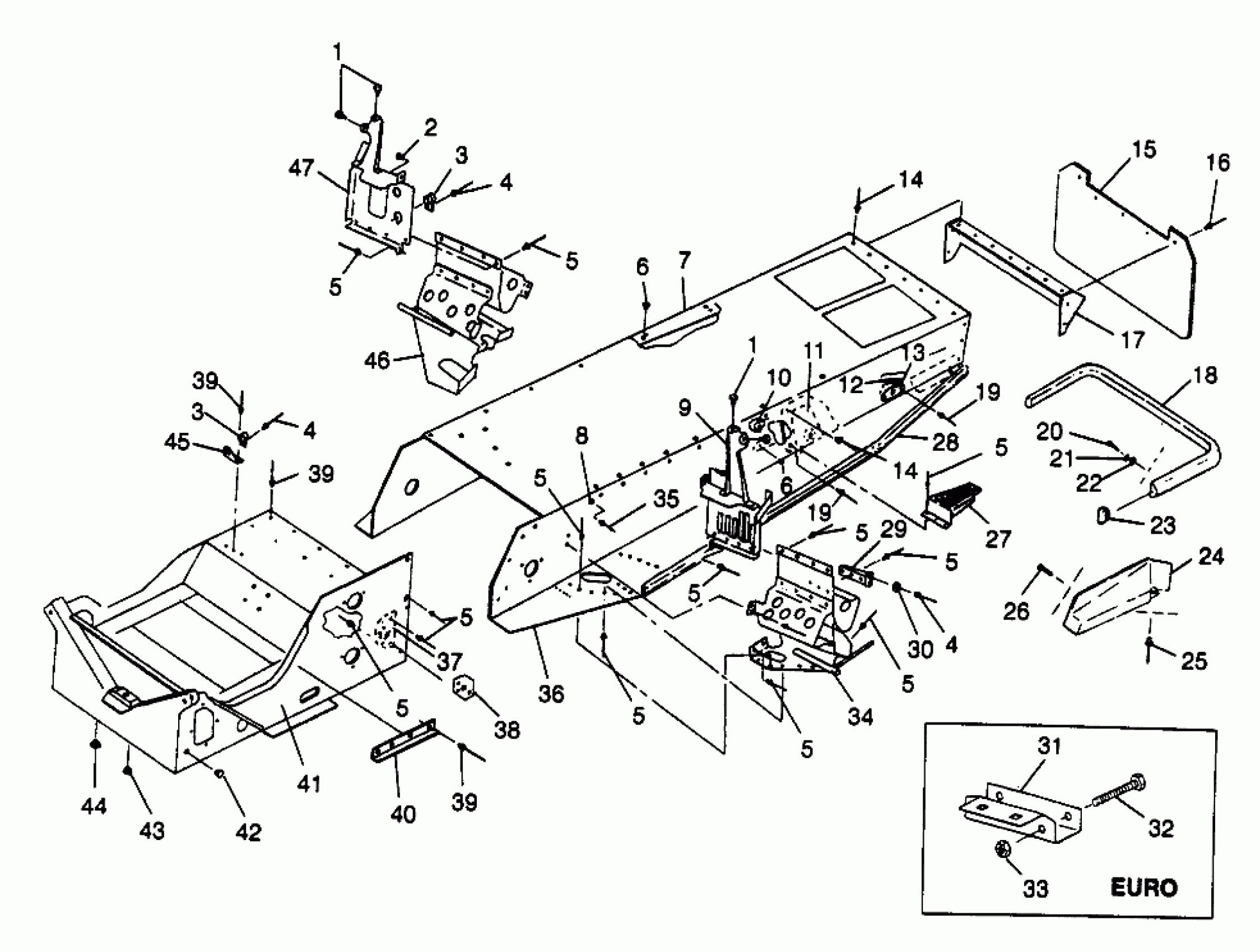

Polaris XLT TOURING - 0973357 TUNNEL XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772A005) Diagram
#
1
BUMPER,HOOD
5410768
$2.95
1
BUMPER,HOOD
5410768
$2.95
2
SCREW(10)
7512057
$2.38
3
GUIDE, RECOIL
5431385
$10.51
3
GUIDE, RECOIL
5431385
$10.51
4
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,3/16X.402(50)
7621432
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
RIVET,INTERLOCK,B(50)
7661638
$1.49
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
7
BRACE,TUNNEL,EV,1 PC,X-12
5241011
Unavailable
8
SNAP-MALE(10)
7080227
Unavailable
9
MT,CONSOLE,LH
1011951-067
$35.51
10
BRACE,LH,LOW.TUNNEL
5241485
$25.59
10
BRACE,RH,LOW.TUNNEL
5241486
$25.59
11
PAD,LH,RR SUSP,X12,BLK
1012439-067
$15.67
11
PAD,RH,RR SUSP,X12,BLK
1012440-067
$13.68
12
BRKT,U-TENSIONER,BLK.
5211590-067
$7.38
13
PLATE,TUNNEL SUPPORT
5211660-067
$3.17
14
RIVET,SEMI-TUBE,(50)
7661841
$1.49
14
RIVET,SEMI-TUBE,(50)
7661841
$1.49
15
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
16
POP RIVET(50)
7621418
$1.49
17
PANEL,R.CLOSEOFF
5240968-067
$36.31
18
BUMPER,REAR Substituted by 2670168-067
2670168
Unavailable
19
RIVET(50)
7661846
$1.99
19
RIVET(50)
7661846
$1.99
20
SCREW(10)
7515159
$4.79
21
LOCK WASHER(10)
7552801
$1.59
22
WASHER(10)
7558301
$1.49
23
CAP,BUMPER
5431995-070
Unavailable
24
SKIRT,SNO.TRNG,LH
5432131-070
$33.91
24
SKIRT,SNO.TRNG,RH
5432132-070
$30.95
25
RIVET(50)
7621472
$1.49
26
SCREW(10)
7512091
$3.99
27
PAD,FOOTREST GRIP
5830114
$35.24
27
FOOTREST,RH, W/GRIP PAD
1012543
$58.39
27
FOOTREST,LH, W/GRIP PAD
1012542
$66.39
28
EDGE,LH,TUNNEL,BLK
5333529-067
Unavailable
28
EDGE,RH,TUNNEL,BLK
5333530-067
Unavailable
29
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
30
STOP,SIDEPANEL BUMPER
5411172
Unavailable
31
BRKT,J HITCH,BLK. (Euro)
5241541-067
Unavailable
32
BOLT(10) Substituted by 7515540 (Euro)
7515492
$4.62
33
NUT(10) (Euro)
7542425
$1.75
34
FOOTREST ASM,LH
1012544
Unavailable
35
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
36
TUNNEL ASM,W/ COOLER,TOUR (Incl. Heat Exchangers)
1012437
Unavailable
37
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
37
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
38
PLATE,F.SUSP,OUT,X-12,BLK
5211746-067
$13.39
39
RIVET-3/16-.090-.290
7661637
$1.49
39
RIVET-3/16-.090-.290
7661637
$1.49
39
RIVET-3/16-.090-.290
7661637
$1.49
40
GUARD,ADAPTER GUIDE
5222857
$12.94
41
DESC NOT_AVAILABLE
1012479
Unavailable
42
PLUG, HOLE(10)
7080416
$5.65
43
PLUG-HOLE
7080398
$4.84
44
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
45
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
46
FOOTREST ASM,RH
1012545
Unavailable
47
MT,CONSOLE,RH
1011952-067
$339.99
