SEAT and GAS TANK XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772A009)

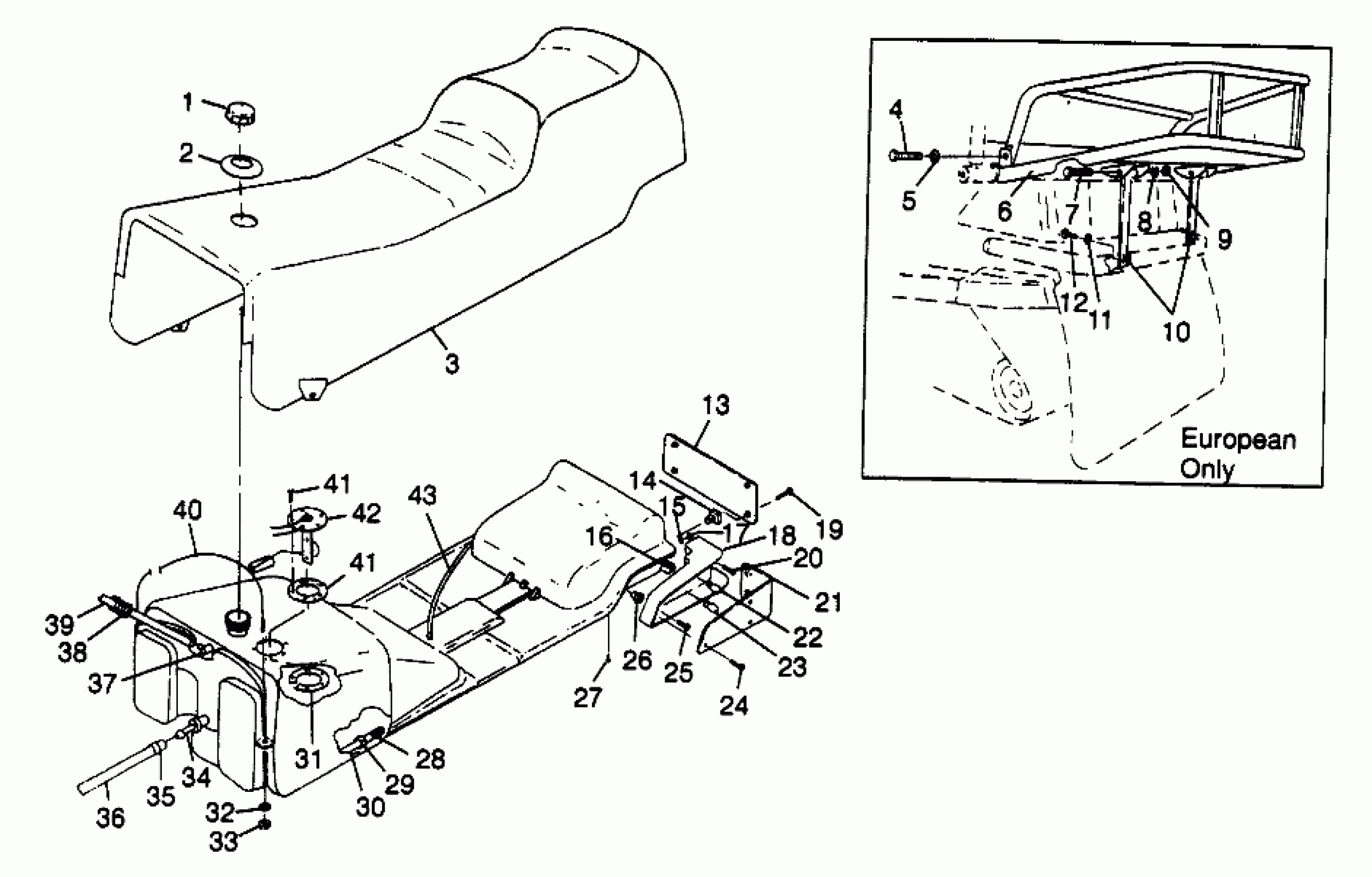

Polaris XLT TOURING - 0973357 SEAT and GAS TANK XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772A009) Diagram
#
1
GASKET, GAS CAP
5810513
$8.89
1
CAP,FUELTANK,W/GASKET
2511226
Unavailable
2
GROMMET,FUELTANK
5410815
Unavailable
3
COVER ASM,SEAT,TOUR
2682137
Unavailable
3
SEAT ASM,TOUR,W/SENDER (Incl. 2, 13-34, 37, 39, 41)
2682136
Unavailable
4
SCREW(10) (Euro)
7515395
Unavailable
5
LOCK WASHER(10) (Euro)
7552901
$1.49
6
RACK, REAR (Euro)
1012393-067
Unavailable
7
BOLT(10) (Euro)
7512249
Unavailable
8
WASHER(10) (Euro)
7558301
$1.49
9
NUT HEX-LOCK(10) (Euro)
7542101
$3.99
10
SUPPORT,REAR RACK (Euro)
1012392-067
Unavailable
11
LOCK WASHER(10) (Euro)
7552801
$1.59
12
SCREW(10) (Euro)
7515181
$2.39
13
REFLECTOR,CTR,SEAT
5432008
Unavailable
14
NUT(10)
7546908
$2.63
15
BURR,RIVET(50)
7555904
$1.49
16
BRKT,SEAT MT,BLK. Substituted by 1012643-067
1012391-067
Unavailable
17
RIVET(50)
7621433
$1.49
18
HOUSING,LH,LENS
5432002
Unavailable
18
HOUSING,RH,LENS
5432003
Unavailable
19
SCREW(10)
7511840
Unavailable
20
SCREW,SELF-TAP(10)
7522004
Unavailable
21
LENS,RH
5432032
$44.51
21
LENS,LH
5432031
Unavailable
22
Bulb, Brakelight
4030045
Unavailable
23
BULB, T/L.
4032084
Unavailable
24
SCREW(10)
7512054
$2.39
25
SCREW(10)
7511954
$1.19
26
NUT, WELL(10)
7541901
$6.39
27
SCREW(10)
7512242
$2.39
28
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
29
RING, COMPRESSION(10)
7080402
$1.60
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
31
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
32
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
33
NUT(10)
7541925
$1.49
34
FITTING - OUTLET(10)
7052023
$24.99
35
CLAMP, HOSE
7080490
Unavailable
36
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
37
FITTING,90 DEG,1/8,(10)
7052095
$4.79
38
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
39
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
40
CABLE,TANK,RETENTION
7080559
Unavailable
41
HDWE.PKG,SEND.UNIT
2410012
Unavailable
41
HDWE.PKG,SEND.UNIT
2410012
Unavailable
42
SENDER,FUEL-LEVEL,W/GASKET
3280227
Unavailable
43
HARNESS,T/L,(TOUR)
2460524
$58.39
