COOLING SYSTEM XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772B008)

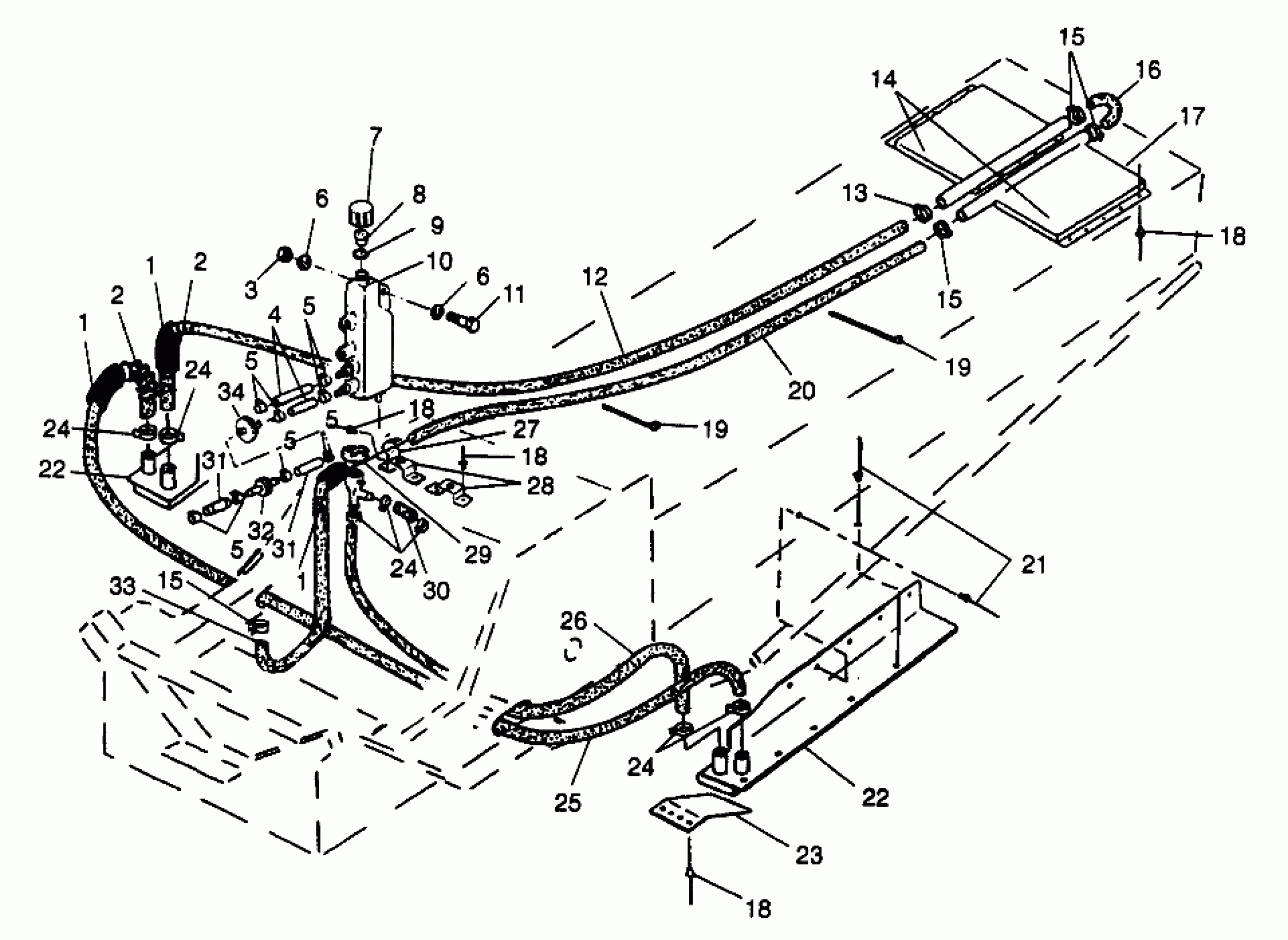

Polaris XLT TOURING - 0973357 COOLING SYSTEM XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772B008) Diagram
#
1
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
1
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
1
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
2
SPRING,HOSE RETAINER
7041079
$4.95
2
SPRING,HOSE RETAINER
7041079
$4.95
3
NUT-LOCK(10)
7542122
$1.49
4
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
5
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
5
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
5
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
5
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
5
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
6
WASHER,WROUGHT(10)
7558302
$1.59
6
WASHER,WROUGHT(10)
7558302
$1.59
7
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
8
PLUG, OVERFLOW,(10)
5431096
$2.02
9
GASKET-OVERFLOW CAP
5810279
$2.41
10
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
11
BOLT(10)
7512240
$3.99
12
HOSE,R.COOLER OUTLET
5411078
Unavailable
13
CLAMP,HOSE,(10) Substituted by 7080843
7080652
Unavailable
14
EXCHANGER,R.COOLING
2511301
$226.99
15
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Gray)
7080564
$10.32
15
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Gray)
7080564
$10.32
15
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Gray)
7080564
$10.32
16
HOSE,COOLING
5410758
Unavailable
17
TAPE,35FT,SEAL,R.COOL.
5811252
Unavailable
18
RIVET-3/16-.090-.290
7661637
$1.49
18
RIVET-3/16-.090-.290
7661637
$1.49
18
RIVET-3/16-.090-.290
7661637
$1.49
18
RIVET-3/16-.090-.290
7661637
$1.49
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
HOSE,R.COOLER INLET,1"
5411079
Unavailable
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
COOLING WELD,LH SIDE
1240020
$134.92
22
COOLING WELD,RH SIDE
1240021
$167.60
22
COOLING WELD,LH SIDE
1240020
$134.92
22
COOLING WELD,RH SIDE
1240021
$167.60
23
GUARD, COOL.EXT.
5222863
$32.99
24
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
24
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
24
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
24
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
25
HOSE,CROSSOVER
5410557
Unavailable
26
HOSE,CROSSOVER,SHORT
5411077
Unavailable
27
BRKT,COOLER HOSE
5241468
Unavailable
28
BRKT,OILTANK,COINED
5241334
$9.70
29
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
30
HOSE,ENG.OUT/FILLER
5411010
$24.27
31
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
31
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
32
VALVE, CHECK
7052038
$10.51
33
SPRING,HOSE RETAINER
7042041
Unavailable
34
FILTER,COOLANT,LGE.
2530024
Unavailable
