CHAINCASE XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772B009)

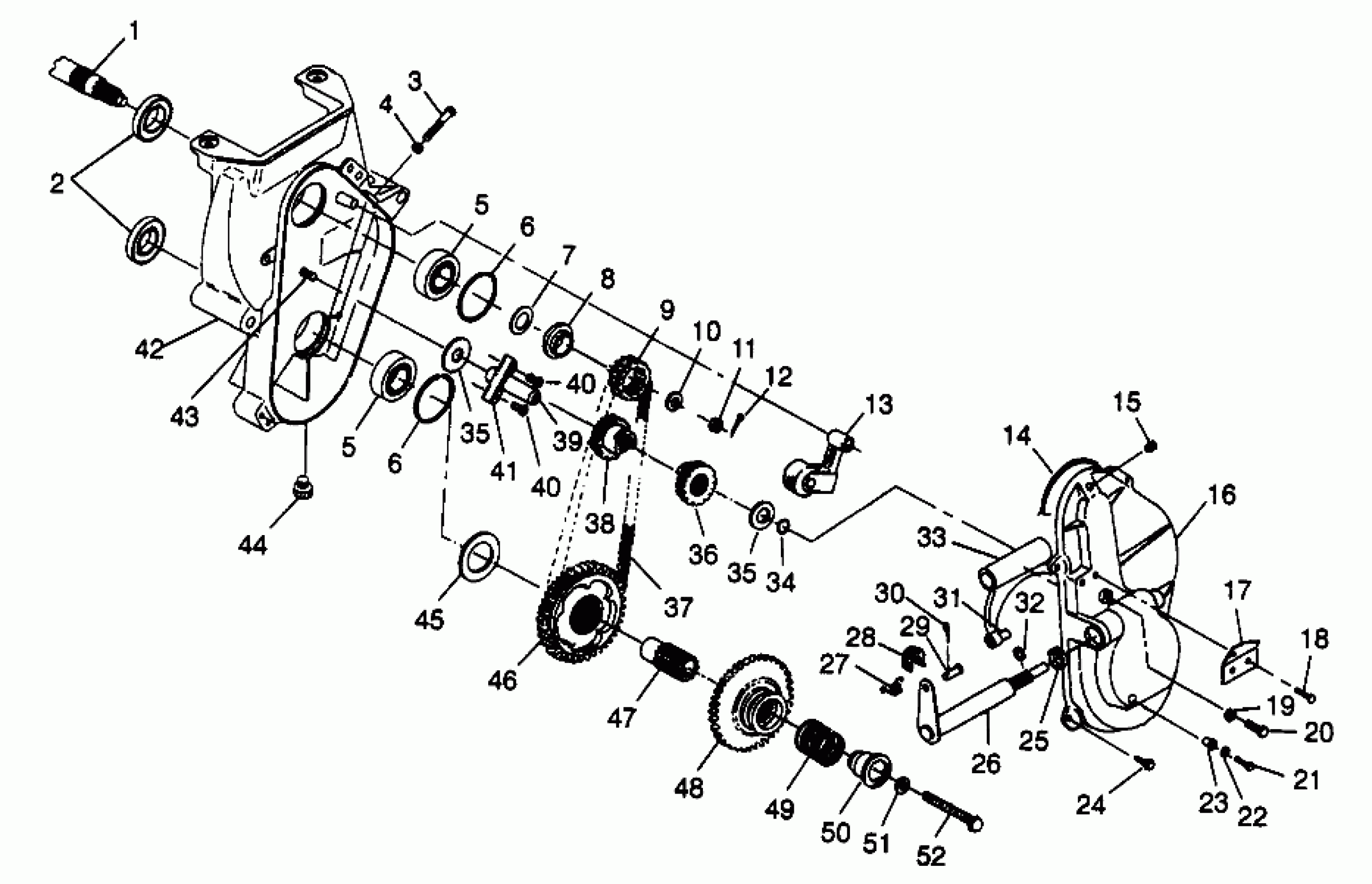

Polaris XLT TOURING - 0973357 CHAINCASE XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772B009) Diagram
#
1
Asm., Jackshaft (See Page, Ref.)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING
3514308
Unavailable
5
BEARING
3514308
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
WASHER(10)
7555917
$2.39
8
SPACER,SPROCKET
5010359
Unavailable
9
SPKT,20T,(13W),15T SPLINE (13W)
3221061
Unavailable
10
WASHER, SLOTTED(10)
7571620
$7.19
11
NUT
7542811
Unavailable
12
COTTER PIN(10)
7661401
$1.49
13
PIN,CHAIN TIGHTENER
7662210
Unavailable
13
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
13
BEARING
3553002
$11.99
13
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
13
WHEEL,C/C IDLER
5630123
Unavailable
13
WASHER THRUST(10)
7558702
$1.59
14
GASKET-CHAINCASE
5410277
$24.99
15
PLUG(10)
7051520
$8.79
16
COVER,CH.CS,REV.MACH. Substituted by 5131753
5131172
Unavailable
17
BRKT,CABLE MOUNT
5222502-067
Unavailable
18
SCREW(10)
7512252
Unavailable
19
WASHER WROUGHT(10)
7558403
$4.79
20
SCREW(10)
7512492
$1.49
21
SCREW(10)
7511909
$3.99
22
WASHER, FLAT(10)
7558201
$5.79
23
NUT-WELL(10)
7541918
Unavailable
24
SCREW(10)
7512242
$2.39
25
Seal, Oil
3610029
$8.89
26
SHAFT, SHIFT
1341093-067
$29.37
27
SPRING,REV.CABLE TENSION
7042044
Unavailable
28
CLEVIS
5222606
Unavailable
29
PIN, CLEVIS(10)
7661830
$3.99
30
PIN-COTTER(10)
7661205
$1.49
31
PIN, SHIFT FORK(10)
7661826
$5.65
32
RING, RETAINER(10)
7710415
$3.99
33
KIT,SHIFT FORK/SHAFT (Incl. 26, 31)
2200363
Unavailable
33
Fork, Shift
5130805
Unavailable
34
O RING
5410589
$4.99
35
WASHER,THRUST(10)
7555877
$3.99
35
WASHER,THRUST(10)
7555877
$3.99
36
GEAR,SPUR PINION
1341075
$149.99
37
CHAIN,66P,(13W),SILENT (13W)
3224051
Unavailable
38
GEAR ASM, PINION
1341076
Unavailable
39
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
40
SCREW(10)
7512019
$3.99
40
SCREW(10)
7512019
$3.99
41
BRKT,CHAIN RETENTION
5222298
Unavailable
42
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
43
BOLT(10)
7515477
$34.99
44
PLUG(10)
7052115
$5.65
45
WASHER, REVERSE(10)
7555871
$5.59
46
SPKT.ASM 40T,13W,REV. (13W), Reverse
1341197
Unavailable
47
Coupler, Drive
5130720
Unavailable
48
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
49
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
50
RETAINER,DRIVE COUPLER
5130727
Unavailable
51
LOCK WASHER(10)
7552901
$1.49
52
SCREW, NYLOK(10)
7515348
$4.79
