- XLT TOURING - 0973357
BACKREST XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772A007)

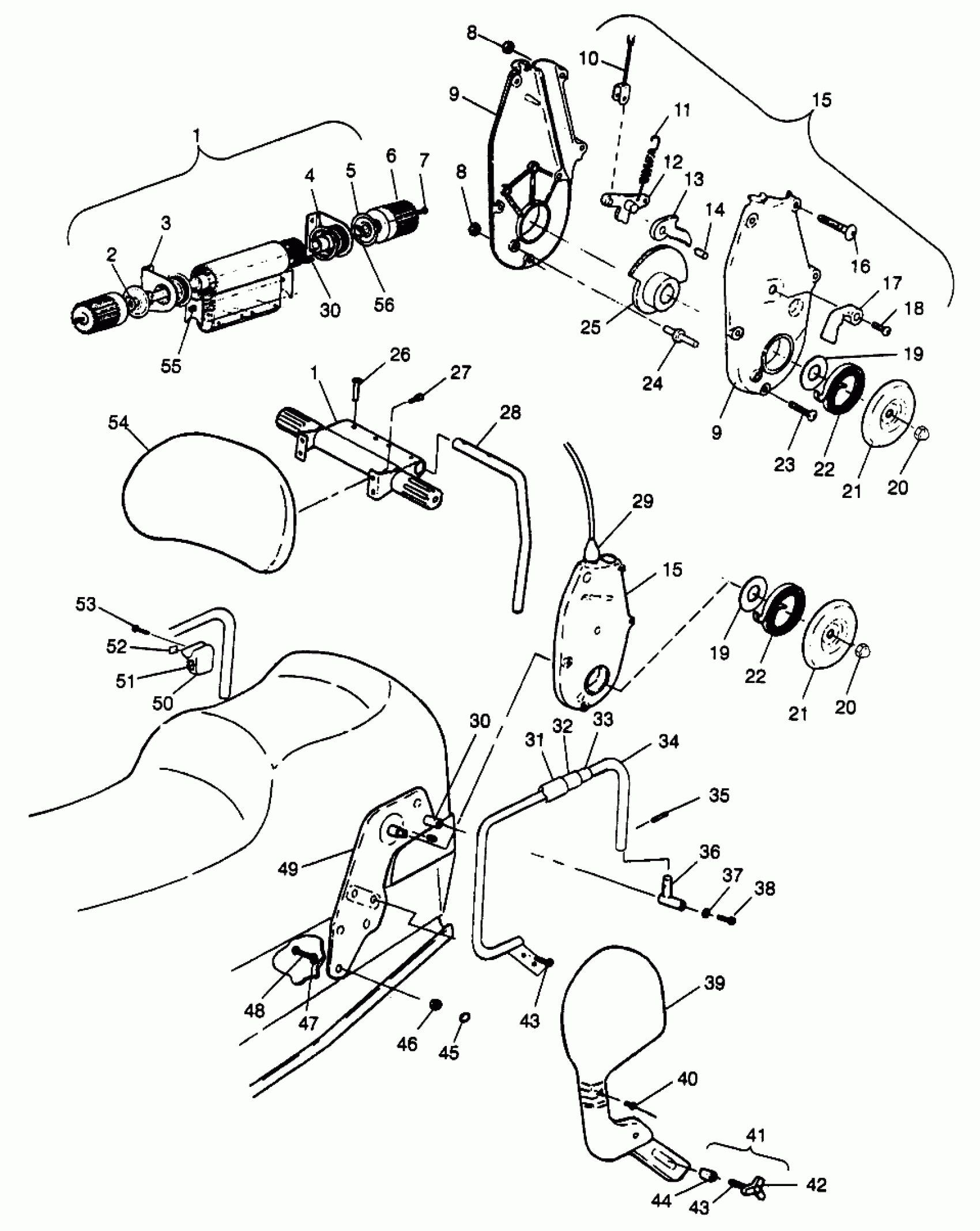

Polaris XLT TOURING - 0973357 BACKREST XLT TOURING 0973357 and EUROPEAN XLT TOURING E973357 (4937723772A007) Diagram
#
1
ADJ.ASM,B'REST CUSHION (Incl. 2-7, 30, 56)
1012534
Unavailable
1
ADJ.ASM,B'REST CUSHION (Incl. 2-7, 30, 56)
1012534
Unavailable
2
WASHER,WAVE(10)
7571635
$4.23
3
BRKTS,MTG,BLK,LH&RH
1012382
$66.60
4
Rotor
5131207
$16.47
5
WASHER,(10)
7571634
$2.39
6
KNOB, ADJ.
5432112
Unavailable
7
SCREW,(10)
7512087
$1.83
8
NUT(10)
7542124
Unavailable
8
NUT(10)
7542124
Unavailable
9
HSG,RH (ADJ.B'REST)
5131212
$62.39
9
HSG,LH,(ADJ. B'REST)
5131211
$62.39
9
HSG,RH (ADJ.B'REST)
5131212
$62.39
9
HSG,LH,(ADJ. B'REST)
5131211
$62.39
10
CABLE ASM,ACTUATOR
7080582
$87.19
11
SPRING,LOCKING
7041411
$25.59
12
PAWL ASM,LH,LOCK.,MASTER
1012320
$40.48
12
PAWL ASM,RH,LOCK,MASTER
1012321
Unavailable
13
SECTOR,ENGAGEMENT
5211610
Unavailable
14
PIN,PIVOT
5020806
Unavailable
15
ADJUSTER ASM,B'REST Substituted by 1013409 (Incl. 8-18, 23-25)
1012536
Unavailable
15
ADJUSTER ASM,B'REST Substituted by 1013409 (Incl. 8-18, 23-25)
1012536
Unavailable
16
BOLT ,(10)
7515171
Unavailable
17
LEVER,LOCKING.BLK. Substituted by 5631126-067
5630561-067
Unavailable
18
SCREW,(10)
7516915
$1.06
19
WASHER,THRUST(10)
7555926
$1.99
19
WASHER,THRUST(10)
7555926
$1.99
20
NUT,(10)
7547015
$6.23
20
NUT,(10)
7547015
$6.23
21
COVER,SPRING,1/2" ID,BLK
5241935-067
$4.95
21
COVER,SPRING,1/2" ID,BLK
5241935-067
$4.95
22
SPRING,TORSION,PRELOAD
7041412
Unavailable
22
SPRING,TORSION,PRELOAD
7041412
Unavailable
23
Bolt
7515170
$2.39
24
STUD-LIMITER
5020822
$66.39
25
GEAR,STATIONARY
1012537
Unavailable
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
27
SCREW(10)
7515136
$1.49
28
TUBE,B'REST MT,BLK
5224761-067
$29.75
29
COVER,CABLE,BLK
5432259
Unavailable
30
KEY,SQUARE(10)
7721118
$3.59
30
KEY,SQUARE(10)
7721118
$3.59
31
TUBE,SHRINK
5521407
$3.33
32
HEATER ASM,PASS.HANDLE
2460526
Unavailable
33
TAPE,FOAM,3.125X4
5811454
Unavailable
34
HANDLE,GRAB,LH.
1012548-067
Unavailable
34
HANDLE,GRAB,RH.
1012549-067
Unavailable
35
PIN, SPRING(10)
7661849
Unavailable
36
KNUCKLE, BLK
1012541-067
Unavailable
37
WASHER(10)
7555734
$1.49
38
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
39
DEFLECTOR,AIR,LH
5432078
$26.39
39
DEFLECTOR,AIR,RH
5432079
$27.19
40
RIVET,(50)
7621341
Unavailable
41
KNOB,GRAB HANDLE (Incl. 42-44)
1012385
Unavailable
42
Knob, Backrest
5630386-067
$20.22
43
BOLT(10) Substituted by 7515339
7515328
Unavailable
43
BOLT(10) Substituted by 7515339
7515328
Unavailable
44
SPACER,ADJ.KNOB
5432123
$5.83
45
CAPLUG, 3/4"(10)
7080592
Unavailable
46
NUT, NYLOK(10)
7542327
$4.79
47
PALNUT,(10)
7547030
$4.79
48
BOLT(10)
7512377
$4.79
49
MAINFRAME,LH,BLK
1012539-067
Unavailable
49
MAINFRAME,RH,BLK
1012540-067
Unavailable
50
HOUSING-SWITCH
5432120
$22.23
51
HARNESS,PASS.GRP.HTR.SW.
2460537
$66.39
52
DECAL,HIGH/LOW/OFF
7075418
Unavailable
53
SCREW,TAPPING,(10)
7527815
$3.19
54
CUSHION, BACKREST
2682158
Unavailable
54
COVER ASM,BACKREST
2681833
Unavailable
55
SCREW(10)
7511866
$4.79
56
E RING(10)
7710901
$7.19
