TUNNEL ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917A006)

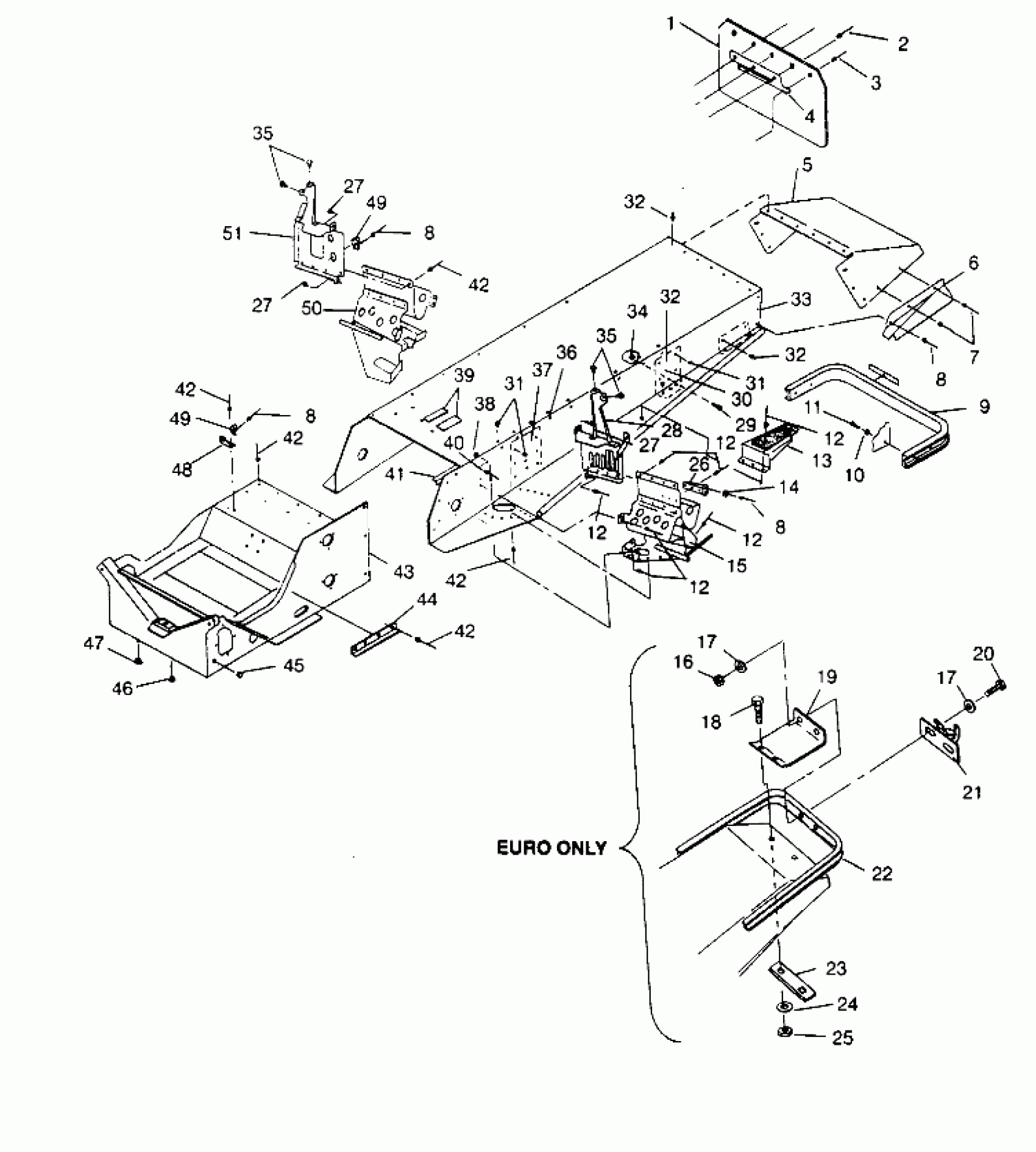

Polaris XLT TOURING - 0952857 TUNNEL ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917A006) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
2
RIVET(50)
7661641
Unavailable
3
POP RIVET(50)
7621418
$1.49
4
RETAINER, FLAP Substituted by 5241874-067
5222659-067
Unavailable
5
CLOSE-OFF ASM,REAR,BLK.
1012232-067
Unavailable
6
SKIRT,LH,SNO,LAV.
5431627-171
$24.70
6
SKIRT,RH,SNO,LAV.
5431645-171
Unavailable
7
RIVET(50)
7621472
$1.49
8
RIVET,3/16X.402(50)
7621432
$1.49
8
RIVET,3/16X.402(50)
7621432
$1.49
8
RIVET,3/16X.402(50)
7621432
$1.49
8
RIVET,3/16X.402(50)
7621432
$1.49
9
BUMPER ASM, REAR
2670122
Unavailable
10
WASHER(10)
7558301
$1.49
11
BOLT(10)
7512240
$3.99
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
PAD,LH FOOT SAFETY
5830007
$7.89
13
PAD,RH FOOT SAFETY
5830008
$4.92
13
FOOTREST,LH R,BLK.
5220893-067
Unavailable
13
FOOTREST,RH R,BLK.
5220894-067
$32.15
14
STOP, BUMPER
5410826
Unavailable
15
FOOTREST ASM,LH,BLK. Substituted by 1012544
1011934
Unavailable
16
NUT-HEX-3/8-16 A ZTB NYL (Euro Only)
7542451
$1.49
17
WASHER(10) (Euro Only)
7555806
$1.49
17
WASHER(10) (Euro Only)
7555806
$1.49
18
BOLT(10) (Euro Only)
7512377
$4.79
19
BRKT, HITCH (Euro Only)
5222605-067
$11.51
20
BOLT(10) (Euro Only)
7515521
$3.99
21
Asm., Hitch (Euro Only)
-------
Unavailable
22
BUMPER,REAR,SCAND.,BLK. (Euro Only)
5224421-067
$21.43
23
PLATE, BACKING (Euro Only)
5211122-067
Unavailable
24
WASHER-.344X.688X.063 FL-Y (Euro Only)
7558402
$1.49
25
NUT-5/16-18 NYLOK-Y (Euro Only)
7542324
$1.49
26
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
27
SCREW(10)
7512057
$2.38
27
SCREW(10)
7512057
$2.38
27
SCREW(10)
7512057
$2.38
28
MT,CONSOLE,LH
1011951-067
$35.51
29
BOLT, BLACK
7515494
$3.03
30
BRKT,RH.REAR SUSP.
1011906-067
Unavailable
30
BRKT,LH.REAR SUSP
1011905-067
Unavailable
31
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
31
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
32
RIVET ,(50)
7661829
Unavailable
32
RIVET ,(50)
7661829
Unavailable
32
RIVET ,(50)
7661829
Unavailable
33
TUNNEL ASM,BLK,LIQ.SKS
1012098
$366.65
34
NUT(10)
7542423
$3.99
35
BUMPER,HOOD
5410768
$2.95
35
BUMPER,HOOD
5410768
$2.95
36
NUT,SERT(10)
7541938
Unavailable
37
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
38
SNAP-MALE(10)
7080227
Unavailable
39
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
40
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
41
BRACE,REINF.TUNNEL
5240242
Unavailable
42
RIVET-3/16-.090-.290
7661637
$1.49
42
RIVET-3/16-.090-.290
7661637
$1.49
42
RIVET-3/16-.090-.290
7661637
$1.49
42
RIVET-3/16-.090-.290
7661637
$1.49
42
RIVET-3/16-.090-.290
7661637
$1.49
43
BULKHEAD,BLK.
1012193-067
$396.83
44
GUARD,ADAPTER GUIDE
5222857
$12.94
45
PLUG, HOLE(10)
7080416
$5.65
46
PLUG-HOLE
7080398
$4.84
47
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
48
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
49
GUIDE, RECOIL
5431385
$10.51
49
GUIDE, RECOIL
5431385
$10.51
50
FOOTREST ASM,RH,BLK. Substituted by 1012545
1011935
Unavailable
51
MT,CONSOLE,RH
1011952-067
$339.99
