STEERING ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917B005)

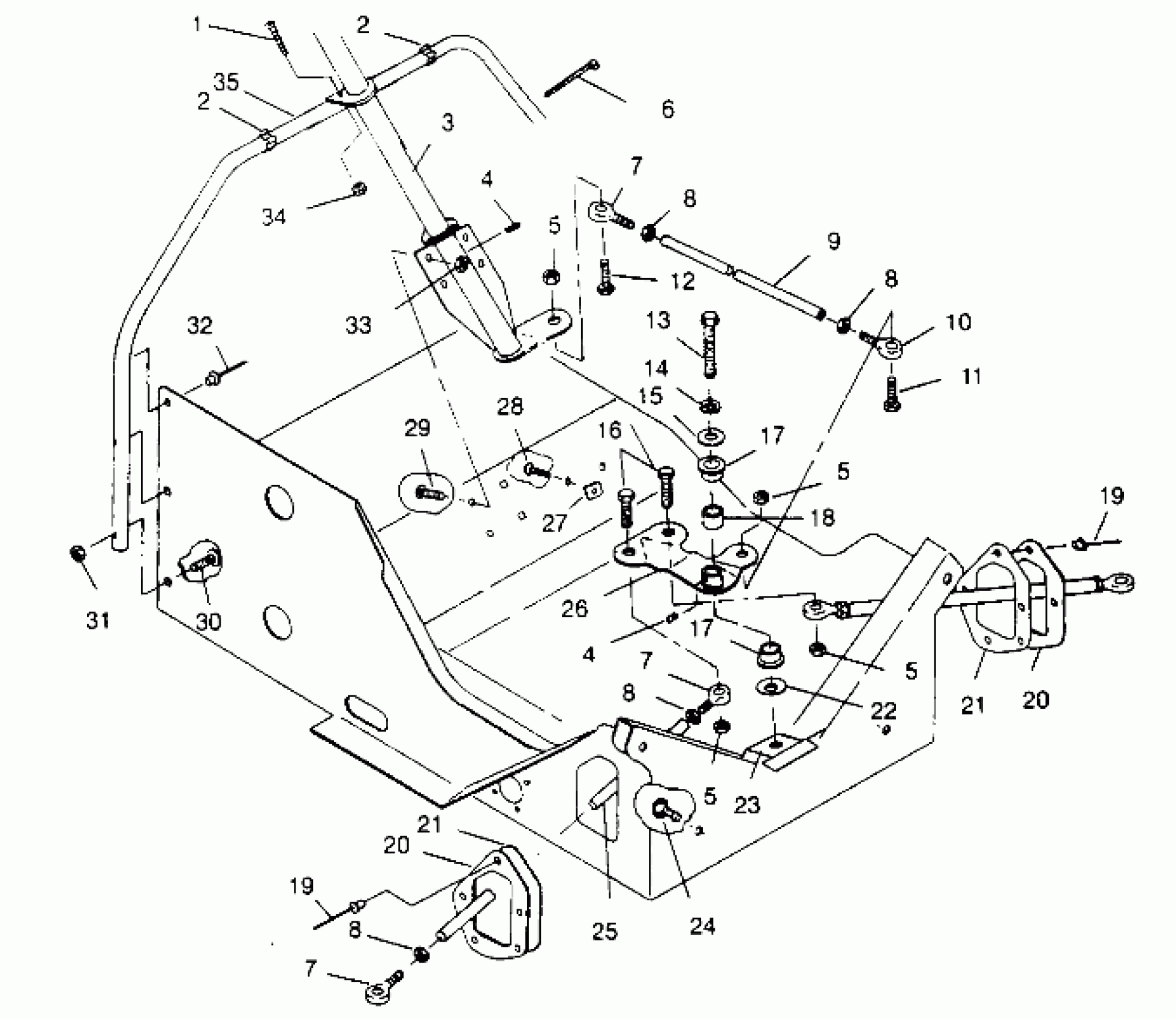

Polaris XLT TOURING - 0952857 STEERING ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917B005) Diagram
#
1
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
2
CLIP(10)
7080278
$2.63
2
CLIP(10)
7080278
$2.63
3
POST,STRG,BLK.
1823165-067
Unavailable
4
FITTING,LUB/VEN(10)
7080561
$4.79
4
FITTING,LUB/VEN(10)
7080561
$4.79
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
6
STRAP, BLK
7080272
Unavailable
7
ROD END, LH Substituted by 7060166
7060151
$48.56
7
ROD END, RH Substituted by 7060167
7060152
$48.56
7
ROD END, LH Substituted by 7060166
7060151
$48.56
7
ROD END, RH Substituted by 7060167
7060152
$48.56
7
ROD END, LH Substituted by 7060166
7060151
$48.56
7
ROD END, RH Substituted by 7060167
7060152
$48.56
8
NUT HEX(10)
7542401
$2.39
8
NUT
7542424
$1.49
8
NUT HEX(10)
7542401
$2.39
8
NUT
7542424
$1.49
8
NUT HEX(10)
7542401
$2.39
8
NUT
7542424
$1.49
8
NUT HEX(10)
7542401
$2.39
8
NUT
7542424
$1.49
9
ROD, DRAG, LINK
5333144
Unavailable
10
ROD END,LH Substituted by 7060164
7060124
$48.56
11
BOLT(10)
7512404
$3.99
12
BOLT(10) Substituted by 7515492
7512410
Unavailable
13
BOLT(10)
7512681
Unavailable
14
LOCK WASHER(10)
7553201
$3.99
15
WASHER(10)
7555721
$1.49
16
BOLT(10)
7515528
$8.79
17
BUSHING
3563907
$3.99
17
BUSHING
3563907
$3.99
18
BUSHING
5010322
Unavailable
19
POP RIVET(50)
7621323
$1.49
19
POP RIVET(50)
7621323
$1.49
20
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
20
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
21
BOOT,TIEROD
5410761
$12.94
21
BOOT,TIEROD
5410761
$12.94
22
WASHER,WAVE(10)
7555735
$3.99
23
BLOCK, CTR.STRG.
5130889
$139.68
24
CLIP, PLASTIC(10)
4020139
$4.79
25
TIEROD
5020636-067
Unavailable
26
STRG.ASM,CTR.
1822217
$56.65
27
SPEED NUT(10)
7670021
$6.99
28
BOLT-CARRIAGE(10)
7512263
$3.99
29
BOLT(10) Substituted by 7512377
7512394
Unavailable
30
BOLT-CARRIAGE(10)
7512275
$3.99
31
NUT, LOCK(10)
7542103
$5.59
32
RIVET-3/16-.090-.290
7661637
$1.49
33
NUT-5/16-18 NYLOK-Y
7542324
$1.49
34
NUT(10)
7542124
Unavailable
35
HOOP,STRG,BLK.
1011929-067
$28.19
