- XLT TOURING - 0952857
SEAT and GAS TANK ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E9 (4929172917A008)

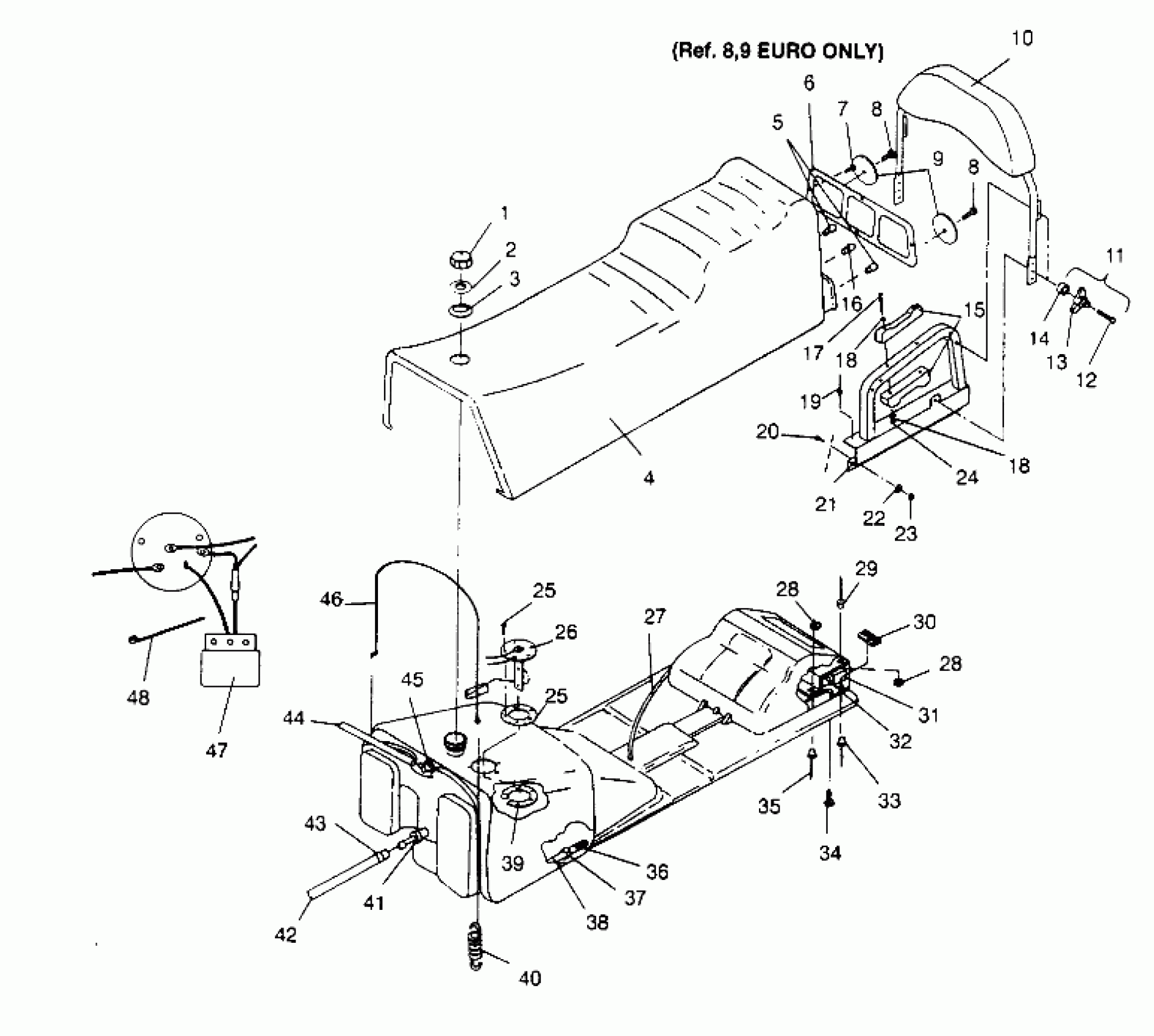

Polaris XLT TOURING - 0952857 SEAT and GAS TANK ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E9 (4929172917A008) Diagram
#
1
CAP,FUELTANK,W/GASKET
2511226
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410842
Unavailable
4
COVER,SEAT,2-UP
2681813
Unavailable
4
SEAT ASM, 2-UP (Incl. 4-8, 23-33, 35, 42)
2681815
Unavailable
5
BULB,TAILLIGHT(10)
4030024
$4.84
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
SCREW(10) (EURO Only)
7511856
Unavailable
8
SCREW(10) (EURO Only)
7511856
Unavailable
9
REFLECTOR (EURO Only)
5430781
Unavailable
10
COVER,BACKREST ASM. Substituted by 2681265
2681790
Unavailable
10
BACKREST ASM. Substituted by 2681356
2681789
Unavailable
11
KNOB ASM,BACKREST
2670130
Unavailable
12
SCREW(10)
7515352
Unavailable
13
Knob, Backrest
5630386-067
$20.22
14
SPACER
5431285
Unavailable
15
GRIP, HAND Substituted by 5433383
5431015
$19.68
16
Bulb, Brakelight
4030045
Unavailable
17
SCREW(10)
7510504
$6.76
18
WASHER(10)
7555783
$3.99
18
WASHER(10)
7555783
$3.99
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
BOLT(10) Substituted by 7512325
7515363
Unavailable
21
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
21
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
22
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
23
NUT, NYLOK(10)
7542327
$4.79
24
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
25
HDWE.PKG,SEND.UNIT
2410012
Unavailable
25
HDWE.PKG,SEND.UNIT
2410012
Unavailable
26
SEND.UNIT,W/HDWE.PKG.
2410015
Unavailable
27
HARNESS,TAILLIGHT
2460398
Unavailable
28
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
28
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
29
RIVET, BLIND(50)
7621467
$1.49
30
NUT,RETAINER-WELD.(10)
7542147
$17.59
31
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
32
COVER,T/L PROTECTOR
5431436
$21.43
33
RIVET(50)
7621301
$3.99
34
SCREW(10)
7512242
$2.39
35
RIVET(50)
7621464
$3.99
36
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
37
RING, COMPRESSION(10)
7080402
$1.60
38
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
39
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
40
SPRING-EXHAUST(10)
7042029
$4.84
41
FITTING - OUTLET(10)
7052023
$24.99
42
FUEL LINE, 5 FT.
8450045-153
Unavailable
43
CLAMP, HOSE
7080490
Unavailable
44
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
45
FITTING,(10)
7052077
$6.39
46
CABLE,TANK RETENTION
7080473
Unavailable
47
RECTIFIER, FUEL (LR-51)
4060094
$17.46
48
STRAP, BLK
7080272
Unavailable
