OIL TANK/AIR BOX ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E95 (4929172917C006)

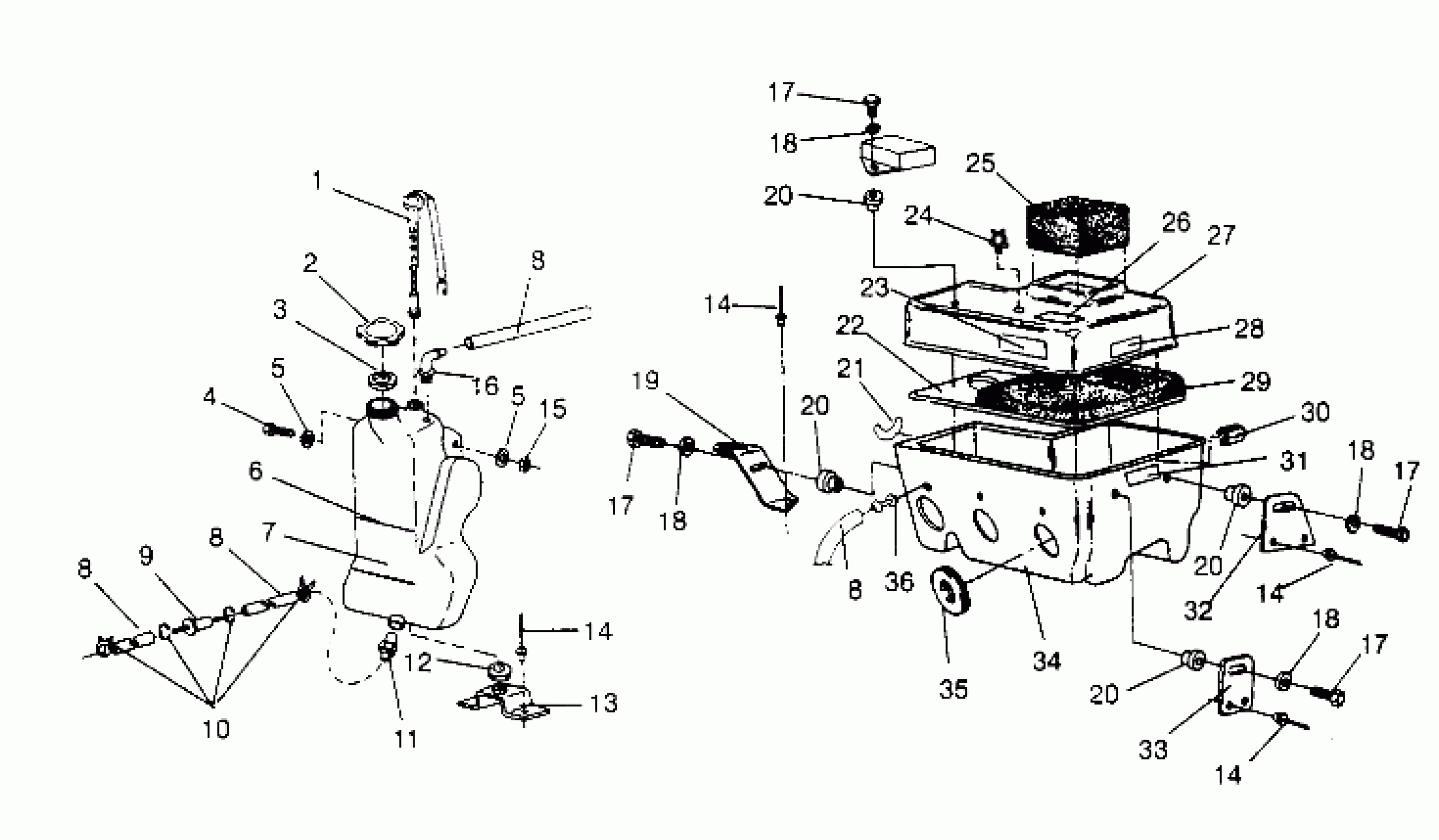

Polaris XLT TOURING - 0952857 OIL TANK/AIR BOX ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E95 (4929172917C006) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
7
Tank, Oil
5431437
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
10
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
11
FITTING, OUTLET
7052042
$8.99
12
GROMMET RUBBER
5410021
Unavailable
13
BRACKET
5223985
Unavailable
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
15
NUT-LOCK(10)
7542122
$1.49
16
FITTING,90 DEG,1/8,(10)
7052095
$4.79
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
21
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
22
PLATE, AIR SILENCER
5850102
Unavailable
23
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
24
CLAMP,WIRE ROUTING(10)
7080409
$2.39
25
DUCT ASM,AIR
2620057
$40.46
26
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
27
SILENCER.UP.AIR,DRILLED
5431879
Unavailable
28
DECAL, GREASING [No Longer Available]
7073426
$7.27
29
BAFFLE ASM.
1253124
Unavailable
30
CLIP, AIR BOX,(10)
7670055
$7.99
31
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
32
BRACKET, SILENCER
5211274
$9.70
33
BRKT,FRT.SILENCER
5211296-067
$4.38
34
SILENCER,INTAKE,DRILLED
5431878
Unavailable
35
BOOT,AIR SILENCER MOD.
5410793
Unavailable
36
FITTING,(10)
7052077
$6.39
