NOSEPAN ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917A011)

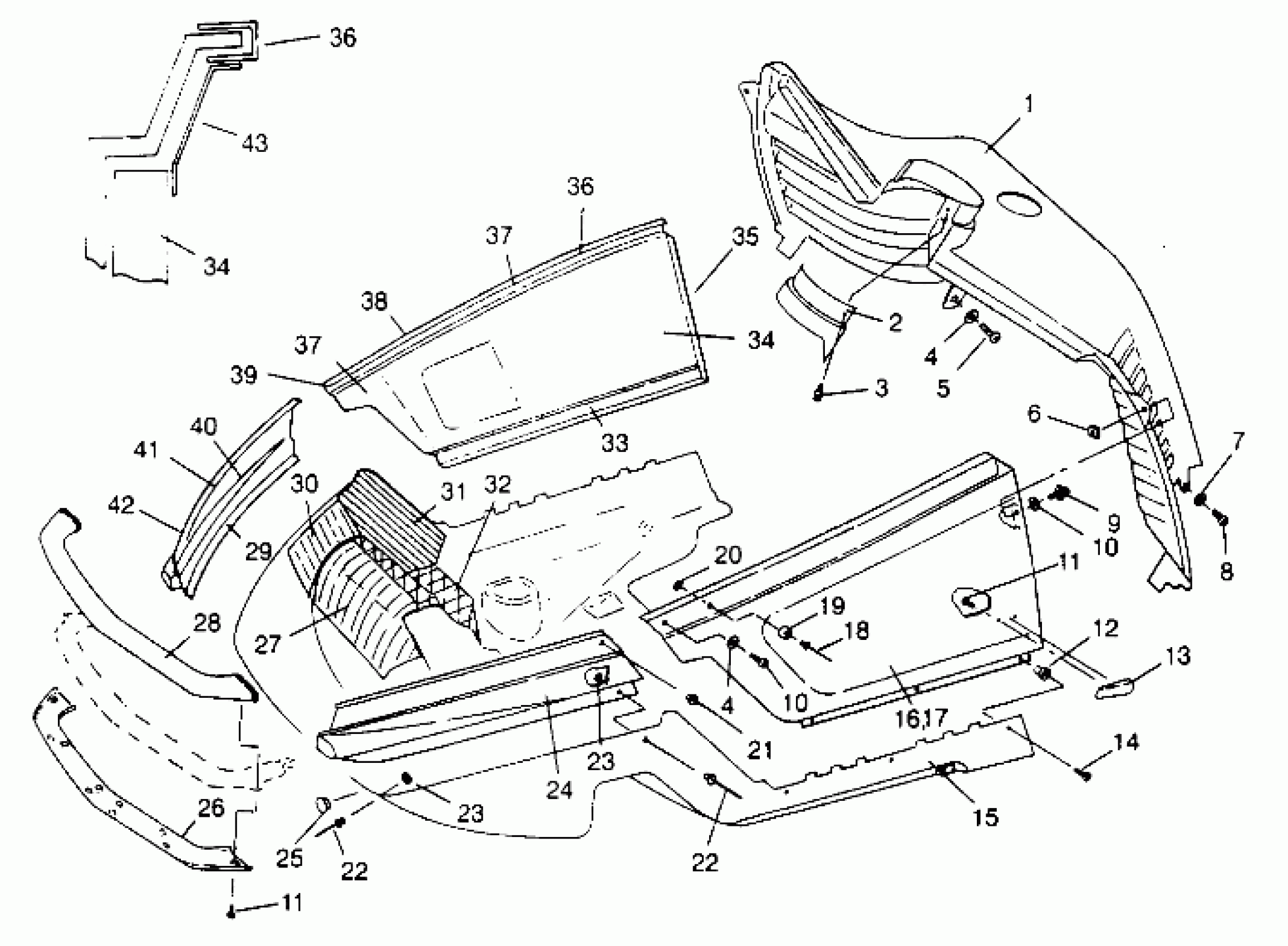

Polaris XLT TOURING - 0952857 NOSEPAN ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917A011) Diagram
#
1
CONSOLE,EUROPE (Euro)
5431697
Unavailable
1
CONSOLE,BASIC
5431467
Unavailable
2
COVER,CONSOLE
5431535
$54.35
3
RIVET,PLASTI-LOC.(50)
7621509
$1.49
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
5
SCREW(10)
7512252
Unavailable
6
NUT,RETAINER(10)
7542138
Unavailable
7
WASHER(10)
7555792
$4.79
8
SCREW(10)
7512069
Unavailable
9
RETAINER,HOODLATCH
5431502
$12.94
10
WASHER,RUBBER(10)
7555884
$5.70
10
WASHER,RUBBER(10)
7555884
$5.70
11
SCREW(10)
7511861
Unavailable
11
SCREW(10)
7511861
Unavailable
12
NUT-WELL(10)
7541923
$5.59
13
BUMPER,SIDE PANEL Substituted by 5432456
5431662
Unavailable
14
SCREW(10)
7512279
$1.49
15
NOSEPAN, BLK.
5431899-070
$253.97
16
PANEL,LH,SIDE,BLK.
5431742-070
$131.99
17
FOAM,LH,SIDEPANEL
5811076
Unavailable
18
RIVET(50)
7621315
$3.99
19
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
20
RIVET BURR(50)
7555756
$2.99
21
RIVET(50)
7621472
$1.49
22
RIVET, BLIND(50)
7621467
$1.49
22
RIVET, BLIND(50)
7621467
$1.49
23
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
23
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
24
BUMPER,LH SIDE,BLK.
5431492-070
Unavailable
25
PLUG,NOSEPAN HOLE
5410820
$15.99
26
COVER,F.BUMP.BOTTOM
5431481
Unavailable
27
FOIL,F.SHOCK TOWER
5810937
Unavailable
28
COVER,F.BUMP.TOP,BLK.
5431480-070
Unavailable
29
FOIL,SIDE BUMP,LOWER
5811085
Unavailable
30
FOIL,SIDE.SHOCKTOWER
5810939
Unavailable
31
FOIL,RH,PAN
5810908
Unavailable
32
FOIL,LOW.SIDEPANEL
5811071
Unavailable
33
TAPE,FOIL,100 CM. (Service)
8360044-100
Unavailable
34
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
34
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
35
DESC NOT_AVAILABLE
5431743-070
Unavailable
36
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
36
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
37
FOIL,FR.SIDEPANEL
5811072
Unavailable
37
FOIL,FR.SIDEPANEL
5811072
Unavailable
38
PANEL,RH,SIDE,BLK. ( Incl. 40-33)
2610008-070
Unavailable
39
FOIL,TOP,INNER,SIDEPANEL
5811074
Unavailable
40
FOIL,SIDE BUMP,MIDDLE
5811086
Unavailable
41
FOIL,SIDE BUMP,UPPER
5811084
Unavailable
42
BUMPER,RH SIDE/FOIL,BLK. Substituted by 2610010-070
2610006-070
Unavailable
43
FOIL,UP.SIDEPANEL
5811073
Unavailable
