HOOD ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917A013)

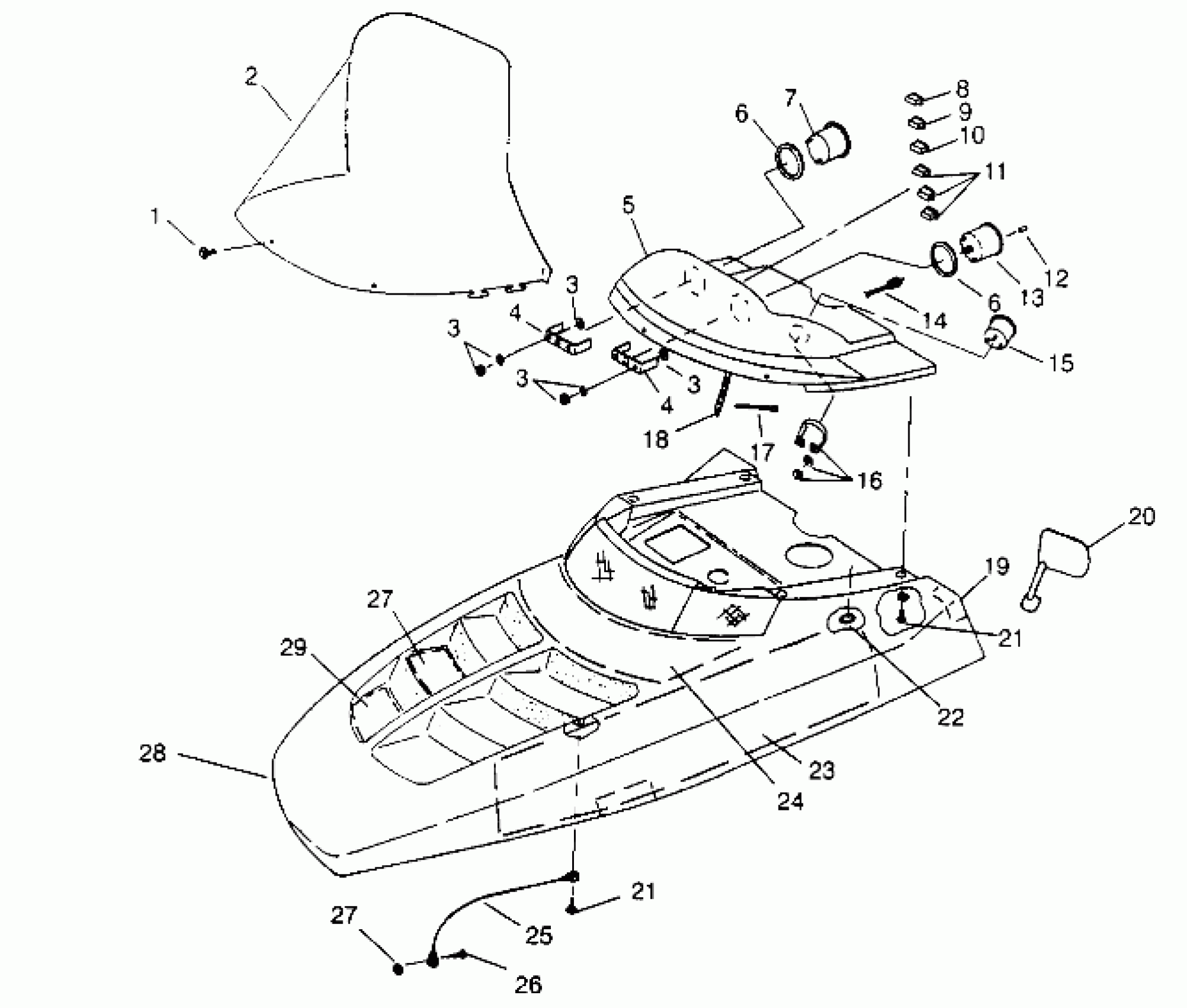

Polaris XLT TOURING - 0952857 HOOD ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917A013) Diagram
#
1
RIVET,PLASTI-LOC.(50)
7621509
$1.49
2
WNDSHLD,HI CLEAR(TRL.DLX/XLT TOUR)
5431465
$159.99
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,SPEEDO/TACH
3280153
Unavailable
4
BRKT,SPEEDO/TACH
3280153
Unavailable
5
HSG.ASM,INST. (Incl. Warning Decals)
2652129
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
7
TACH,6P,BACKLIT (Incl. 3, 4, 6, 12)
3280162
Unavailable
8
INDICATOR'TEMP'WARN.
4040011
$32.37
9
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
10
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
11
PLUG,INDIC.HOLE
5430967
$5.65
12
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
13
SPEEDO,190KPH,BACKLIT (Incl. 3, 4, 6, 12) (Euro)
3280190
Unavailable
13
SPEEDO ASM,120MPH.BACKLIT (Incl. 3, 4, 6, 12) (US)
3280188
Unavailable
14
CABLE,SPEEDO.
3280094
$60.70
15
INDICATOR,FUEL LEVEL
3280118
$53.59
16
HDWE.PKG,FUEL INDIC.
3280119
$24.79
17
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
18
HARNESS,HEADLIGHT
2460440
Unavailable
19
FOIL,TAPE,1.5X6
5810949
$3.19
20
PR,MIRRORS,R.VIEW
2870938
Unavailable
21
SCREW(10)
7512070
Unavailable
21
SCREW(10)
7512070
Unavailable
22
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
23
FOAM,LH,HOOD
5810876
Unavailable
23
FOAM,RH,HOOD
5810877
Unavailable
23
FOIL,RH,HOOD
5810905
Unavailable
24
FOAM,HOOD,CTR.
5810875
Unavailable
25
CABLE,HOOD RETAINER
7080521
$24.27
26
SCREW(10)
7511930
$2.39
27
NUT FLEX LOC(10)
7541906
$3.19
27
NUT FLEX LOC(10)
7541906
$3.19
28
HOOD ASM,LIQ,FOAM/FOIL (Incl. 23-24)
2631591-200
$659.99
29
FOIL,HOOD,FRONT
5810874
Unavailable
