ENGINE MOUNTING XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917C004)

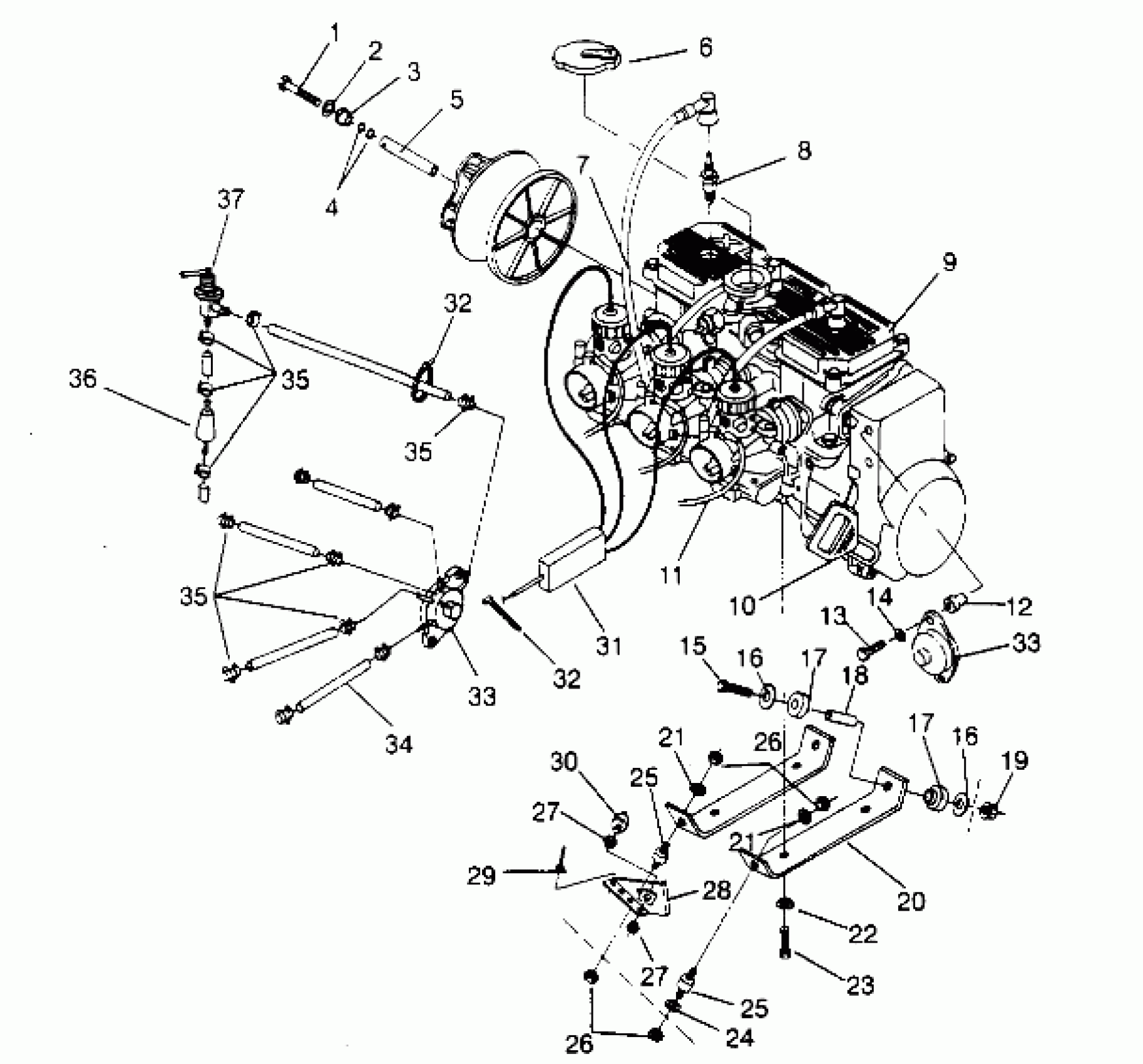

Polaris XLT TOURING - 0952857 ENGINE MOUNTING XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917C004) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE Substituted by 2511256
2511217
Unavailable
7
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
8
SPARKPLUG, RN3C(8)
3070166
$3.99
9
ENG.(S.B.)EC58PL-03 [Cannot Purchase as Assembly]
3084684
Unavailable
10
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
11
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
12
NUT-WELL(10)
7541923
$5.59
13
SCREW(10)
7512279
$1.49
14
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
15
SCREW(10)
7512530
$5.59
16
WASHER(10)
7555740
$1.59
16
WASHER(10)
7555740
$1.59
17
MOUNT, ENGINE
5410390
Unavailable
17
MOUNT, ENGINE
5410390
Unavailable
18
TUBE,SPACER
5333354
Unavailable
19
NUT,FLANGE(10)
7542522
$5.59
20
PLATE,LH,MTR.MT.
5240144
$86.51
20
PLATE,RH,MTR.MT.
5240145
$31.11
21
WASHER(10) Substituted by 7555806
7555720
$0.79
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
WASHER LOCK(10)
7553101
$3.99
23
BOLT(10)
7512575
Unavailable
24
WASHER(10)
7555721
$1.49
25
MOUNT
3110022
Unavailable
25
MOUNT
3110022
Unavailable
26
NUT LOCK(10)
7542411
$3.19
26
NUT LOCK(10)
7542411
$3.19
27
NUT, JAM(10)
7542432
$3.99
27
NUT, JAM(10)
7542432
$3.99
28
LIMITER
1011503-067
Unavailable
29
RIVET-3/16-.090-.290
7661637
$1.49
30
MOUNT,TORQUESTOP,RUBBER
3110034
Unavailable
31
CABLE,THROTTLE,W/OIL
7080543
$157.84
32
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
32
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
33
Fuel Pump (See Pg. A39)
-------
Unavailable
33
Fuel Pump (See Pg. A39)
-------
Unavailable
34
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
35
HOSE CLAMP, RED
7080003
$1.49
35
HOSE CLAMP, RED
7080003
$1.49
35
HOSE CLAMP, RED
7080003
$1.49
36
FILTER FUEL,(10)
2530008
$4.84
37
VALVE,FUEL SHUT-OFF
7052060
Unavailable
