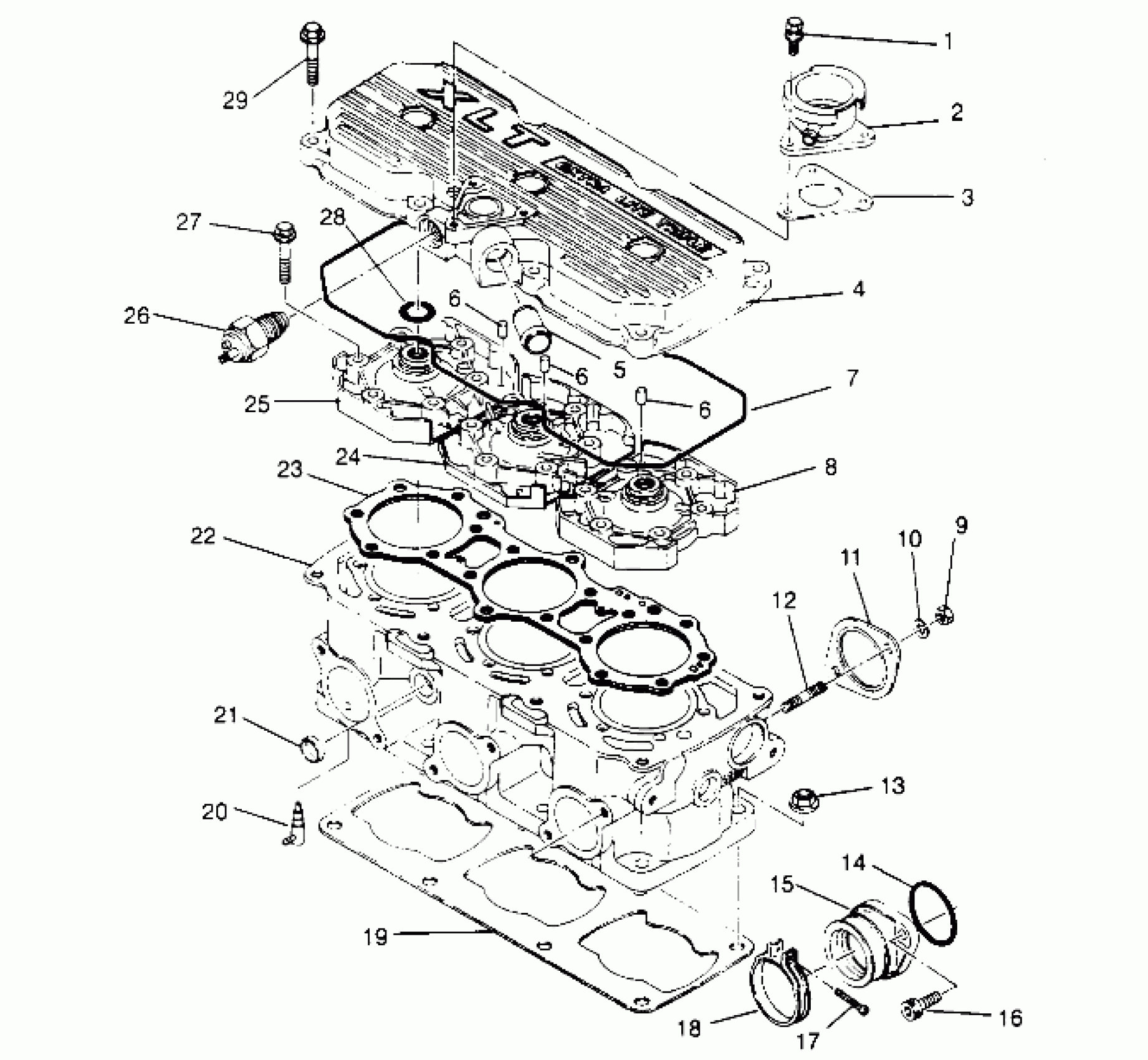

Polaris XLT TOURING - 0952857 CYLINDER ASSEMBLY XLT TOURING 0952857 and EUROPEAN XLT TOURING E952857 (4929172917C008) Diagram

BOLT&WASHER ASM.

3083361

Unavailable

NECK, FILLER

3083398

Unavailable

GASKET, FILLER NECK (Filler Neck)

3083340

Unavailable

COVER, HEAD (Incl. 5)

3084594

Unavailable

PIPE, WATER, CPL. (Water)

3084431

Unavailable

PIN, DOWEL

3084721

$4.79

PIN, DOWEL

3084721

$4.79

PIN, DOWEL

3084721

$4.79

O-RING, (HEADCOVER) (Head Cover)

3084434

Unavailable

HEAD, CYL.,(MAG) (Mag Side)

3084674

Unavailable

NUT(10)

3080285

Unavailable

WASHER LOCK ,(10)

3080530

$3.19

GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust)NA

3084439

Unavailable

STUD Substituted by 3085326

3084270

Unavailable

NUT-FLANGE(10)

3082911

$1.99

O-RING Substituted by 3085619

3084272

Unavailable

ADAPTER (Incl. 14)

3084438

Unavailable

BOLT, ALLEN (Socket Head)

3081330

$3.99

SCREW,(10) (Pan Head)

3081497

$2.39

BAND-CARB MTG. (Adaptor) (Incl. 17)

3082257

Unavailable

GASKET, CYLINDER (Cylinder)

3084593

Unavailable

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

PLUG

3084428

$3.51

CYLINDER (Incl. 12, 21)

3085017

$834.99

GASKET,HEAD (Head) Complete

3085005

Unavailable

HEAD, CYL.,(CEN) (Center)

3084675

Unavailable

HEAD, CYL.,(PTO) (PTO Side)

3084676

Unavailable

SWITCH,THERMAL,IOS

3084284

Unavailable

BOLT, FLANGE ,(10)

3084435

Unavailable

O-RING, HEAD Substituted by 3085192 (Head)

3084433

Unavailable

Bolt, Flange

3084437

Unavailable
