CONTROLS XLT TOURING 0952857 and EUROPEAN XLT TOURING E0952857 (4929172917B006)

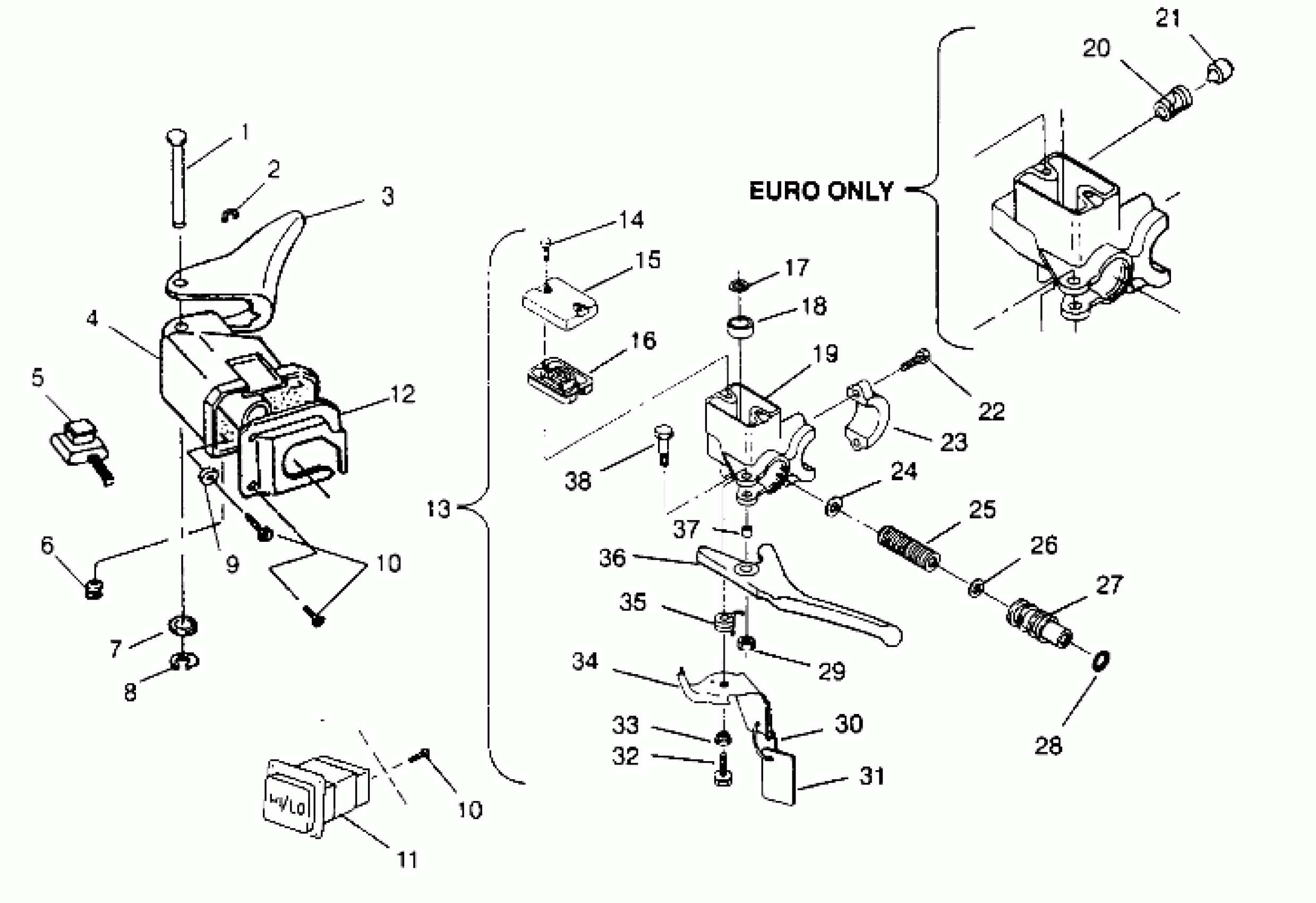

Polaris XLT TOURING - 0952857 CONTROLS XLT TOURING 0952857 and EUROPEAN XLT TOURING E0952857 (4929172917B006) Diagram
#
1
PIN-RETAINING .186X1.780-AL
7661624
$12.79
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
LEVER,THROTTLE,W/HEATER
2010119
Unavailable
3
LEVER, THROTTLE
5431318-067
Unavailable
4
BLOCK,THROTTLE(EASY) Substituted by 5433343
5431311-067
Unavailable
5
SWITCH, KILL
4110118
Unavailable
6
SCREW(10)
7512465
$3.99
7
WASHER(10)
7555730
$3.99
8
RING-RETAINING EXTERNAL
7710401
$3.99
9
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
10
SCREW-SEMS(10)
7511848
$3.99
10
SCREW-SEMS(10)
7511848
$3.99
11
SWITCH, DIMMER
4110136
Unavailable
12
BLOCK,ADAPTER,BLK.
5431313-067
Unavailable
13
MASTER CYL.ASM,3/4" (Incl. 14-29, 36-38) (US)
2050070
Unavailable
13
MASTER CYL.ASM,W/GLASS (Incl. 14-29, 36-38) (Euro)
2050071
Unavailable
14
SCREW,W/WASHER(10)
7512050
$3.99
15
COVER,MASTER CYL.
5630338
Unavailable
16
GASKET,MASTER CYL.
5410527
$8.99
17
WASHER, BAFFLE(10)
1930662
Unavailable
18
BAFFLE,MASTER CYL.
1930673
Unavailable
19
HOUSING,MASTERCYL. (US)
5130955
$293.65
19
HOUSING,MASTER CYL.SCAN (EURO)
5130961
Unavailable
20
GLASS,SIGHT,MASTER CYL. (Euro Only)
1930710
Unavailable
21
SEAL, SIGHT GLASS (Euro Only)
1930660
Unavailable
22
BOLT,SOCKET HEAD(10)
7512290
$4.79
23
CLAMP, MASTER CYL.
5630342
Unavailable
24
WASHER(10)
7555708
$3.99
25
SPRING, MASTERCYL.
7041311
Unavailable
26
U PACKING SEAL
5410164
Unavailable
27
PISTON,MASTER CYL.
5020679
Unavailable
28
O RING
5410163
$1.60
29
NUT(10)
7542124
Unavailable
30
STRAP,PARK.BRAKE TAG
7080447
Unavailable
31
TAG,PARK.BRAKE
5431389
Unavailable
32
SCREW(10)
7511866
$4.79
33
BUSHING,PK.BRAKE LEVER
5020670
Unavailable
34
LEVER,PARK.BRAKE
5240809
Unavailable
35
SPRING,PK.BRAKE
7041229
$32.37
36
LEVER, BRAKE
5630409
Unavailable
37
BUSHING,BRAKE LEVER
5332931
Unavailable
38
BOLT,BRAKE LEVER(10)
7512287
Unavailable
