TUNNEL ASSEMBLY XLT Special (Xtra) 0946767 (4927112711001A)

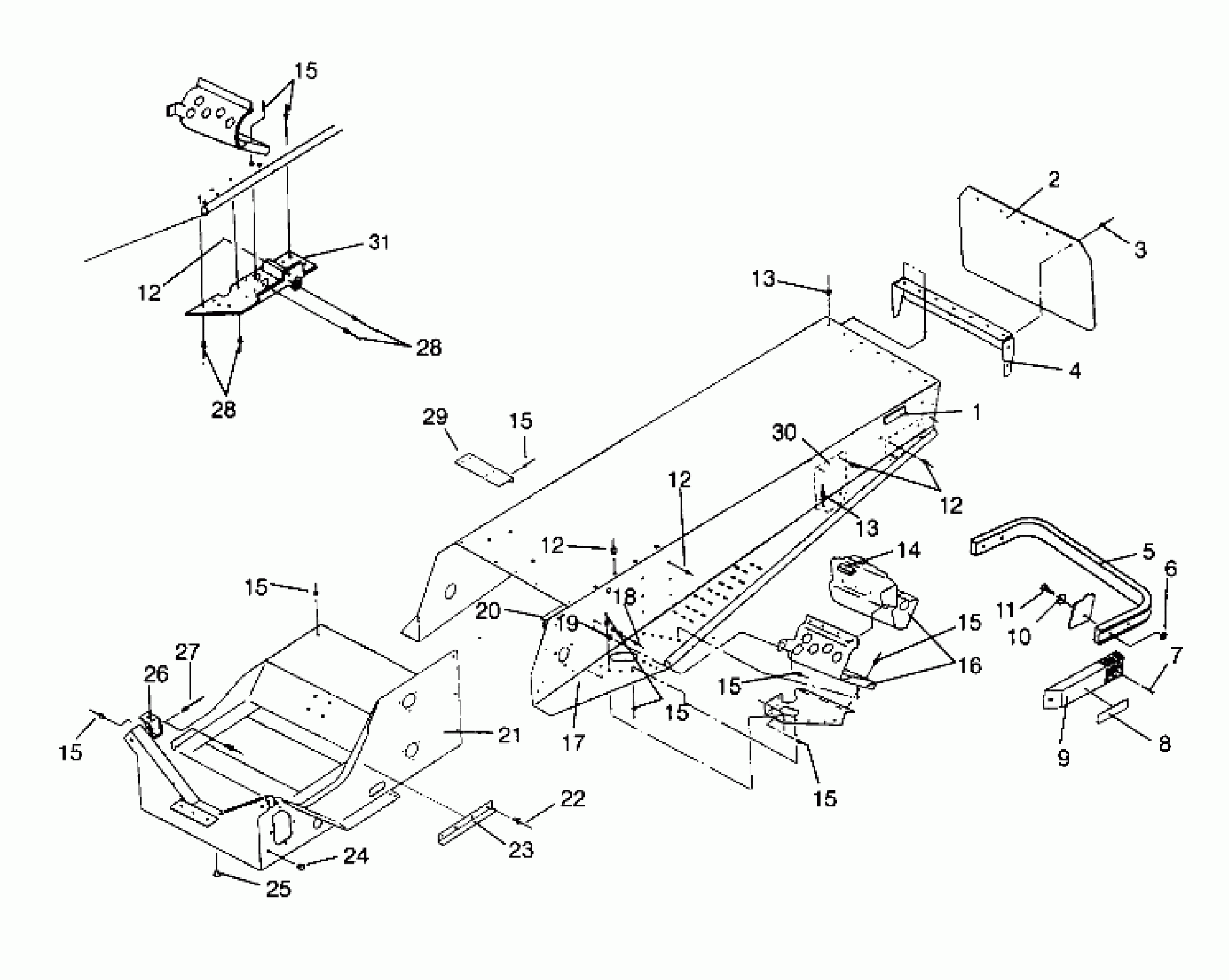

Polaris XLT SP XTRA - 0946767 TUNNEL ASSEMBLY XLT Special (Xtra) 0946767 (4927112711001A) Diagram
#
1
DECAL,TRACK/SEAT(CPSC) (Silver)
7074255
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106 (Silver)
5410394
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL-BACK,BLK.
5240599-067
Unavailable
5
BUMPER,REAR,BLK.
5224334-067
Unavailable
6
NUT-LOCK(10)
7542122
$1.49
7
SCREW(10)
7511863
$1.99
8
REFLECTOR RED
2670070
$9.91
9
CAP, BUMPER, BLK.
5430930-070
Unavailable
10
WASHER(10)
7558301
$1.49
11
BOLT(10)
7512240
$3.99
12
RIVET,(50)
7661825
$1.49
12
RIVET,(50)
7661825
$1.49
12
RIVET,(50)
7661825
$1.49
12
RIVET,(50)
7661825
$1.49
13
RIVET ,(50)
7661829
Unavailable
13
RIVET ,(50)
7661829
Unavailable
14
EXTRUSION,CLUTCHGUARD
5521238
$6.46
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
FOOTREST,ASM,LH,BLK. [No Longer Available]
1012056
Unavailable
16
FOOTREST ASM,RH,BLK.
1012057
$115.99
17
TUNNEL,'94 XLT 580 (Incl. 4, 16, 20)
1012050
$405.94
18
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
19
SNAP-MALE(10)
7080227
Unavailable
20
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
21
BULKHEAD,(94 XLT) Substituted by 1012049-067
1012049
Unavailable
22
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
23
GUARD,ADAPTER,DRIVE
5240441
Unavailable
24
PLUG, HOLE(10)
7080512
$2.63
26
Weld., Muffler Support (See pg. A29, Ref. 13)
-------
Unavailable
26
Weld., Muffler Support (See pg. A29, Ref. 13)
-------
Unavailable
27
RIVET(50)
7621452
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
29
BRKT, TOOL BOX
5220973
Unavailable
30
PLATE,BACKER,R.SUSP,BLK. [No Longer Available]
5211452-067
Unavailable
31
MT,TRLG.ARM,LH,BLK.
1012054-067
Unavailable
31
MT,TRLG.ARM,RH,BLK.
1012055-067
Unavailable
