SUSPENSION ASSEMBLY XLT Special (Xtra) 0946767 (4927112711019A)

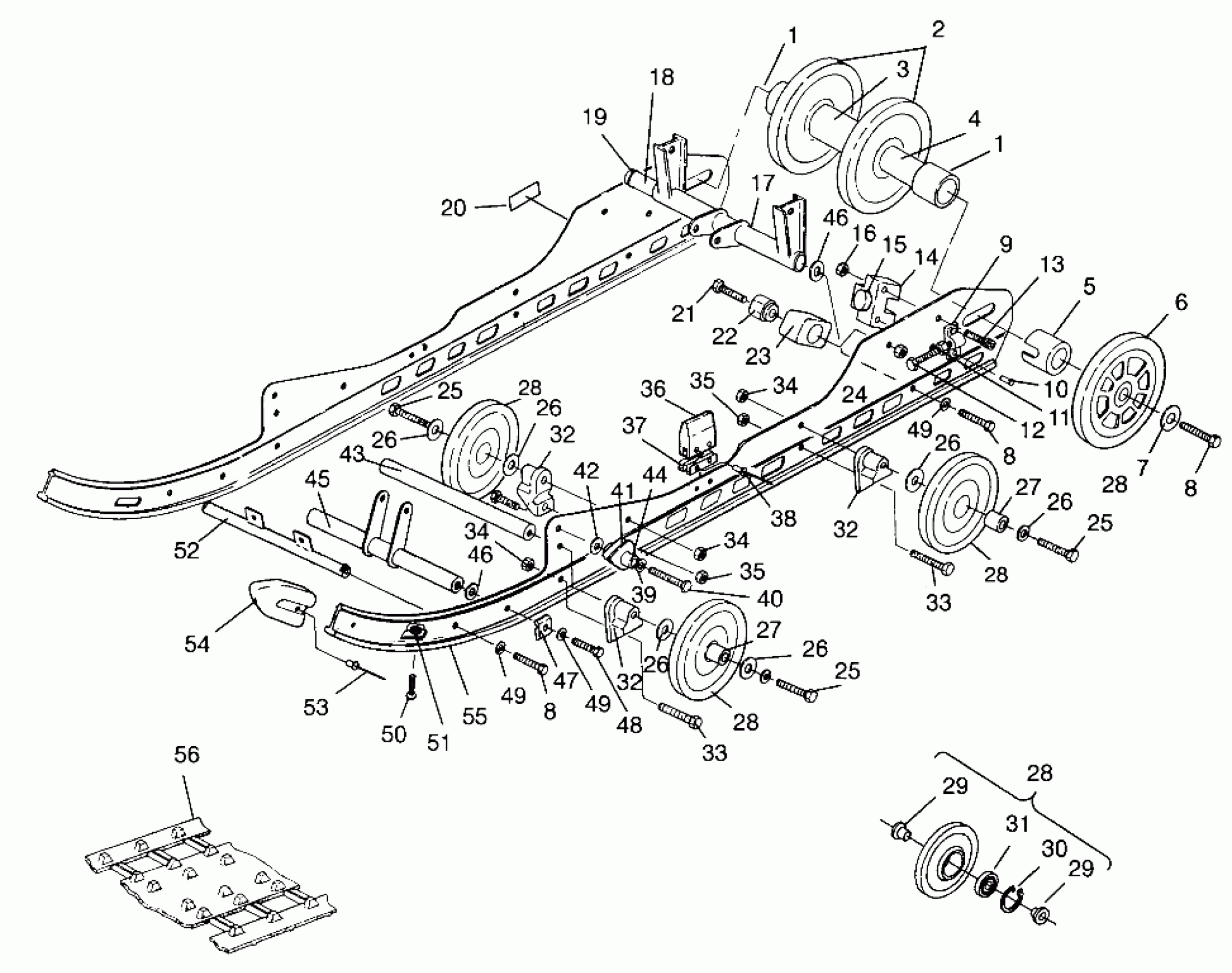

Polaris XLT SP XTRA - 0946767 SUSPENSION ASSEMBLY XLT Special (Xtra) 0946767 (4927112711019A) Diagram
#
-
RAIL ASM,LH,'XTRA' (Incl. 9, 36, 37, 53)
1540884
Unavailable
-
RAIL ASM,RH,'XTRA' (Incl. 9, 36, 37, 53)
1540885
$209.99
1
SPACER INNER IDLER
5010169
Unavailable
1
SPACER INNER IDLER
5010169
Unavailable
2
WHEEL, IDLER Substituted by 1594079-070 (Black)
1594021
Unavailable
3
SPACER CTR IDLER
5010168
Unavailable
4
SHAFT,IDLER
5020722
Unavailable
5
SPACER-IDLER-OUTER
5332641
Unavailable
6
WHEEL,IDLER,LAV. (Lavender)
1594049
Unavailable
7
WASHER(10) Substituted by 7556130
7571629
Unavailable
8
BOLT(10)
7515526
$1.19
8
BOLT(10)
7515526
$1.19
8
BOLT(10)
7515526
$1.19
9
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
10
RIVET,(50)
7621501
$2.39
11
NUT(10)
7542440
Unavailable
12
BOLT, ADJUSTER(10)
7515455
$29.99
13
SCREW(10)
7515156
$3.99
14
BLOCK,R.PIVOT ARM STOP
5131111
Unavailable
15
BUMPER,R.PIVOT ARM
5410937
$5.75
16
NUT, LOCK(10)
7542103
$5.59
17
ARM,R.PIVOT,BLK Substituted by 1540971-067
1540891-067
Unavailable
18
SHAFT,R.TORQUE ARM
5020786
$17.14
19
O-RING
5410953
Unavailable
20
DECAL,"PAT.PENDING"
7074922
Unavailable
21
BOLT(10)
7515537
$10.99
22
BUMPER,F.PIVOT ARM
5410925
$12.94
23
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
24
NUT LOCK(10)
7542403
$3.99
25
BOLT(10)
7512538
$6.39
25
BOLT(10)
7512538
$6.39
25
BOLT(10)
7512538
$6.39
26
WASHER, FLAT(10)
7555852
$2.39
26
WASHER, FLAT(10)
7555852
$2.39
26
WASHER, FLAT(10)
7555852
$2.39
26
WASHER, FLAT(10)
7555852
$2.39
26
WASHER, FLAT(10)
7555852
$2.39
26
WASHER, FLAT(10)
7555852
$2.39
27
SPACER, WHEEL
5333116
$7.99
27
SPACER, WHEEL
5333116
$7.99
28
WHEEL, IDLER
1543018
$56.65
28
WHEEL, IDLER
1543018
$56.65
28
WHEEL, IDLER
1543018
$56.65
28
WHEEL, IDLER
1543018
$56.65
28
WHEEL, IDLER
1543018
$56.65
29
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
29
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
30
RET.RING-TRUARC
7718407
$4.79
31
BEARING
3514303
$11.99
32
SPACER
5630399
$11.99
32
SPACER
5630399
$11.99
32
SPACER
5630399
$11.99
33
BOLT(10)
7512404
$3.99
33
BOLT(10)
7512404
$3.99
34
NUT, NYLOCK(10)
7542525
$4.79
34
NUT, NYLOCK(10)
7542525
$4.79
34
NUT, NYLOCK(10)
7542525
$4.79
35
NUT-LOCK(10)
7542439
$1.49
35
NUT-LOCK(10)
7542439
$1.49
36
BUMPER,JOUNCE,RAIL,LT
5811065
Unavailable
37
BRKT,BUMPER SUPPORT
5240946
Unavailable
38
RIVET,(50)
7621488
$3.99
39
BOLT(10)
7515538
$6.39
40
WASHER(10)
7555797
$3.99
41
BLOCK,SPRING SLIDER
5431924
$10.65
42
WASHER(10)
7555743
Unavailable
43
SHAFT,R.SHOCK BRKT.
5020649
Unavailable
44
Bushing
5010332
$11.99
45
ARM,SHOCK PIVOT,BLK.
1540889-067
$32.22
46
WASHER(10)
7555893
$1.49
46
WASHER(10)
7555893
$1.49
47
BOSS,BOLT HEAD
5131112
$19.99
48
BOLT(10)
7515535
Unavailable
49
WASHER(10)
7552603
$1.49
49
WASHER(10)
7552603
$1.49
49
WASHER(10)
7552603
$1.49
50
SCREW(10)
7515153
$3.99
51
NUT-LOCK(10)
7542122
$1.49
52
SHAFT,LIMITER STRAP,BLK.
1012267-067
Unavailable
53
RIVET(50)
7621435
$1.49
54
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
55
SLIDER,WIDE,BLK.(2)
5521275
Unavailable
56
TRACK,121",DEEPWIPER,STD.CORD
5410920
Unavailable
