STEERING ASSEMBLY XLT Special (Xtra) 0946767 (4927112711014A)

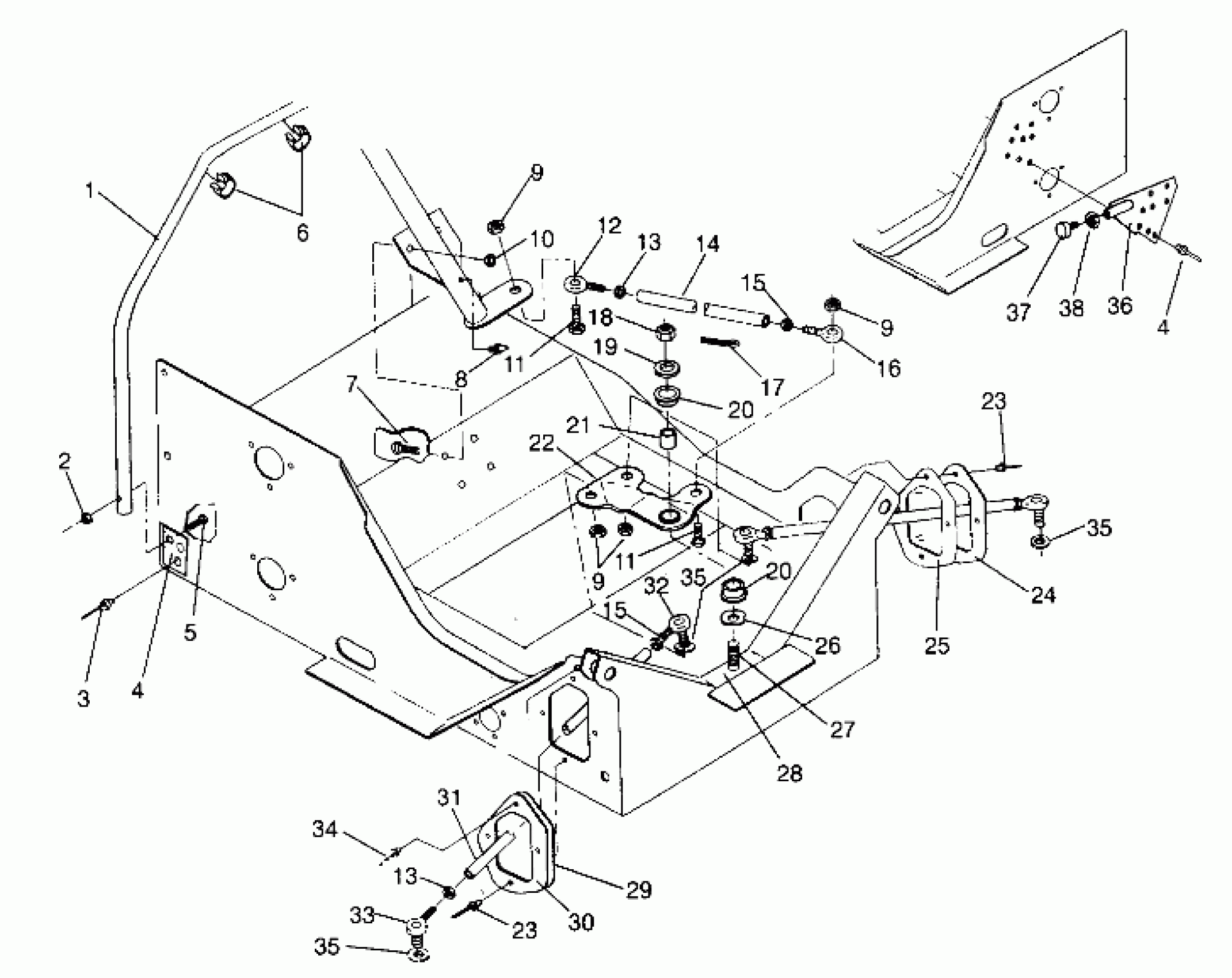

Polaris XLT SP XTRA - 0946767 STEERING ASSEMBLY XLT Special (Xtra) 0946767 (4927112711014A) Diagram
#
1
HOOP,STRG,BLK.
1012051-067
$29.52
2
NUT-LOCK(10)
7542122
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
4
PLATE,FR.MT,SUSP. [No Longer Available]
5211508-067
Unavailable
4
PLATE,FR.MT,SUSP. [No Longer Available]
5211508-067
Unavailable
5
BOLT-CARRIAGE(10)
7512262
Unavailable
6
CLIP(10)
7080278
$2.63
7
BOLT(10) Substituted by 7512377
7512394
Unavailable
8
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
10
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
BOLT(10)
7512404
$3.99
11
BOLT(10)
7512404
$3.99
12
ROD END,LH Substituted by 7060164
7060124
$48.56
13
NUT
7542424
$1.49
13
NUT
7542424
$1.49
14
ROD-DRAG LINK
5332712
Unavailable
15
NUT HEX(10)
7542401
$2.39
15
NUT HEX(10)
7542401
$2.39
16
ROD END RH Substituted by 7060165
7060125
$48.56
17
PIN COTTER(10)
7661203
$1.49
18
NUT(10)
7542712
$9.59
19
WASHER(10)
7555721
$1.49
20
BUSHING
3563907
$3.99
20
BUSHING
3563907
$3.99
21
BUSHING-SPACER
5010161
Unavailable
22
ARM,STEERING,CTR.
1822047-067
Unavailable
23
RIVET(50)
7621301
$3.99
23
RIVET(50)
7621301
$3.99
24
PLATE,LH,BOOT SEAL Substituted by 5211454-067
5211454
Unavailable
25
BOOT , LH
5410388
Unavailable
26
WASHER,WAVE(10)
7555735
$3.99
27
BOLT(10)
7512658
Unavailable
28
BLOCK, STEERING
5630375
Unavailable
29
BOOT,LH,TIE-ROD
5410867
Unavailable
29
BOOT,RH,TIE-ROD
5410868
$12.70
30
PLATE,BOOT SEAL Substituted by 5211453-067
5211453
$15.56
31
ROD,TIE,BLK.
5020737-067
Unavailable
32
ROD END,LH,3/8"HI-ANGLE Substituted by 7061005
7060160
Unavailable
33
ROD END,RH,3/8"HI-ANGLE Substituted by 7060174
7060161
$48.56
34
POP RIVET(50)
7621303
Unavailable
35
WASHER(10) Substituted by 7555806
7555720
$0.79
35
WASHER(10) Substituted by 7555806
7555720
$0.79
35
WASHER(10) Substituted by 7555806
7555720
$0.79
36
LIMITER,TORQUE,PTO,BLK.
1012044-067
Unavailable
37
MT,RUBBER,TORQUE STOP
3110041
Unavailable
38
NUT, JAM(10)
7542432
$3.99
