OIL TANK/AIR BOX ASSEMBLY XLT Special (Xtra) 0946767 (4927112711027A)

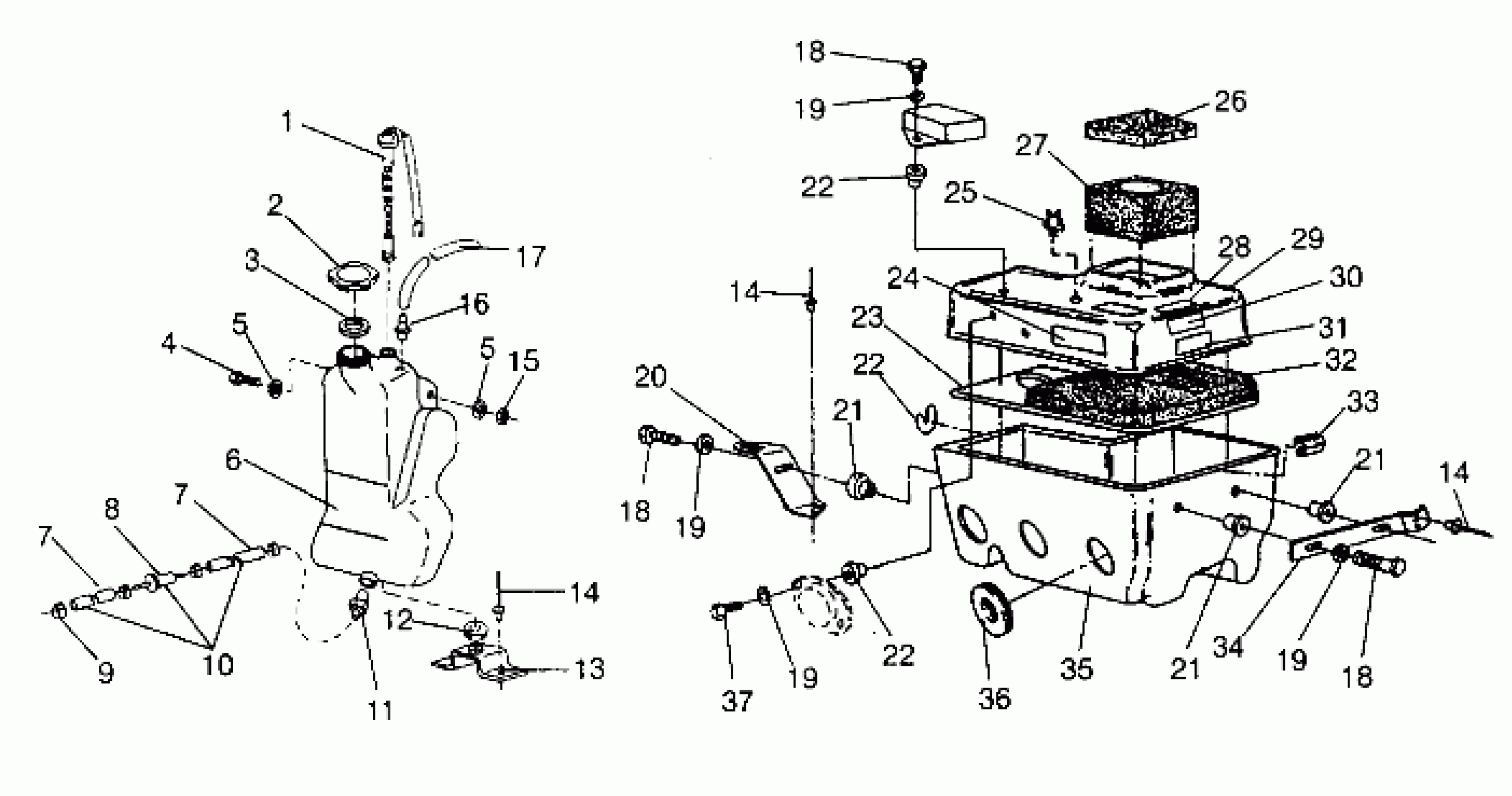

Polaris XLT SP XTRA - 0946767 OIL TANK/AIR BOX ASSEMBLY XLT Special (Xtra) 0946767 (4927112711027A) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
Tank, Oil
5431437
Unavailable
7
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
8
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
9
CLAMP-HOSE,(10)
7080236
$1.59
10
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
11
FITTING, OUTLET
7052042
$8.99
12
GROMMET RUBBER
5410021
Unavailable
13
BRACKET
5223985
Unavailable
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
15
NUT-LOCK(10)
7542122
$1.49
16
FITTING,90 DEG,1/8,(10)
7052095
$4.79
17
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
18
SCREW(10)
7512279
$1.49
18
SCREW(10)
7512279
$1.49
18
SCREW(10)
7512279
$1.49
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
22
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
22
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
22
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
23
PLATE, AIR SILENCER
5850102
Unavailable
24
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
25
CLAMP,WIRE ROUTING(10)
7080409
$2.39
26
FOAM,INTAKE,TOP
5810457
Unavailable
27
FOAM, INTAKE
5810468
Unavailable
28
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
29
COVER,SILENCER,DRILLED
5431852
Unavailable
30
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
31
DECAL, GREASING [No Longer Available]
7073426
$7.27
32
BAFFLE ASM.
1253110
Unavailable
33
CLIP, AIR BOX,(10)
7670055
$7.99
34
BRKT,AIR BOX,BLK.
5240180-067
Unavailable
35
SILENCER ASM,INTAKE,DRILLED
5431839
$119.99
36
BOOT,AIR SILENCER MOD.
5410793
Unavailable
37
SCREW(10)
7512222
$2.39
