HOOD ASSEMBLY XLT Special (Xtra) 0946767 (4927112711005A)

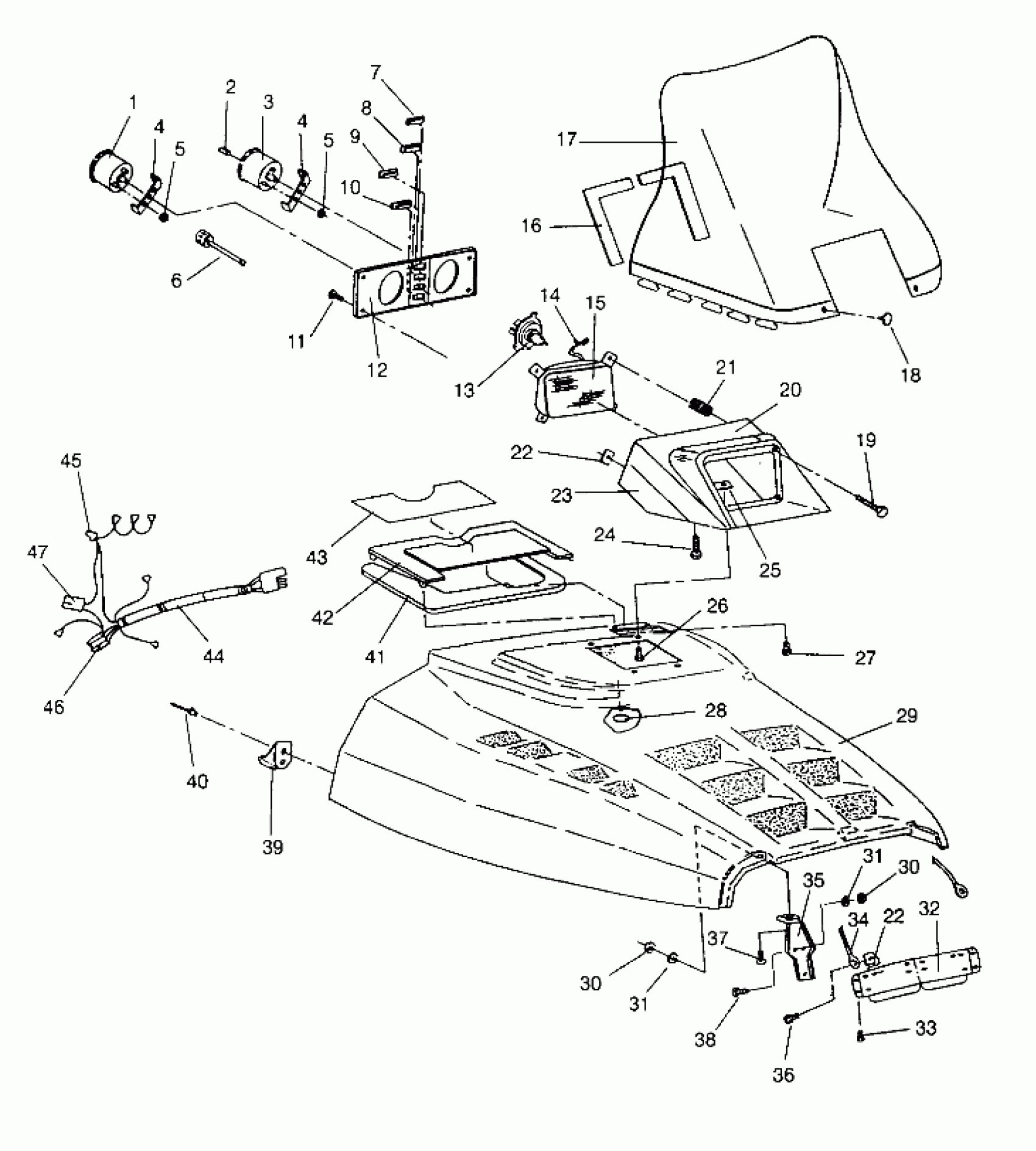

Polaris XLT SP XTRA - 0946767 HOOD ASSEMBLY XLT Special (Xtra) 0946767 (4927112711005A) Diagram
#
1
TACHOMETER, 6 PULSE (Incl. 4,5)
3280127
Unavailable
2
KNOB,TRIP ODOMETER
3280103
$3.83
3
SPEEDOMETER (Incl. 4,5)
3280092
$111.99
4
BRACKET
3280098
Unavailable
4
BRACKET
3280098
Unavailable
5
NUT
3280063
Unavailable
5
NUT
3280063
Unavailable
6
CABLE,SPEEDO.
3280094
$60.70
7
INDICATOR'TEMP'WARN.
4040011
$32.37
8
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
INDICATOR,'ACC'WARN.
4040014
Unavailable
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST.
5430924
Unavailable
13
BULB,QUARTZ.H/L,INDY
2870448
$24.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032040
Unavailable
16
PAD,W/S,LH,BLACK
5810437
Unavailable
16
PAD,W/S,RH,BLACK
5810438
$1.67
17
WINDSHIELD,LOW,BLK.
5431447
Unavailable
18
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
19
SCREW, ADJ.(10)
4032003
Unavailable
20
HSG,INST,TOP,BLK
5430923-070
Unavailable
21
SPRING-ADJ
4032002
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
23
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
24
SCREW(10)
7512009
Unavailable
25
NUT, SPEED(10)
7670057
$1.49
26
SCREW, SEMS(10)
7512283
$3.99
27
SCREW(10)
7511840
Unavailable
28
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
29
HOOD,BLK.VIOLET(LIQ.) (Incl. Foam, Foil & Warning Decals)
2631574-200
Unavailable
30
NUT-LOCK(10)
7542122
$1.49
30
NUT-LOCK(10)
7542122
$1.49
31
WASHER,WROUGHT(10)
7558302
$1.59
31
WASHER,WROUGHT(10)
7558302
$1.59
32
PLATE,RE-INF.,(HD.)
5222105
$49.51
33
SCREW(10)
7511858
$3.99
34
CABLE,HOOD RETAINER
7080368
$10.51
35
HINGE ASM,HD,BLK
2635005-067
$16.67
36
SCREW(10)
7511989
Unavailable
37
BOLT-CARRIAGE(10)
7512263
$3.99
38
BOLT(10)
7512193
$2.39
39
CUP, HOOD LATCH,(10)
5430733
$4.84
40
RIVET(50)
7621334
$1.49
41
SEAL, INTAKE
5810597
Unavailable
42
PANEL,INTAKE,BLK.VIOLET
2620078-200
Unavailable
43
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
44
HARNESS,HEADLIGHT
2460382
Unavailable
45
HOUSING (Tach. Conn.)
4020052
Unavailable
46
HOUSING (Speedo., Conn.)
4020115
$1.59
47
HOUSING (Headlight)
4020114
Unavailable
47
HOUSING (Headlight)
4020114
Unavailable
