FRONT SUSPENSION and SKI XLT Special (Xtra) 0946767 (4927112711011A)

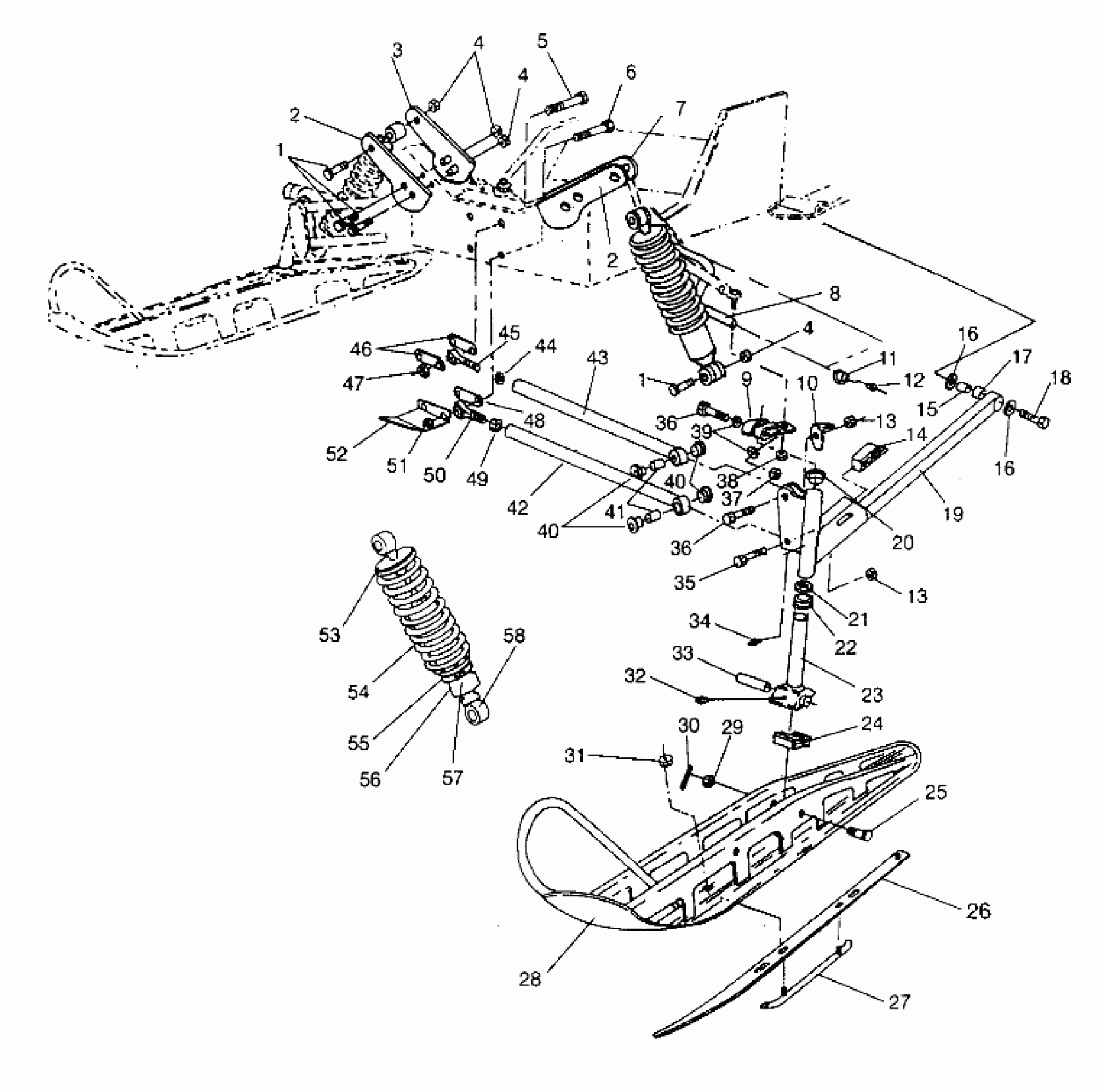

Polaris XLT SP XTRA - 0946767 FRONT SUSPENSION and SKI XLT Special (Xtra) 0946767 (4927112711011A) Diagram
#
1
DESC NOT_AVAILABLE
7515530
Unavailable
1
DESC NOT_AVAILABLE
7515530
Unavailable
2
PLATE,SHOCK MT.EXT,BLK.
5211449-067
Unavailable
2
PLATE,SHOCK MT.EXT,BLK.
5211449-067
Unavailable
3
MT,RH,SHOCK EXT.BLK.
1012053-067
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
BOLT(10)
7512551
Unavailable
6
BOLT(10)
7512656
$6.23
7
MT,LH,SHOCK EXT.BLK.
1012052-067
Unavailable
8
BAR,SWAY,BLK,(LT)
5224532-067
Unavailable
9
ARM,STEERING,BLK. Substituted by 1012423-067
5222873-067
Unavailable
10
STOP,LH,STRG,BLK.
5240463-067
Unavailable
10
STOP,RH,STRG,BLK.
5240464-067
Unavailable
11
BUSHING,SWAYBAR
5410386
Unavailable
12
RIVET(50)
7621433
$1.49
13
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
13
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
14
SLIDE,SWAYBAR,5/8",LT
5431736
Unavailable
15
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
16
WASHER(10)
7555721
$1.49
16
WASHER(10)
7555721
$1.49
17
TUBE, BUSHING
5010310
$9.70
18
BOLT(10)
7512557
$7.60
19
ARM,TRAILING,RH Substituted by 1822247 (Incl. 15,17)
1822174
Unavailable
19
ARM,TRAILING,LH Substituted by 1822246 (Incl. 15,17)
1822173
Unavailable
20
BUSHING-FLANGE
3573909
$2.39
21
WASHER SPECIAL(10)
7556509
$1.59
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
SPINDLE, BLK.
6230073-067
Unavailable
24
STOP, RUBBER
5521276
Unavailable
25
BOLT(10)
7515462
$8.79
25
BOLT(10)
7515462
$8.79
26
Plate, Skag
1011829-067
$54.99
27
SKAG Substituted by 1820318-067
1820318
$49.99
28
SKI WELD, BLK
1820332-067
Unavailable
29
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
30
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
31
NUT-5/16-18 NYLOK-Y
7542324
$1.49
32
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
33
BUSHING,PIVOT,(10)
5010158
$19.99
34
ZERK,FITTING,THREADED(10)
7080433
$1.49
36
BOLT(10) Substituted by 7517583
7515491
Unavailable
36
BOLT(10) Substituted by 7517583
7515491
Unavailable
37
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
38
NUT LOCK(10)
7542403
$3.99
39
WASHER(10) Substituted by 7555832
7555851
Unavailable
40
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
40
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BUSHING-RADIUS ROD,(10)
5010127
$7.99
42
ROD,RAD,LOW,BLK.
1822170-067
Unavailable
43
ROD,RAD,BLK.
1822168-067
$38.10
44
NUT JAM(10)
7542520
$2.39
45
ROD END, RH Substituted by 7061010
7060155
Unavailable
46
STRAP,SPACER TOP
5211344
$7.27
47
NUT, LOCK,(10)
7542503
$10.39
48
STRAP,SPACER BOTTOM
5211345
$12.99
49
NUT-JAM(10)
7542711
$2.39
50
ROD END,RH Substituted by 7061011
7060156
Unavailable
51
NUT FLEX,(10)
7542703
Unavailable
52
BRACE, PAN
5223997-067
Unavailable
53
RETAINER,SPRING,SLOTTED
5020618
$24.99
54
SPRING,IFS,BLK. Substituted by 7041398-067
7041356-067
Unavailable
55
RING, RETAINING(10)
7710424
$0.63
56
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
57
RING,SPRING PRELOAD ADJ.
5431734
$52.60
58
Shock, Fox, Gas, Slo (See Pg. A31)
-------
Unavailable
