ENGINE MOUNTING XLT Special (Xtra) 0946767 (4927112711025A)

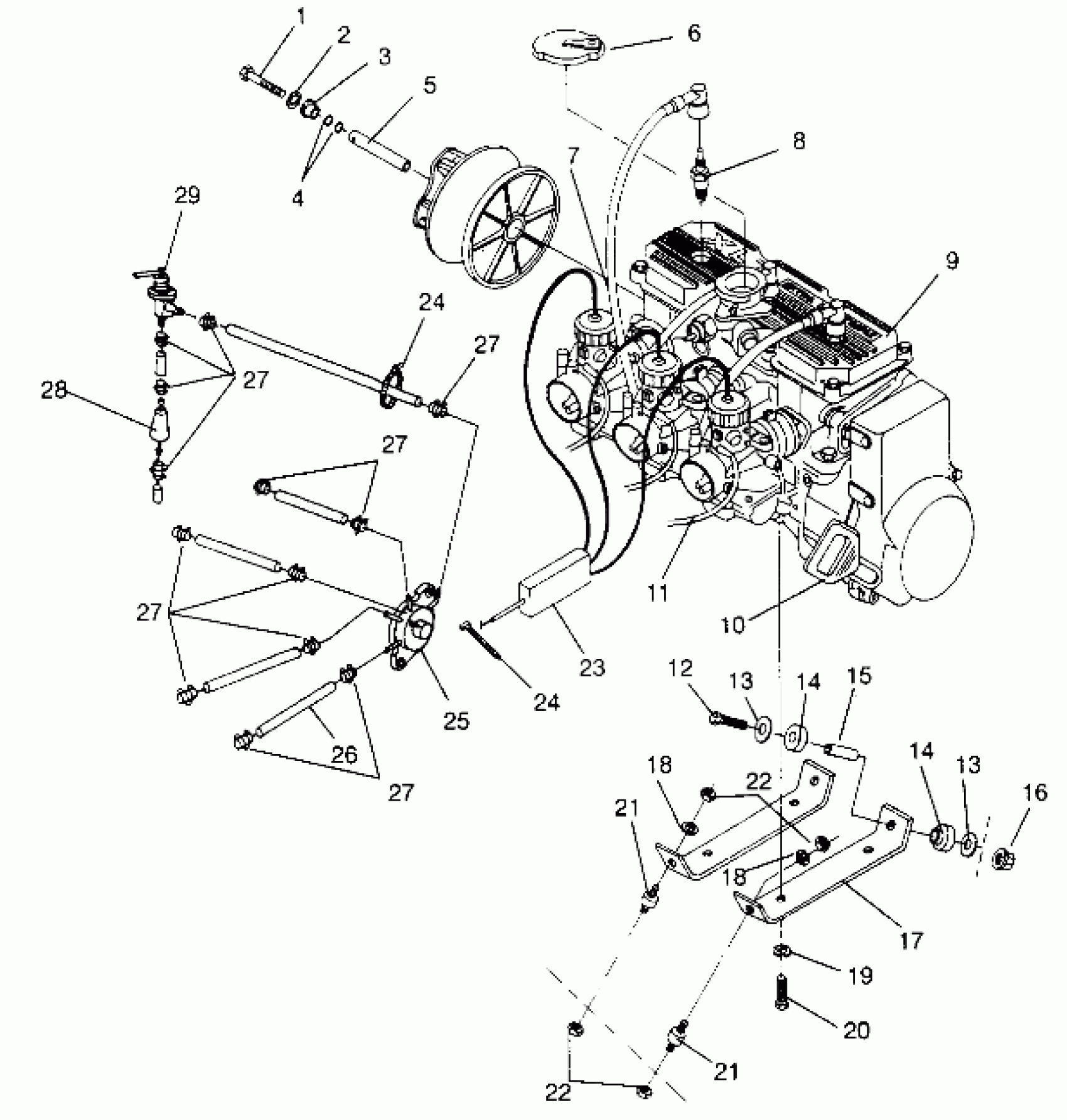

Polaris XLT SP XTRA - 0946767 ENGINE MOUNTING XLT Special (Xtra) 0946767 (4927112711025A) Diagram
#
Description
Price
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE Substituted by 2511256
2511217
Unavailable
7
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
8
SPARKPLUG, RN3C(8)
3070166
$3.99
9
ENG.EC58PL-03 [No Longer Available]
1211548
Unavailable
10
HANDLE-RECOIL
5430520
Unavailable
11
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
12
SCREW(10)
7512530
$5.59
13
WASHER(10)
7555740
$1.59
13
WASHER(10)
7555740
$1.59
14
MOUNT, ENGINE
5410390
Unavailable
14
MOUNT, ENGINE
5410390
Unavailable
15
TUBE, SPACER
5333258
$2.63
16
NUT,FLANGE(10)
7542522
$5.59
17
PLATE,LH.MTR.MT.
5240438
Unavailable
17
PLATE,RH.MTR.MT.
5240439
$36.24
18
WASHER(10) Substituted by 7555806
7555720
$0.79
18
WASHER(10) Substituted by 7555806
7555720
$0.79
18
WASHER(10) Substituted by 7555806
7555720
$0.79
20
BOLT(10)
7512575
Unavailable
21
MOUNT,RUBBER
3110047
Unavailable
21
MOUNT,RUBBER
3110047
Unavailable
22
NUT LOCK(10)
7542411
$3.19
22
NUT LOCK(10)
7542411
$3.19
23
CABLE,THROTTLE,W/OIL
7080543
$157.84
24
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
24
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
25
Fuel Pump (See Pg. A39, Ref. 1)
-------
Unavailable
26
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
HOSE CLAMP, RED
7080003
$1.49
27
HOSE CLAMP, RED
7080003
$1.49
27
HOSE CLAMP, RED
7080003
$1.49
27
HOSE CLAMP, RED
7080003
$1.49
27
HOSE CLAMP, RED
7080003
$1.49
28
FILTER FUEL,(10)
2530008
$4.84
29
VALVE,FUEL SHUT-OFF
7052060
Unavailable
