CYLINDER ASSEMBLY XLT Special (Xtra) 0946767 (4927112711032A)

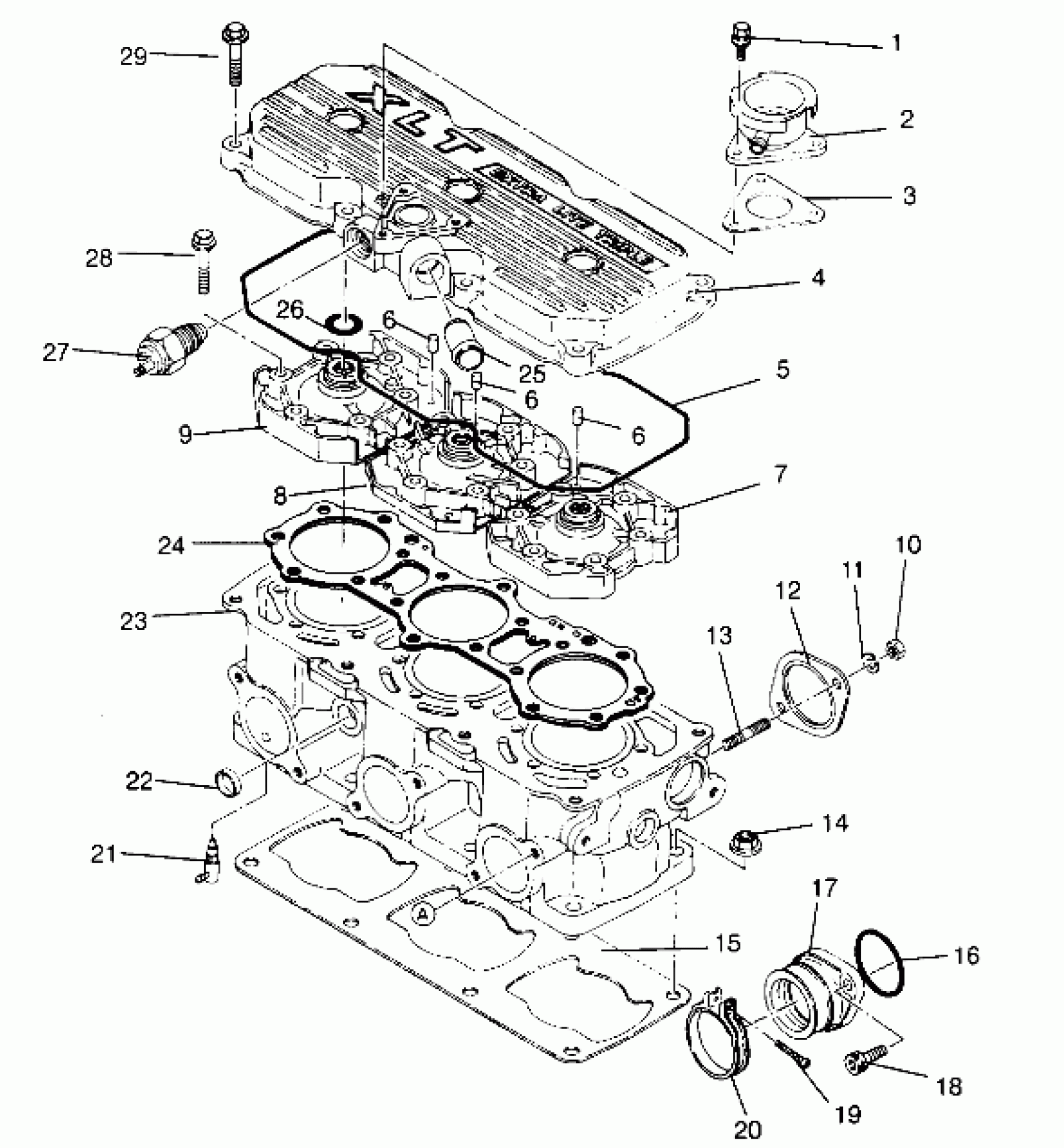

Polaris XLT SP XTRA - 0946767 CYLINDER ASSEMBLY XLT Special (Xtra) 0946767 (4927112711032A) Diagram
#
Description
Price
1
BOLT&WASHER ASM.
3083361
Unavailable
2
NECK, FILLER
3083398
Unavailable
3
GASKET, FILLER NECK (Filler Neck)
3083340
Unavailable
4
COVER, HEAD (Incl. 25)
3084594
Unavailable
5
O-RING, (HEADCOVER) (Head Cover)
3084434
Unavailable
6
PIN, DOWEL
3084721
$4.79
6
PIN, DOWEL
3084721
$4.79
6
PIN, DOWEL
3084721
$4.79
7
HEAD, CYL.,(MAG) (Mag)
3084674
Unavailable
8
HEAD, CYL.,(CEN) (Cen)
3084675
Unavailable
9
HEAD, CYL.,(PTO) (PTO)
3084676
Unavailable
10
NUT(10)
3080285
Unavailable
11
WASHER LOCK ,(10)
3080530
$3.19
12
GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust) Non-Asbestos
3084439
Unavailable
13
STUD Substituted by 3085326
3084270
Unavailable
14
NUT-FLANGE(10)
3082911
$1.99
15
GASKET, CYLINDER (Cylinder)
3084593
Unavailable
16
O-RING Substituted by 3085619
3084272
Unavailable
17
ADAPTER (Incl. 16)
3084438
Unavailable
18
Bolt, Allen
3081330
$3.99
19
SCREW,(10)
3081497
$2.39
20
BAND-CARB MTG. (Incl. 19)
3082257
Unavailable
21
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
22
PLUG
3084428
$3.51
23
CYLINDER Substituted by 3085017 (Incl. 13,22)
3084770
$834.99
24
GASKET, HEAD Substituted by 3085005
3084685
Unavailable
25
PIPE, WATER, CPL.
3084431
Unavailable
26
O-RING, HEAD Substituted by 3085192
3084433
Unavailable
27
SWITCH,THERMAL,IOS
3084284
Unavailable
28
BOLT, FLANGE ,(10)
3084435
Unavailable
29
Bolt, Flange
3084437
Unavailable
