COOLING SYSTEM XLT Special (Xtra) 0946767 (4927112711015A)

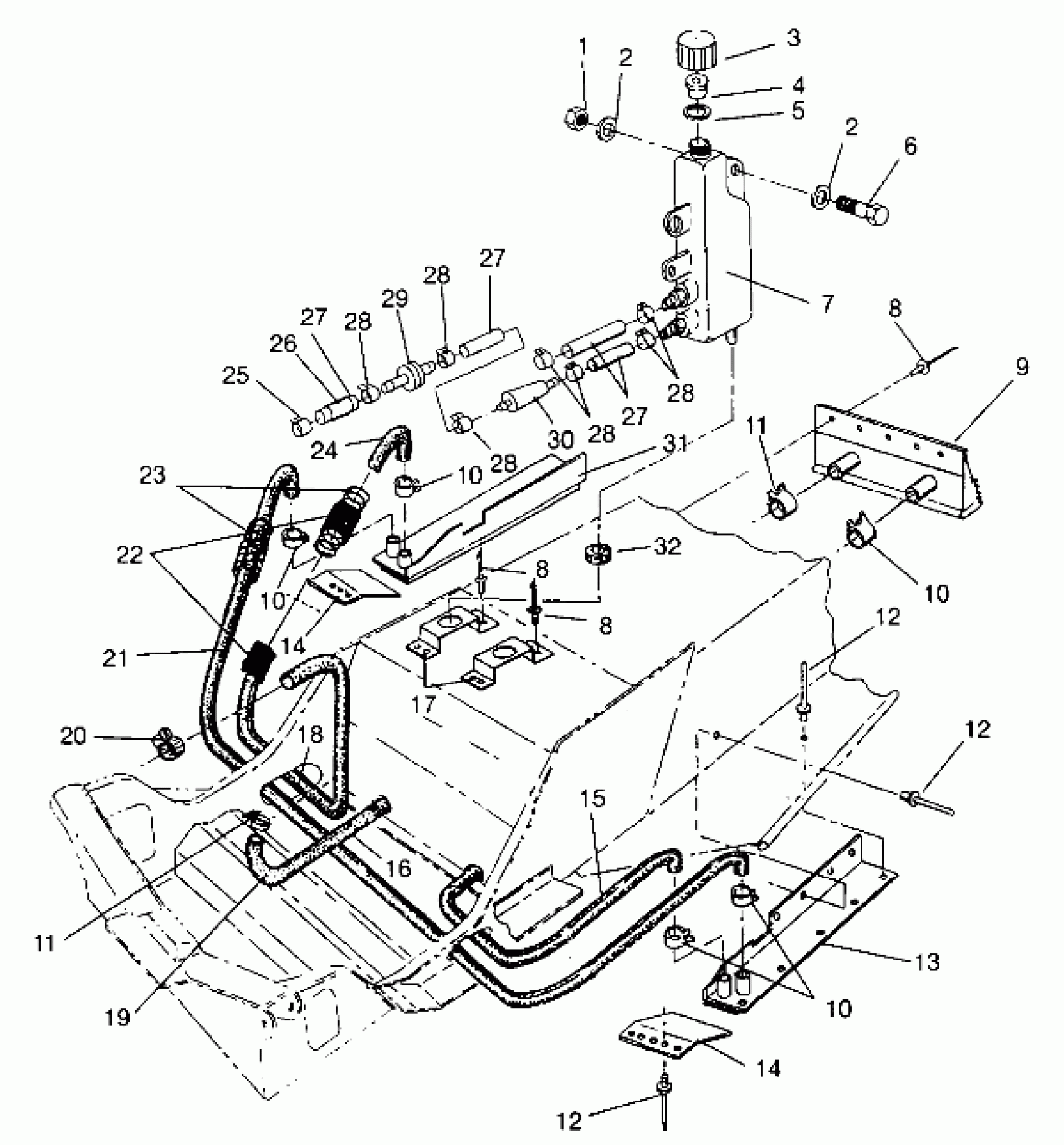

Polaris XLT SP XTRA - 0946767 COOLING SYSTEM XLT Special (Xtra) 0946767 (4927112711015A) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER,COOL.CTR.
2511239
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
COOLING WELD,LH SIDE
2511240
$115.99
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
HOSE, CENTER
5410673
Unavailable
17
BRACKET
5223985
Unavailable
19
SPRING,HOSE RETAINER
7042041
Unavailable
20
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
21
HOSE-CROSSOVER
5410324
Unavailable
22
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
23
SPRING,HOSE RETAINER
7041079
$4.95
24
HOSE,ENG/SIDE EXT.
5410738
Unavailable
25
CLAMP-HOSE(10)
7080134
Unavailable
26
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
27
GAS LINE, (FT.) [Cannot Purchase as Assembly] (Service)
8450003
Unavailable
27
GAS LINE, (FT.) [Cannot Purchase as Assembly] (Service)
8450003
Unavailable
27
GAS LINE, (FT.) [Cannot Purchase as Assembly] (Service)
8450003
Unavailable
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
VALVE, CHECK
7052038
$10.51
30
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
31
COOLING WELD,RH SIDE
2511241
$103.19
32
GROMMET RUBBER
5410021
Unavailable
