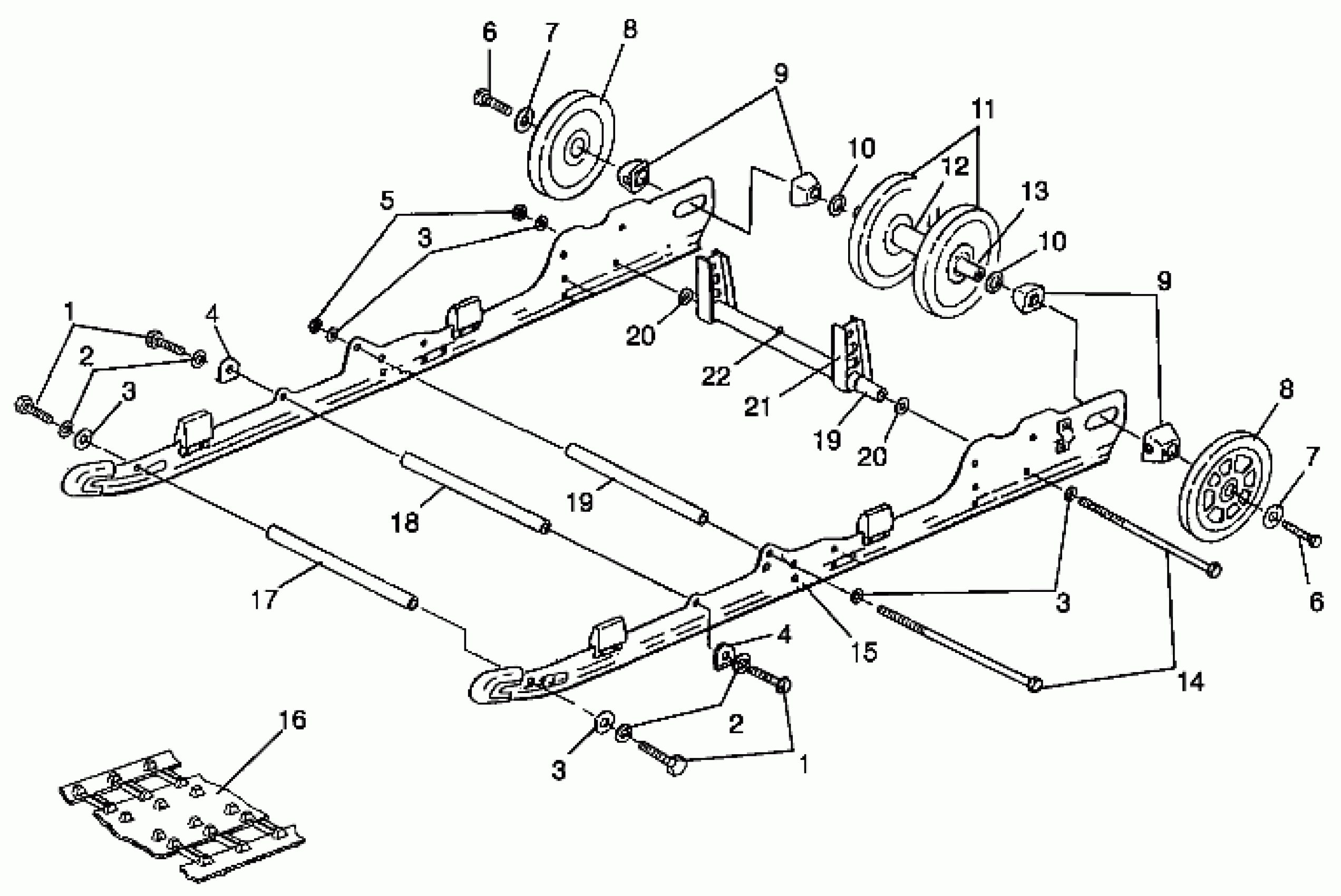

Polaris XLT SP - 0985776 SUSPENSION - 0985776 (4942164216b010) Diagram
#
Description
Price
1
SCREW,(10)
7517247
$3.19
1
SCREW,(10)
7517247
$3.19
2
WASHER(10)
7552603
$1.49
2
WASHER(10)
7552603
$1.49
3
WASHER(10)
7555806
$1.49
3
WASHER(10)
7555806
$1.49
3
WASHER(10)
7555806
$1.49
3
WASHER(10)
7555806
$1.49
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
5
NUT LOCK(10)
7542411
$3.19
6
BOLT(10)
7515526
$1.19
6
BOLT(10)
7515526
$1.19
7
WASHER(10) Substituted by 7556130
7571629
Unavailable
7
WASHER(10) Substituted by 7556130
7571629
Unavailable
8
WHEEL,IDLER
1594056-224
$48.56
8
WHEEL,IDLER
1594056-224
$48.56
9
SPACER-IDLER
5432535
$11.99
9
SPACER-IDLER
5432535
$11.99
10
BUSHING(10)
7555918
$1.59
10
BUSHING(10)
7555918
$1.59
11
WHEEL,IDLER,BLK(20MM)
1594056-070
$48.56
12
SPACER-IDLER, CENTER
5333283
$19.99
13
SHAFT,IDLER
5020744
$59.99
14
Screw
7517353
Unavailable
15
SLIDER,WHI.,(2)
5521452
$40.46
16
CLIP, TRACK(CAMOPLAST),(10)
5222839
Unavailable
16
CLIP,GUIDE,CAMOPLAST,(10)
5222840
Unavailable
16
TRACK,121"X15,.82 LUG
5411379
$749.99
17
SHAFT,PIVOT ARM
5020723
$29.99
18
SHAFT,PIVOT ARM
5020724
$29.99
19
SHAFT
5333404
$24.27
19
SHAFT
5333404
$24.27
20
WASHER(10)
7555893
$1.49
20
WASHER(10)
7555893
$1.49
21
ARM,R.PIVOT
1540982-067
$38.05
22
ZERK,FITTING,THREADED(10)
7080433
$1.49
