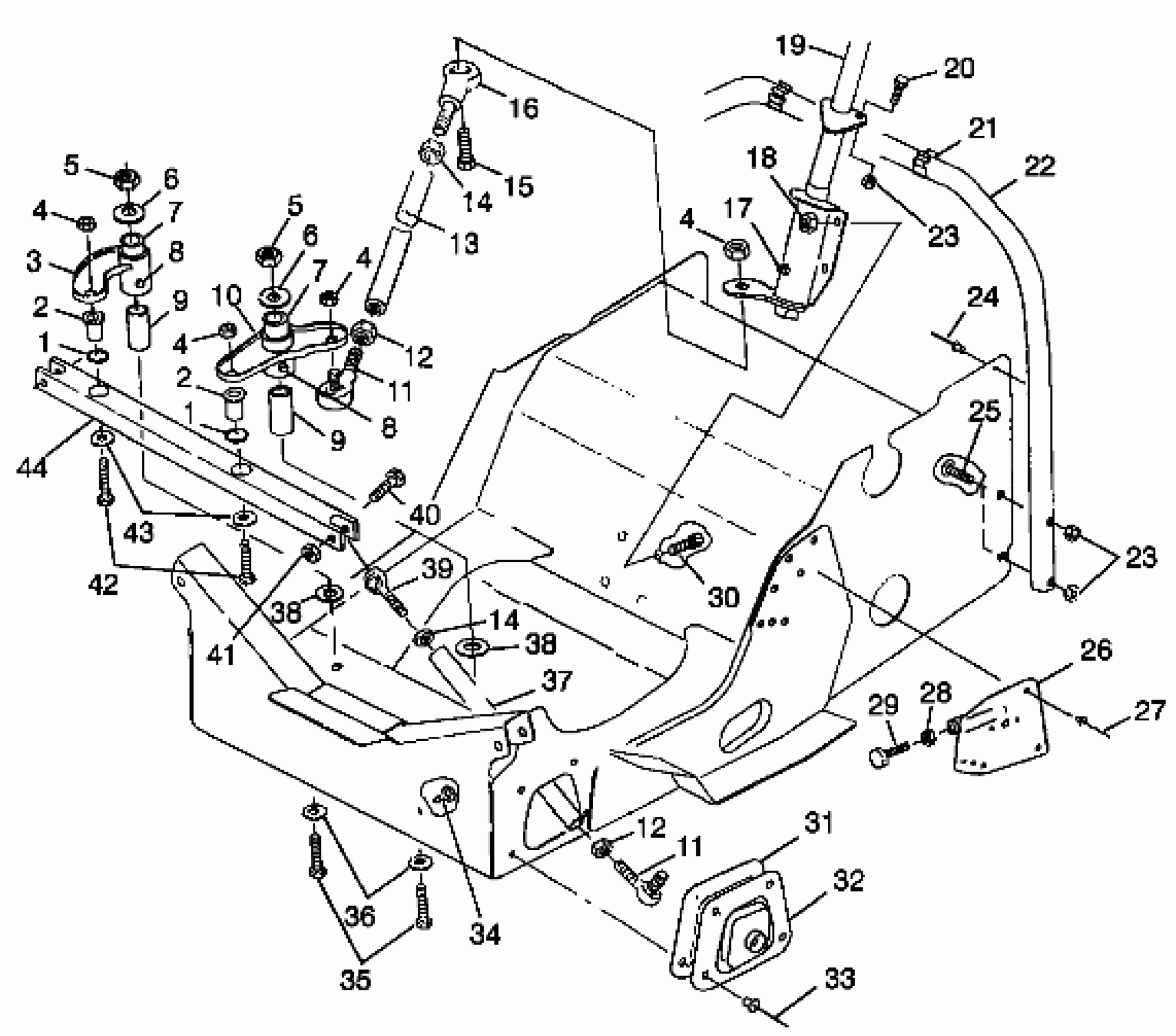

Polaris XLT SP - 0985776 STEERING - 0985776 (4942164216b002) Diagram
#
1
O-RING
5411220
$6.46
1
O-RING
5411220
$6.46
2
TUBE,SPACER
5010384
Unavailable
2
TUBE,SPACER
5010384
Unavailable
3
ARM, IDLER ASM (Incl. 7,8)
1822407
Unavailable
4
NUT LOCK(10)
7542403
$3.99
4
NUT LOCK(10)
7542403
$3.99
4
NUT LOCK(10)
7542403
$3.99
4
NUT LOCK(10)
7542403
$3.99
5
NUT, LOCK,(10)
7542503
$10.39
5
NUT, LOCK,(10)
7542503
$10.39
6
WASHER(10)
7555721
$1.49
6
WASHER(10)
7555721
$1.49
7
BUSHING
3563907
$3.99
7
BUSHING
3563907
$3.99
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
9
SPACER
5010385
Unavailable
9
SPACER
5010385
Unavailable
10
ARM,PITMAN ASM. (Incl. 7,8)
1822562
Unavailable
11
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
11
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
12
NUT HEX(10)
7542401
$2.39
12
NUT HEX(10)
7542401
$2.39
13
ROD,DRAGLINK
5333411
Unavailable
14
NUT
7542424
$1.49
14
NUT
7542424
$1.49
15
BOLT(10)
7512404
$3.99
16
ROD END, LH.
7060164
$48.56
17
FITTING-LUBRICATION 1/4-28
7080424
$4.79
18
NUT FLEX-LOC(10)
7542303
$6.39
19
POST,STEERING
1822432-067
Unavailable
20
SCREW
7517377
$4.79
21
CLIP(10)
7080278
$2.63
22
HOOP,STEERING
1012604-067
Unavailable
23
NUT, LOCK(10)
7542103
$5.59
23
NUT, LOCK(10)
7542103
$5.59
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
25
BOLT-CARRIAGE(10)
7512275
$3.99
26
STOP,TORQUE
1012446
Unavailable
27
RIVET(50) Substituted by 7661130
7661643
Unavailable
28
NUT,HEX(10)
7542414
$4.79
29
STOP,TORQUE,COARSE Substituted by 3110058
3110057
Unavailable
30
BOLT,(10)
7517428
$2.39
31
BOOT,TIEROD,MOD
5411249
Unavailable
32
PLATE,BOOT,MOD
5211796-067
$31.35
33
POP RIVET(50)
7621323
$1.49
34
CLIP, PLASTIC(10)
4020139
$4.79
35
BOLT ,(10)
7512564
$3.81
36
WASHER THRUST(10)
7558702
$1.59
37
TIEROD,BLK
5020857-067
Unavailable
38
WASHER,THRUST(10)
7555876
Unavailable
38
WASHER,THRUST(10)
7555876
Unavailable
39
ROD END,LH
7060166
$48.56
40
SCREW(10)
7515434
Unavailable
41
NUT LOCK(10)
7542411
$3.19
42
BOLT(10) Substituted by 7517583
7515491
Unavailable
43
WASHER(10)
7555893
$1.49
44
RACK ASM,STEERING
1822408
Unavailable
