RAIL MOUNTING (SUSPENSION) - 0985776 (4942164216b011)

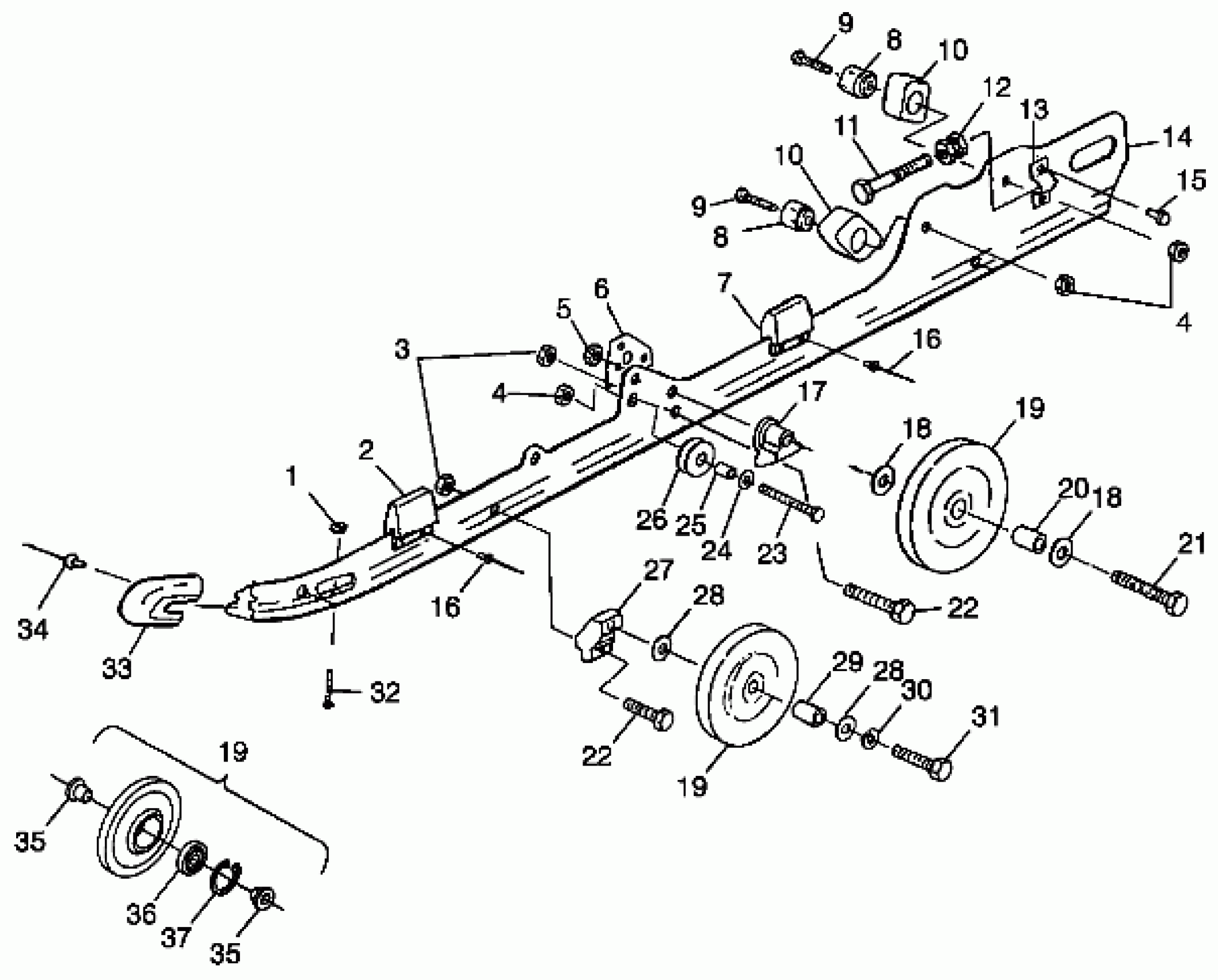

Polaris XLT SP - 0985776 RAIL MOUNTING (SUSPENSION) - 0985776 (4942164216b011) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
REINF., BUMPER
5222629
$13.75
2
BUMPER,SUSPENSION
5811097
Unavailable
3
NUT-LOCK(10)
7542439
$1.49
4
NUT LOCK(10)
7542411
$3.19
4
NUT LOCK(10)
7542411
$3.19
5
NUT, NYLOCK(10)
7542525
$4.79
6
BRKT,RAIL,REINF
5211790
Unavailable
7
REINF., BUMPER
5222629
$13.75
7
BUMPER, RAIL
5810554
$7.27
8
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
8
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
9
BOLT,(10)
7515545
$5.59
9
BOLT,(10)
7515545
$5.59
10
BUMPER,F.PIVOT ARM
5410925
$12.94
10
BUMPER,F.PIVOT ARM
5410925
$12.94
11
BOLT, ADJUSTER(10)
7515455
$29.99
12
NUT,TENSIONER ADJ.
5020943
$20.22
13
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
14
RAIL,LH,121,XTRA 10 (Incl. 2,7,10,33)
1541146
$288.99
14
RAIL,RH,121,XTRA 10 (Incl. 2,7,10,33)
1541147
Unavailable
15
RIVET,(50)
7621501
$2.39
16
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
16
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
17
SPACER
5630399
$11.99
18
WASHER, FLAT(10)
7555852
$2.39
18
WASHER, FLAT(10)
7555852
$2.39
19
WHEEL, IDLER (Incl. 35-37)
1543018
$56.65
19
WHEEL, IDLER (Incl. 35-37)
1543018
$56.65
19
WHEEL, IDLER (Incl. 35-37)
1543018
$56.65
20
SPACER, WHEEL
5333116
$7.99
21
BOLT(10)
7512538
$6.39
22
BOLT(10)
7512404
$3.99
22
BOLT(10)
7512404
$3.99
23
BOLT Substituted by 7515491
7515433
$1.59
24
WASHER(10)
7555743
Unavailable
25
Spacer
5332787
Unavailable
26
ROLLER,SPRING
5432170
Unavailable
27
BRACKET,BOGIE WHEEL
5130570
$48.56
28
WASHER(10)
7555804
$3.99
28
WASHER(10)
7555804
$3.99
29
SPACER
5332786
$7.99
30
LOCK WASHER(10)
7553201
$3.99
31
BOLT(10)
7512659
$7.99
32
BOLT(10)
7515175
$3.99
33
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
34
RIVET(50)
7621435
$1.49
35
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
35
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
36
BEARING (1 per Wheel)
3514303
$11.99
37
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
