FRONT SUSPENSION and SKI - 0985776 (4942164216b005)

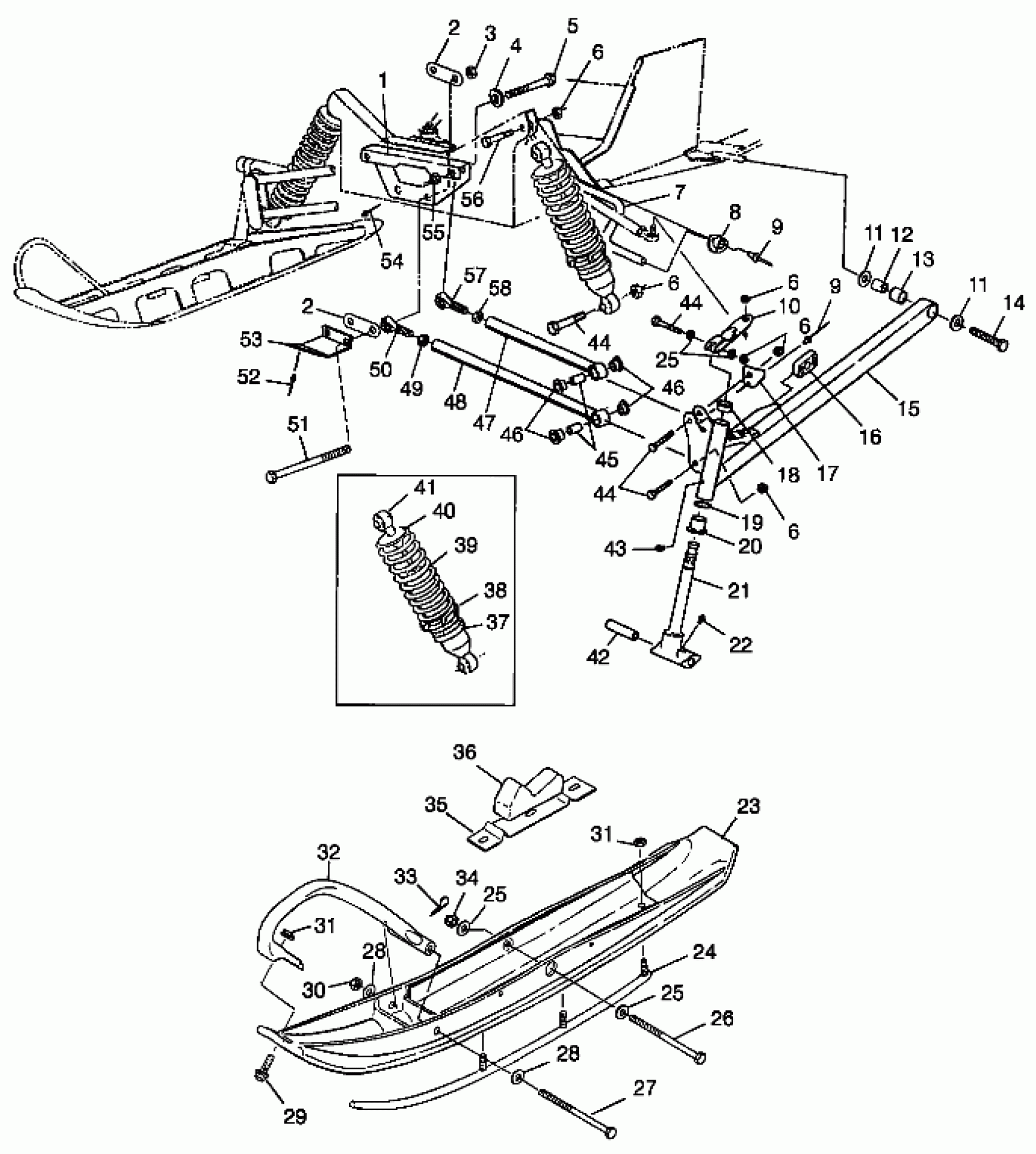

Polaris XLT SP - 0985776 FRONT SUSPENSION and SKI - 0985776 (4942164216b005) Diagram
#
1
BRACE,FR.BULKH.,BLK Substituted by 5242112-067
5241641-067
Unavailable
2
STRAP,SPACER BOTTOM
5211345
$12.99
2
STRAP,SPACER BOTTOM
5211345
$12.99
3
NUT FLEX,(10)
7542703
Unavailable
4
WASHER THRUST(10)
7558702
$1.59
5
BOLT(10)
7512551
Unavailable
6
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
6
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
6
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
6
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
6
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
7
BAR,SWAY,BLK,
5224742-067
Unavailable
8
BUSHING,SWAYBAR,5/8 Substituted by 5432038
5432885
$19.84
9
RIVET(50) Substituted by 7661130
7661643
Unavailable
9
RIVET(50) Substituted by 7661130
7661643
Unavailable
10
ARM,LH,STRG,BLK.
5241660-067
Unavailable
10
ARM,RH,STRG,BLK.
5241661-067
Unavailable
11
WASHER(10)
7555721
$1.49
11
WASHER(10)
7555721
$1.49
12
TUBE, BUSHING
5010310
$9.70
13
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
14
BOLT(10)
7512557
$7.60
15
ARM,TRLG,LH (Incl. 12,13)
1822449
Unavailable
15
ARM,TRLG,RH (Incl. 12,13)
1822450
Unavailable
16
SLIDE,SWAYBAR,5/8
5432331
$28.32
17
STOP,LH,STRG,BLK
5241777-067
$15.08
17
STOP,RH,STRG,BLK.
5241778-067
$18.23
18
BUSHING-FLANGE
3573909
$2.39
19
WASHER SPECIAL(10)
7556509
$1.59
20
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
21
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
22
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
23
SKI ASM,COMP,(PLASTIC) Substituted by 1820506-070
1820506
Unavailable
24
KIT,SKAG,7/16,3",COMP. (Pair)
2871815
Unavailable
25
WASHER(10) Substituted by 7555832
7555851
Unavailable
25
WASHER(10) Substituted by 7555832
7555851
Unavailable
25
WASHER(10) Substituted by 7555832
7555851
Unavailable
26
SCREW,(10)
7512596
$19.99
27
BOLT(10)
7515514
$7.19
28
WSHR-.813X.406X.105-Y
7555832
$2.39
28
WSHR-.813X.406X.105-Y
7555832
$2.39
29
BOLT(10)
7515307
$3.99
30
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
31
NUT LOCK(10)
7542321
$1.49
31
NUT LOCK(10)
7542321
$1.49
32
TOE,PLASTIC SKI Substituted by 5432209-070
5432209
$40.46
33
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
34
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
35
SUPPORT,SKI,RUBBER,BLK
5241912-067
Unavailable
36
STOP,RUBBER
5411094
Unavailable
37
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
38
RING,SPRING PRELOAD ADJ.
5431734
$52.60
39
SPRING,.306 COMP(LT),BLK.
7041405-067
Unavailable
40
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
41
SHOCK,GAS,IFS,SELECT
7041523
Unavailable
42
BUSHING,PIVOT,(10)
5010158
$19.99
43
ZERK,FITTING,THREADED(10)
7080433
$1.49
44
BOLT(10) Substituted by 7517583
7515491
Unavailable
44
BOLT(10) Substituted by 7517583
7515491
Unavailable
44
BOLT(10) Substituted by 7517583
7515491
Unavailable
45
BUSHING-RADIUS ROD,(10)
5010127
$7.99
46
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
46
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
47
ROD,RAD,UPPER,BLK
1822375-067
Unavailable
48
ROD,RAD,LOWER,BLK
1822377-067
Unavailable
49
NUT-JAM(10)
7542711
$2.39
50
ROD END,1/2 LINED Substituted by 7061071
7061011
$48.56
51
BOLT(10)
7512678
$19.99
52
RIVET(50)
7621452
$1.49
53
SUPPORT,PANBRAKE,LOW.
5240699-067
Unavailable
54
RIVET,INTERLOCK,B(50)
7661638
$1.49
55
NUT, LOCK,(10)
7542503
$10.39
56
BOLT(10) Substituted by 7515415
7515515
Unavailable
57
ROD,END,7/16 LINED Substituted by 7061049
7061010
Unavailable
58
NUT JAM(10)
7542520
$2.39
