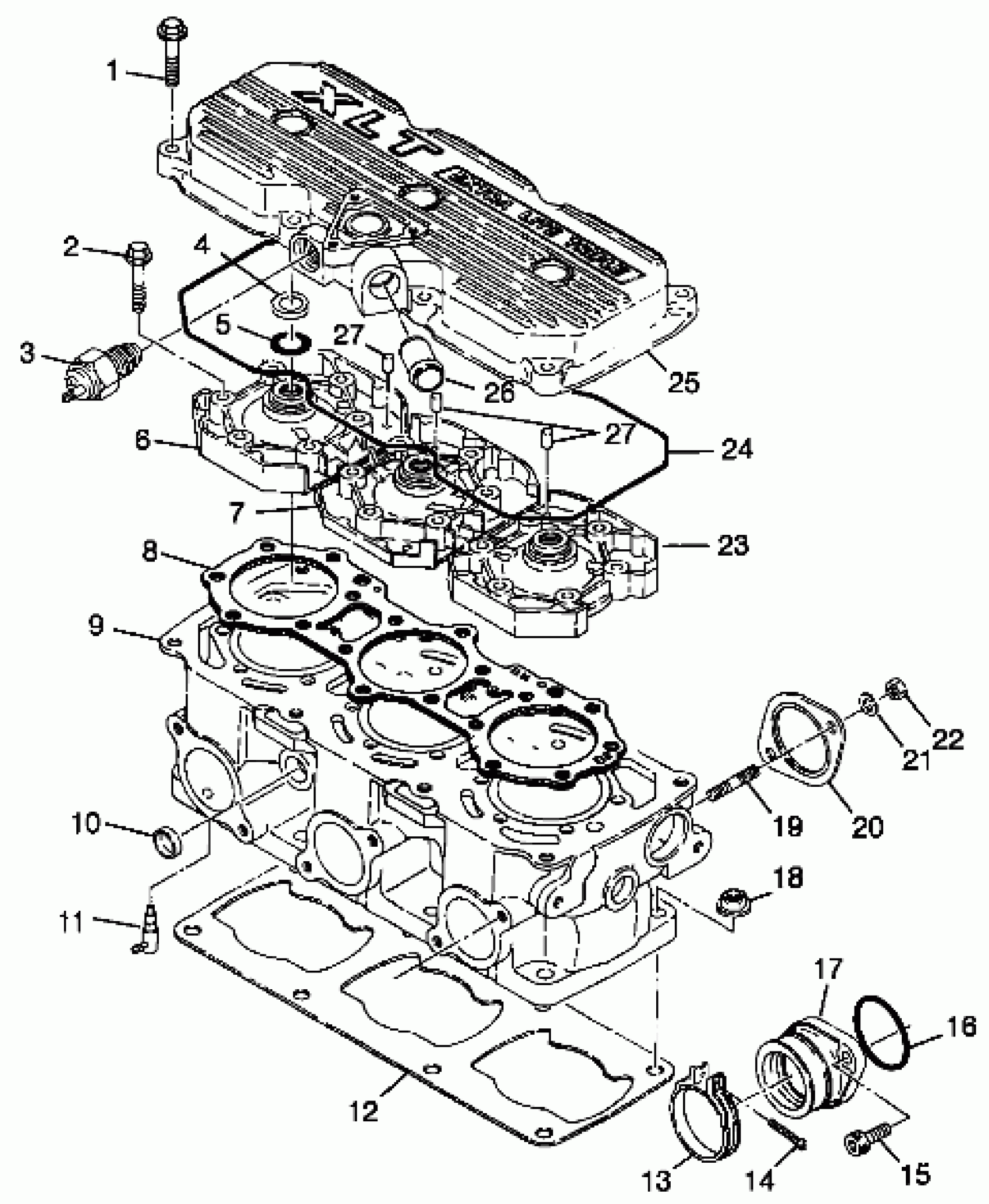

Polaris XLT SP - 0985776 CYLINDER - 0985776 (4942164216c008) Diagram
#
Description
Price
1
Bolt, Flange
3084437
Unavailable
2
BOLT, FLANGE ,(10)
3084435
Unavailable
3
SWITCH,THERMAL,IOS (1055 C)
3084284
Unavailable
4
SPACER
3084722
Unavailable
5
O RING
3085192
Unavailable
6
HEAD,CYL.#3,PTO (PTO)
3085419
$95.13
7
HEAD,CYL.#2,CTR. (Center)
3085418
Unavailable
8
GASKET,HEAD
3085613
Unavailable
9
CYLINDER (Incl. 10,19)
3085612
Unavailable
10
PLUG
3084428
$3.51
11
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
12
GASKET, CYLINDER
3084593
Unavailable
13
BAND ASM. (Incl. 14)
3083166
$19.84
14
SCREW,(10)
3081497
$2.39
15
Bolt, Allen
3081330
$3.99
16
O-RING
3085619
$20.22
17
ADAPTER, CARB. (Incl. 16)
3084673
Unavailable
18
NUT-FLANGE(10)
3082911
$1.99
19
STUD,(10)
3085326
Unavailable
20
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
21
WASHER LOCK ,(10)
3080530
$3.19
22
NUT(10)
3080285
Unavailable
23
HEAD,CYL.#1,MAG. (MAG)
3085417
Unavailable
24
O-RING, (HEADCOVER)
3084434
Unavailable
25
COVER,HEAD (Incl. 26)
3085415
Unavailable
26
Pipe, Water
3083452
Unavailable
27
PIN, DOWEL
3084721
$4.79
27
PIN, DOWEL
3084721
$4.79
