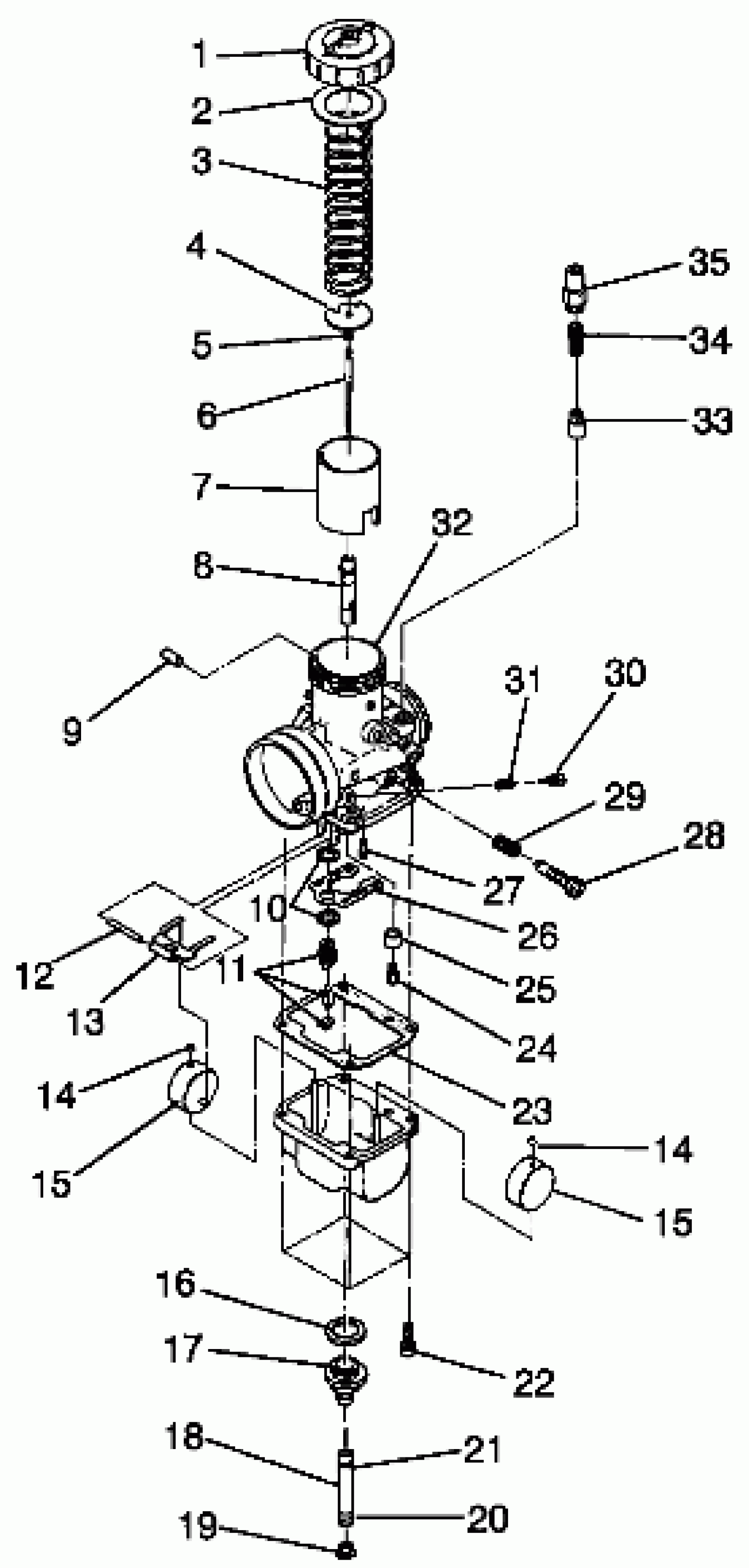

Polaris XLT SP - 0985776 CARBURETOR - 0985776 (4942164216c011) Diagram
#
Description
Price
1
TOP (Incl. 2)
3130061
Unavailable
2
GASKET
-------
Unavailable
3
SPRING,THROTTLE
3130444
Unavailable
4
PLATE, THROTTLE
3130054
$6.46
5
E-RING,(10)
3130508
$6.46
6
JET NEEDLE (6DH7-3)
3130329
Unavailable
7
VALVE,THROTTLE,2.0 (2.0)
3130471
Unavailable
8
JET,NEEDLE,(Q-0) (Q-2) 247
3130414
Unavailable
9
CAP
3130479
$14.56
10
WASHER(10)
3130047
$4.84
11
VALVE ASM,NEEDLE (1.5)
3130643
$56.65
12
PIN, FLOAT
3130361
$8.89
13
ARM,FLOAT
3130048
Unavailable
14
CAP,(10)
3130237
$4.03
14
CAP,(10)
3130237
$4.03
15
FLOAT ASM
3130021
$40.46
15
FLOAT ASM
3130021
$40.46
16
O RING
3130239
Unavailable
17
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
18
FUEL LINE, 5 FT.
8450045-153
$99.99
19
PLUG,TRAP
5431893
$12.94
20
CLAMP,HOSE(10) (Green)
7080544
Unavailable
21
CLAMP,SPRING,(10) (Yellow)
7080534
$1.59
22
SCREW
3130056
$3.19
23
GASKET,FLOAT CHAMBER
3130236
$12.13
24
JET,MAIN,HX.HD#330(10) (#330)
3130136
$8.99
25
RING,CARB
3130232
Unavailable
26
PLATE
3130243
Unavailable
27
JET,PILOT,#35(10) (#35)
3130066
$8.89
28
SCREW,THROTTLE STOP
3130009
$19.99
29
SPRING,THROTTLE ADJ.
3130010
$8.89
30
SCREW,AIR
3130011
$19.99
31
SPRING,AIR ADJUST
3130012
$8.89
32
CARBURETOR ASM. (Incl. 1-17,22-35)
3130750
$310.33
33
PLUNGER ASM, STARTER
3130328
$32.37
34
SPRING,PLUNGER
3130006
$8.89
35
HOLDER,GUIDE
3130199
$28.32
